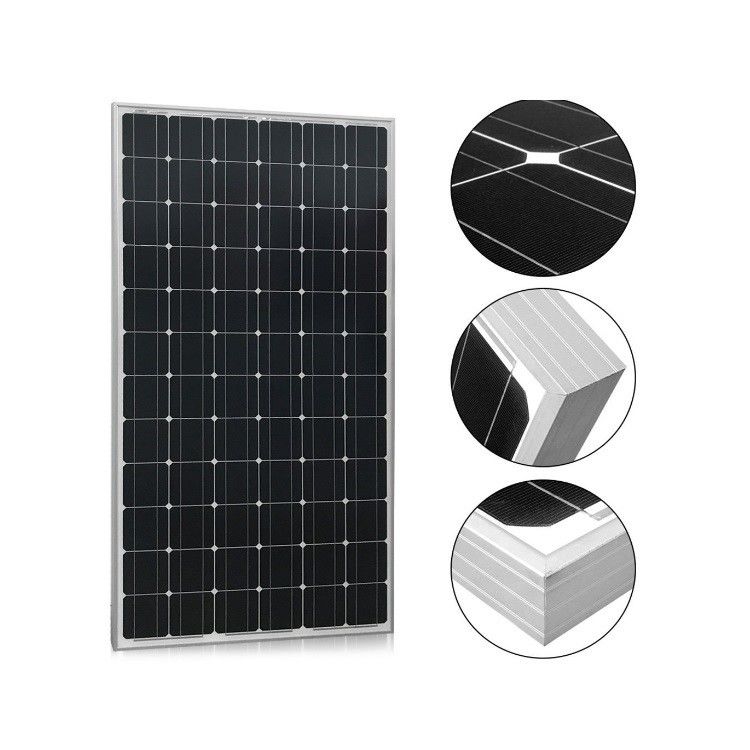

High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel

Name: High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: M150W
Price: 500.56 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SSTH

Model Number: M150W

Payment & Shipping Terms

Minimum Order Quantity: 1000 watts

Price: CN¥2.56/watts 1000-99999 watts

Packaging Details: Mono solar panel home
Product size: 1480*680*35mm
Carton size: 150*9.5*70cm
Number: 2pcs/carton
G.W.: 23KG/carton

Supply Ability: 2000000 Watt/Watts per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Solar System Panel 100w, 500 watt mono solar panel, High Efficiency Solar System Panel


Cell Size:	156.75mmx156.75mm	Type:	Glass, Mono 150w Solar Panel
Panel Dimensions:	148068035mm	Panel Efficiency:	15.1%
Power:	150W	Max Power Voltage(Vm):	18V
Frame:	Anodized Aluminium Alloy	Cell Type:	Mono 156*156mm
Cell Number:	4*9	Back Sheet:	TPT
Junction Box:	Pass The TUV Certificate	Application:	Home Solar Power Systems
Cable Connector Type:	Pass The TUV Certificate	Certificate:	CE, TUV
Warranty:	25year	Port:	Shenzhen, Shekou Or Yantian

Cell Size:	156.75mmx156.75mm
Type:	Glass, Mono 150w Solar Panel
Panel Dimensions:	148068035mm
Panel Efficiency:	15.1%
Power:	150W
Max Power Voltage(Vm):	18V
Frame:	Anodized Aluminium Alloy
Cell Type:	Mono 156*156mm
Cell Number:	4*9
Back Sheet:	TPT
Junction Box:	Pass The TUV Certificate
Application:	Home Solar Power Systems
Cable Connector Type:	Pass The TUV Certificate
Certificate:	CE, TUV
Warranty:	25year
Port:	Shenzhen, Shekou Or Yantian

High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel

High Efficiency Solar Energy System 100w 150w 160w 200w 250w 300w 350w 500 Watt Mono Solar Panel

Products Description

High efficiency mono Solar power panels 50w 100w 150w 160w 200w 250w 300w 350w 500 watt Power System Home mono solar cell panel

1. Multicrystalline modules designed for residential commercial andutility applications, rooftop or ground mount 2. Electric Current Classification. System output maximized by reducing mismatch losses upto 2% with modules sorted and package by amperage 3. Anti-reflective and self-cleaning surface reduces powerloss from dirt and dust 4. PID-Free. Module without potential induced degradation even underhigh temperature and high relative humidity condition. 5. Excellent mechanical load resistance:Certified to withstandhigh wind loads (2400Pa) and snow loads (5400Pa) 6. Passed Ammonia Gas and Salt Mist Corrosion Resistance TestTested and approved by TUV according IEC62716 Draft Cand FprEN 617o1 Ed.2

Specifications

Product name	150W mono solar panel
Type	Mono
Size	148068035MM
Panel Efficiency	15.1%
Certificate	TUV
Warranty	25 YEARS
Solar cell	36(4*9)
Power	150W
Vmp	18V
Imp	8.28A
Voc	21.6V
Isc	8.95A
Maximum System Voltage	1000V
Cell Type	Mono156*156mm
Backing	TPT

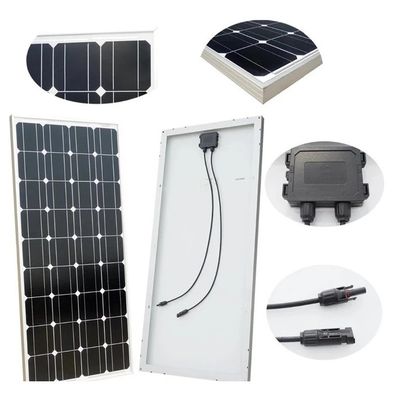

Details Images

Our advantage

1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest
environmental conditions
5. Outstanding electrical performance under high temperature and low irradiance conditons
Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems

Product packaging
