Monocrystalline Solar Power Panel 100w Home Solar Panel With Aluminium Alloy Frame

Name: Monocrystalline Solar Power Panel 100w Home Solar Panel With Aluminium Alloy Frame
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: M150W
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SSTH

Model Number: M150W

Payment & Shipping Terms

Price: CN¥533.63/watts 1-99 watts

Packaging Details: Mono solar panel home
Product size: 1320*530*25mm
Carton size: 122*20*56cm
Number: 5pcs/carton
G.W.: 38KG/carton

Supply Ability: 2000000 Watt/Watts per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                monocrystalline Solar Power Panel 100w, 100w Home Solar Panel, Aluminium Alloy Frame Home Solar Panel


Cell Size:	156.75mmx156.75mm	Type:	Glass, Mono 100w Solar Panel
Panel Dimensions:	148068035mm, 132053025mm	Panel Efficiency:	15.1%
Power:	100W	Max Power Voltage(Vm):	18V
Frame:	Anodized Aluminium Alloy	Cell Type:	Mono 125*125mm
Cell Number:	3*8	Back Sheet:	TPT
Junction Box:	Pass The TUV CE Certificate	Application:	Home Solar Power Systems
Certificate:	CE, TUV	Warranty:	25year
Port:	Shenzhen, Shekou Or Yantian

Cell Size:	156.75mmx156.75mm
Type:	Glass, Mono 100w Solar Panel
Panel Dimensions:	148068035mm, 132053025mm
Panel Efficiency:	15.1%
Power:	100W
Max Power Voltage(Vm):	18V
Frame:	Anodized Aluminium Alloy
Cell Type:	Mono 125*125mm
Cell Number:	3*8
Back Sheet:	TPT
Junction Box:	Pass The TUV CE Certificate
Application:	Home Solar Power Systems
Certificate:	CE, TUV
Warranty:	25year
Port:	Shenzhen, Shekou Or Yantian

Monocrystalline Solar Power Panel 100w Home Solar Panel With Aluminium Alloy Frame

Hot sale manufacture Mono monocrystalline Solar Power System 100w Home Solar Panel

Products Description

Hot sale manufacture Mono monocrystalline Solar Power System 100w Home Solar Panel

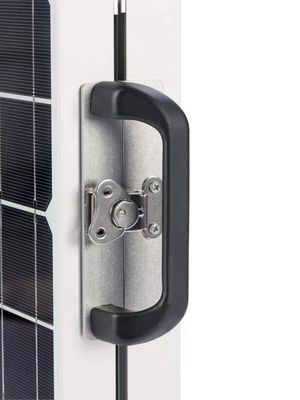

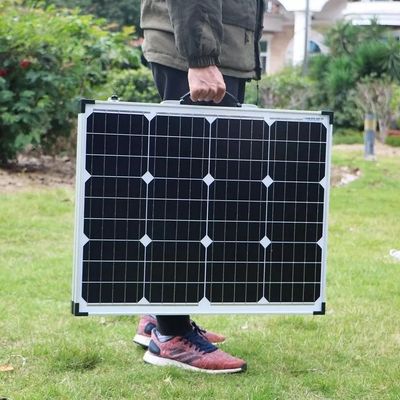

1. WITH HANDLE, CONVENIENT TO CARRY.Ideal for hiking, camping, ,caravan, RV, boat, Green house solar panel system, solar pump watering system ,off-grid solar panel system etc.

2. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.

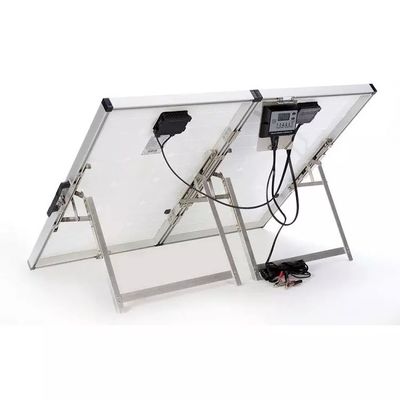

3. EASY OPERATION: open up the folding solar panel, battery clips allows for simple connection to the battery,pre-installed CONTROLLER and PRE-WIRED for 12V battery charging.

4. High Solar Cell efficiency: Mono-crystalline 21. 0%,Polycrystalline 17. 9%.

5. Perfect after-sales service, any problems can be contacted at any time, quick and friendly solution.

Specifications

Product name	100W mono solar panel
Type	Mono
Size	132053025MM
Panel Efficiency	21%
Certificate	TUV
Warranty	25 YEARS
Solar cell	24(3*8)
Power	100W
Vmp	18V
Imp	5.52A
Voc	21.6V
Isc	5.96A
Maximum System Voltage	1000V
Cell Type	Mono125*125mm
Backing	TPT

Details Images

Our advantage
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest
environmental conditions
5. Outstanding electrical performance under high temperature and low irradiance conditons

Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems

Product packaging
