Bidirectional Inverter for Solar Energy Storage | How It Works & Applications

Brand Name:	SZSSTH/OEM
Model Number:	RA
MOQ:	5 pieces
Price:	$175.00-$193.00/pieces
Packaging Details:	carton box
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

EN RA 2KW 3KW Bidirectional...1).pdf

Type:

DC/AC Inverters

Output Type:

DUAL

Size:

241*345*121 Mm

Charging Current:

100A (Adjustable)

Output Waveform:

Prue Sine Wave

Frequency:

50/60 HZ

Operating Temperature:

-10℃~+45℃

Warranty:

12 Months

Supply Ability:

100000pcs/month

Highlight:

solar energy bidirectional inverter

bidirectional inverter for energy storage

bidirectional inverter applications

Product Description

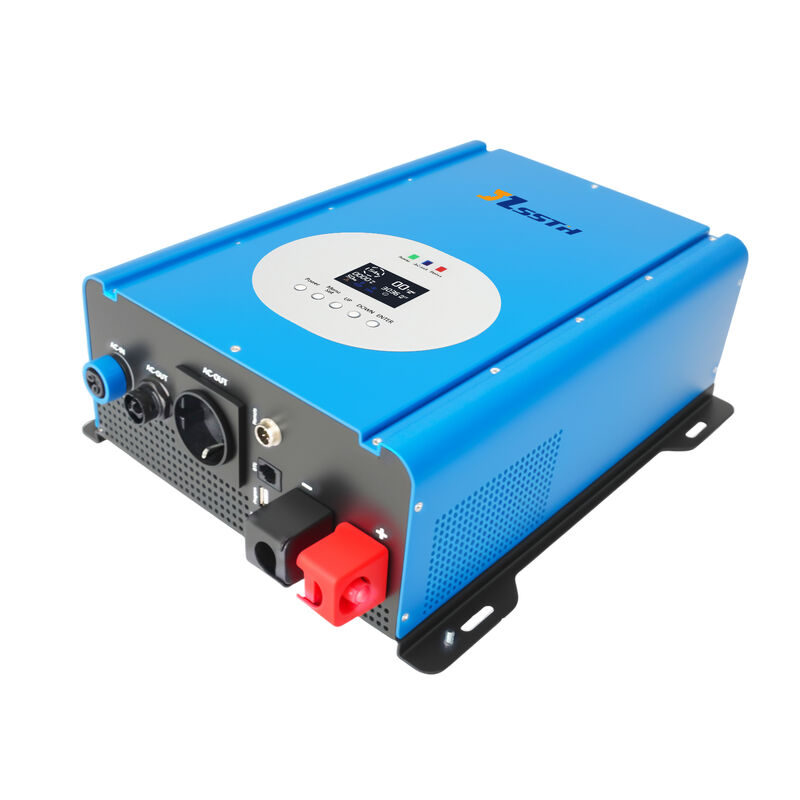

RA Series Bidirectional Inverter – Power Your World with Efficiency & Reliability

Product Overview

The RA Series Bidirectional Inverter is a high-performance power conversion solution designed for seamless energy management. With models ranging from 2000W to 3000W, it supports 12V/24V DC to 220V AC (or 110V AC) bidirectional conversion, enabling:

AC Charging: Charge batteries (lead-acid/LiFePO4/NCM) at up to 100A.
DC Inversion: Deliver stable 2000W–3000W AC output (peak power: 4000W–6000W).
Bypass Mode: Simultaneous charging and discharging (1400W + 1800W).

Key Features

✔ High Efficiency

≥91% efficiency (AC-DC), 92% (DC-AC).
Low no-load consumption (≤20W).

✔ Advanced Protection

Overload/short-circuit/over-temperature protection.
Auto-recovery for undervoltage (10.5V–16V DC input range).

✔ Smart Control

Adjustable parameters (voltage, frequency, charging current) via LCD panel.
Supports CAN/485 communication for remote monitoring.

✔ Robust Design

Air-cooled with wide operating temperature (-10°C to +45°C).
Compact size (241×345×121mm), iron casing.

Applications

Off-grid solar systems
Emergency backup power
Mobile/RV power solutions

Safety Certified: Complies with IEC62388 and GB4943 standards.

Learn More: [Contact Us/Download Full Specs]

Electrical specifications
Model
Applicable Battery Type		Lead acid/LiFePO4/NCM battery
Charging Method		Constant current/constant voltage (CC/CV)
Cooling Method		Air Cooling
Charge
Input	Voltage Range	180~264VAC
	Frequency Range	47-63HZ
	Maximum Effciency	≥91% @220VAC
	Maximum Current	15Amax
	PF value	≥0.95
	Surge Current	＜60ACold Start
Output	Rated Voltage	13.2V (maximum charging voltage14.8V)
	Rated Current	100A
	Maximum Power	1400W
	Voltage Accuracy	±0.8V
	Current Accuracy	≤8%
	Load Regulation	≤5%
	Dynamic Load Regulation	≤5%
	Battery Charging Voltage	10.5V-14.5V

Inverter
Input	Voltage Range	10.5~16V DC
	Maxmum Effciency	92%
	Maximum Current	180A 12.5V/280A 12.5VDC
Output	Rated Voltage	220Vac @≥12.5 VDC
	Rated Current	13.64A @≥12.5VDC
	Output Frequency	50Hz/60Hz
	Maximum Power	2 000W (peak power4000W) @≥12VDC
	Maximum Power	3000W (peak power6000W) @≥12VDC
	Power Factor	≥0.95
	THD	≤3% (resistive load)
	Bypass Power	1800W.MAX(NA)
	Charge And Discharge At The Same Time	Charge1400W+Bypass1800W(NA)
	Bypass Inverter Switching Time	≤30 ms (NA)
Others	Shell Material	Iron
	Reference Weight	6.1KG
	Color	/
	Reference Size	241 * 345 * 121 mm
	Reference Packaging	/
