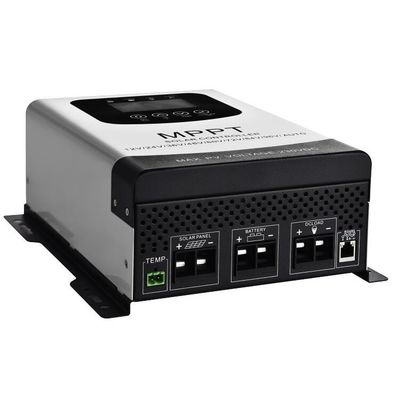

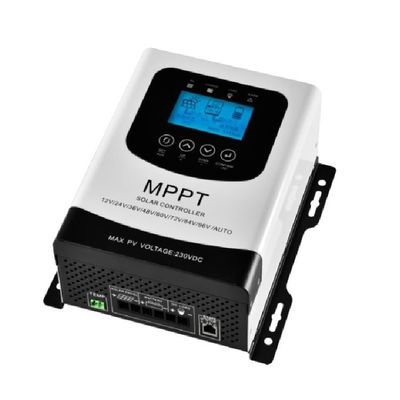

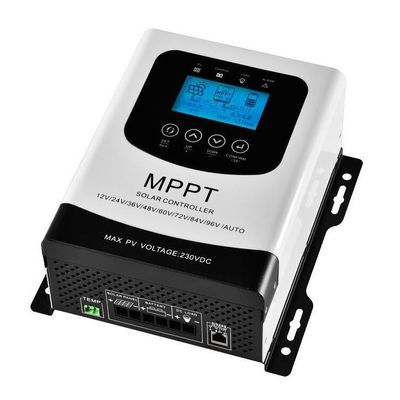

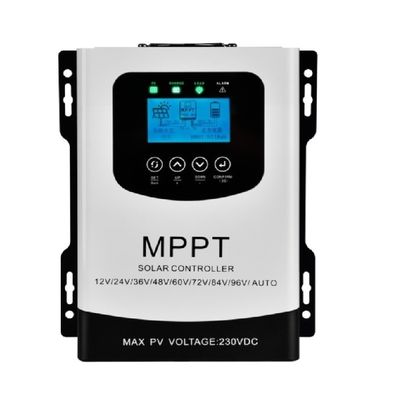

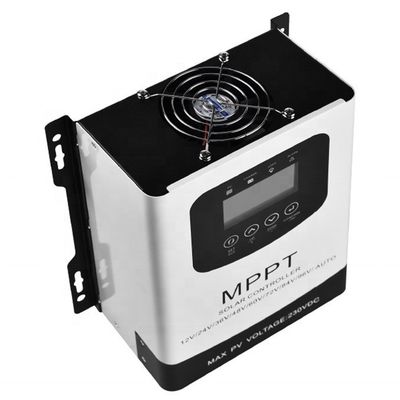

30A 40A 50A 60A MPPT Solar Charge Controller for 12V 24V 36V 48V 96V Batteries Maximum Power Tracking and Performance

Brand Name:	SZSSTH
Model Number:	SSTH-40A
Price:	CN¥914.42/pieces 1-49 pieces
Supply Ability:	50000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

MPPT

Application:

Charger Controller, Solar System

Work Time (h):

24 Hours

Max PV Power:

4800W

Max PV Voltage:

230V

Product Name:

40A MPPT Solar Charge Controller

Rated Voltage:

12v 24v 36v 48v 60v 72v 84v 96v Auto Work

MPPT Efficiency:

97%

Maximum Current:

40A

Battery Type:

Lead Acid/Gel/LifePo 4/Li-ion/USER

Charge Mode:

MPPT Automatic Maximum Power Tracking

Display:

LCD Screen

Size:

202*215*100mm

Weight:

1.9kg

Certificate:

Warranty:

1 Year

Port:

Shenzhen

Packaging Details:

Packing: Gift Box
PCS/CTN :8pcs
Carton Dimension 57.5*48*29CM
Unit Weight: 1.9kg
Net weight (N.W) : 15.5kg
Gross weight (G.W): 18.8kg

Highlight:

30A MPPT solar charge controller

60A MPPT controller for 48V batteries

MPPT solar controller with maximum power tracking

Product Description

Best selling model 12v 24v 36v 48v 96v solar mppt controller batteries MPPT charger 30A 40a 50a 60a mppt solar charge controller

Product Features:

Innovative maximum power point tracking technology can significantly improve the energy utilization rate of the solar system, with a conversion efficiency of up to 97%;
Quickly scan the entire I-V curve, and efficiently track the maximum power point;
Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series are optional;
With automatic protection of overcharge, overdischarge, overload and short circuit;
RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller;

Model	30A /40A	50A /60A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge.
Lead Acid	(12V/24V/36V/48V/96V Auto +Adjustable 12V/24V/36V/48V/60V/72V/84V/96V)
Gel	12V/24V/36V/48V/60V/72V/84V/96V
LifePo 4	12V/24V/36V/48V/60V/72V/84V/96V
Li-ion	Single voltage 3.7 * number of strings (2 strings -45 strings adjustable)
USER	Adjustable limit voltage for equal charge, float charge and DC discharge: 8V -170V
With lithium battery activation function	With photovoltaic input, there is charging voltage (activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage	0--230V
The charging current is adjustable	0—30A 0—40A	0—30A 0—40A
Start charging	PV voltage is greater than + 3V of battery voltage (low current charging on rainy days)
Direct charging current output function	DC continuous output 25A	DC continuous output 60A
Temperature compensation	According to the temperature of the battery, the charging voltage and current are automatically compensated to prolong the battery life

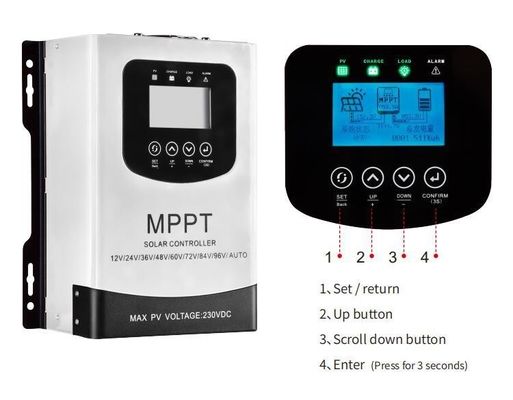

Display communication	LCD display with touch button: (generating capacity / photovoltaic voltage / battery voltage / charging current / power / operation status) Chinese and English display Settings: (battery type, charging current, return to factory)
Working environment temperature	-20℃ ~ 40℃
Protection level	IP 21
Altitude	0 ~ 3000m
Product size	202x215x100mm	218x265x100mm
N.W. / G.W.	1.9KG/2.5KG	2.6KG/3.5KG

Detailed Images

Product packaging

Product name	40A MPPT solar charge controller
Packing	Box
PCS/CTN	8pcs
Carton Dimension	575480290mm
Unit Weight	1.9KG
Net weight (N.W)	15.5KG
Gross weight(G.W)	18.8KG
