products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Solar Charge Controller
Created with Pixso.

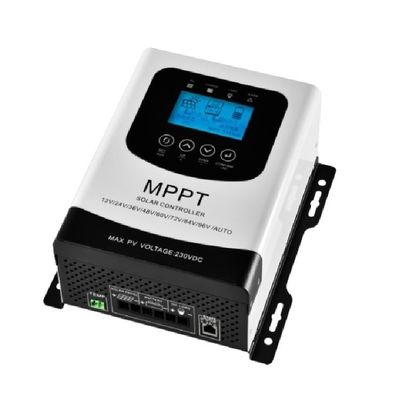

Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A

Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A

Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A

Brand Name: SZSSTH
Model Number: SSTH-60A
Price: CN¥1,024.15/pieces 1-49 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Type:
MPPT
Application:
Charger Controller, Solar System
Work Time (h):
24 Hours
Max PV Power:
5400W
Max PV Voltage:
230V
Product Name:
60A MPPT Solar Charge Controller
Rated Voltage:
12v 24v 36v 48v 60v 72v 84v 96v Auto Work
MPPT Efficiency:
97%
Maximum Current:
60A
Battery Type:
Lead Acid/Gel/LifePo 4/Li-ion/USER
Charge Mode:
MPPT Automatic Maximum Power Tracking
Display:
LCD Screen
Size:
218*265*100mm
Weight:
2.6kg
Certificate:
CE
Warranty:
1 Year
Packaging Details:
Packing: Gift Box
PCS/CTN :4pcs
Carton Dimension 50*34*27.2CM
Unit Weight: 2.6kg
Net weight (N.W) : 10.5kg
Gross weight (G.W): 12.8kg
Highlight:

30A MPPT solar charge controller

,

wide voltage solar controller for LifePo4

,

96V MPPT controller with 230V PV

Product Description

Wide voltage 12v 24v 36v 48v 72v 96v 30A 40A 50A 60A solar mppt controller for LifePo4 batteries MPPT solar charger controller

Product Description
Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 0

Product Features:

  • Innovative maximum power point tracking technology can significantly improve the energy utilization rate of the solar system, with a conversion efficiency of up to 97%;
  • Quickly scan the entire I-V curve, and efficiently track the maximum power point;
  • Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series are optional;
  • With automatic protection of overcharge, overdischarge, overload and short circuit;
  • RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller;
Detailed Images

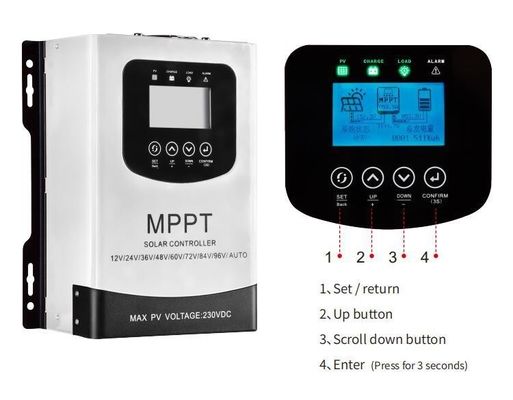

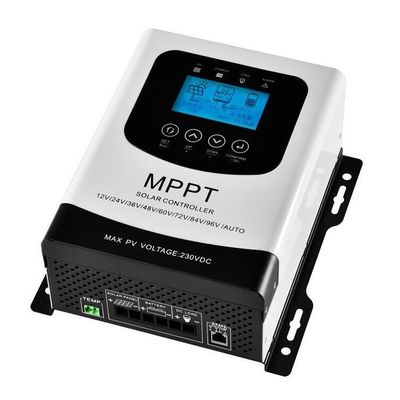

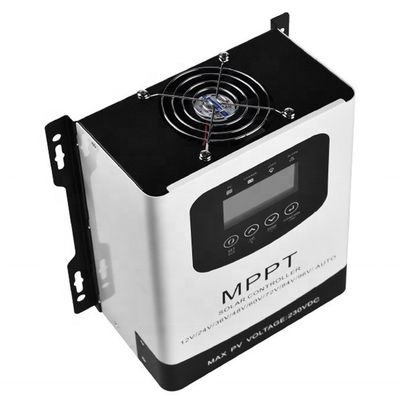

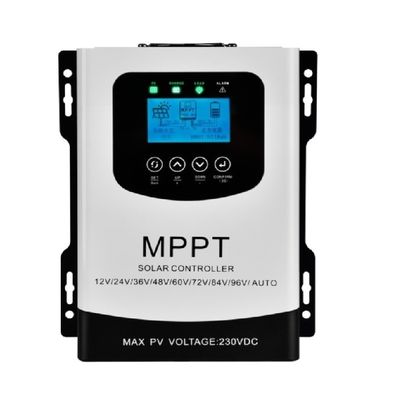

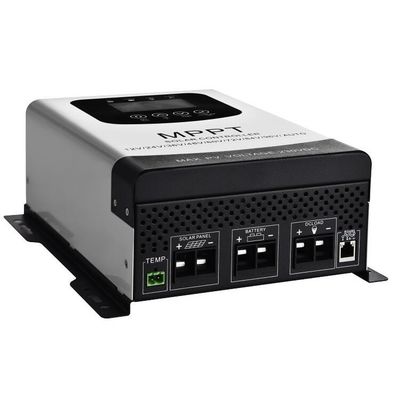

Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 1 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 2 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 3 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 4 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 5 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 6 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 7 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 8 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 9 Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 10
Product packaging
Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 11
Product name 60A MPPT solar charge controller
Packing Box
PCS/CTN 4pcs
Carton Dimension 50X34X27.2CM
Unit Weight 2.6KG
Net weight (N.W) 10.5KG
Gross weight(G.W) 12.8KG
Product Paramenters
Wide Voltage 12V 24V 36V 48V 72V 96V MPPT Solar Charge Controller for LifePo4 Batteries Max PV Voltage 230V 30A 40A 50A 60A 12
