Solar Charge Controller
Created with Pixso.

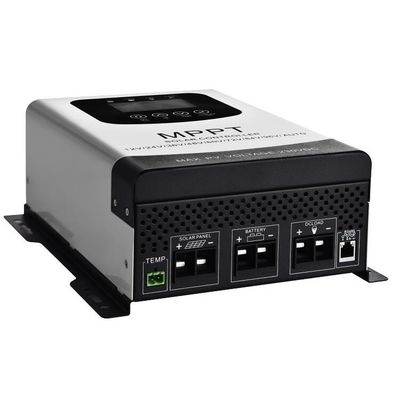

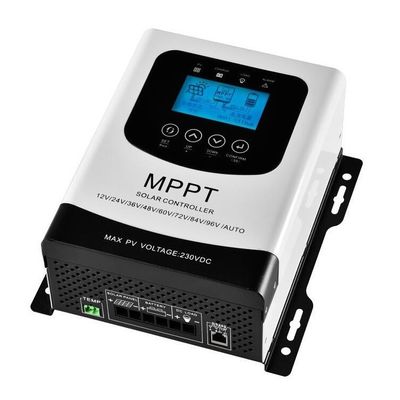

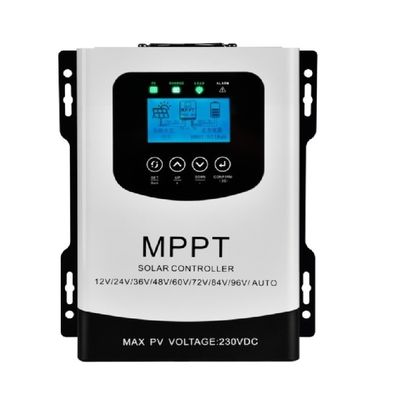

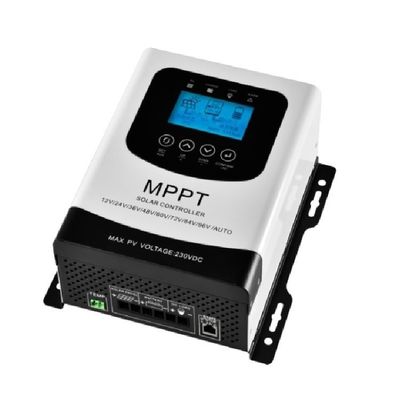

All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller

All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller

All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller

Brand Name: SZSSTH
Model Number: HV 60A, MPPT
Price: CN¥746.17-1,046.09/pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Type:
MPPT
Application:
Charger Controller
Work Time (h):
24 Hours
Max PV Power:
Auto Tracking The Max Power
Max PV Voltage:
230V
Product Name:
Solar Panels Charging Controllers 96v 60a Mppt Solar Charge Controller
Rated Voltage:
12V 24V 36V 48V 60V 72V 84V 96V Auto Work
Maximum Current:
60A
MPPT Efficiency:
97%
Charging Mode:
MPPT Automatic Max Power Tracking
PV Max Open Circuit Input Voltage:
0-230V
Display:
LCD Display With Touch Button
Protection Level:
IP 21
Altitude:
0- 3000m
Certificate:
CE
Warranty:
1 Year
Packaging Details:
1pcs/carton
Highlight:

MPPT solar charge controller 96V 60A

,

solar panel charging controller 8V-170V

,

MPPT solar controller 30A 50A

Product Description
Product Description

all battery workable 8V to 170v 30a 40a 50a solar panels charging controllers 96v 60a mppt solar charge controller

  • Automatically adjust battery charging and discharging, battery voltage from 12V to 96V
  • Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery;
  • Its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.
  • MPPT solar charge controller have comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.
Product Paramenters
All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 0 All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 1

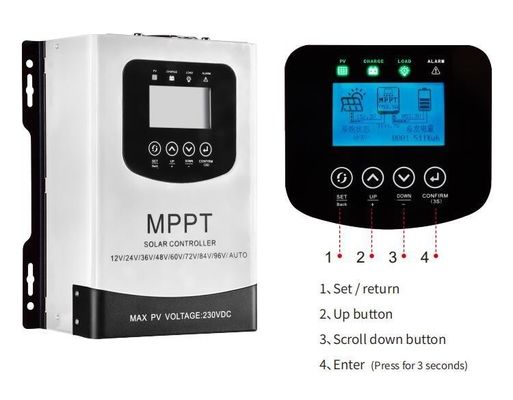

Detailed Images
All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 2 All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 3 All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 4 All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 5 All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 6 All Battery Workable 8V-170V 30A 40A 50A Solar Panels Charging Controllers with MPPT 96V 60A Solar Charge Controller 7
Product packaging
Product type 50A solar charge controller
Product size 218*265*100mm
Net weight 2.6 KG
Box Size 325*245*128mm
Box gross weight 3 KG
Qty / Carton 4 Box
Carton size 500*340*272mm
Carton gross weight 12.8 KG
