Brand Name: | SZSSTH |
Model Number: | UD1521AP |
MOQ: | 1pieces |
Price: | $89/pieces |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 100000pcs/month |

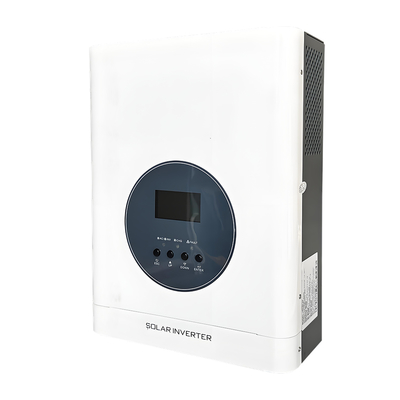

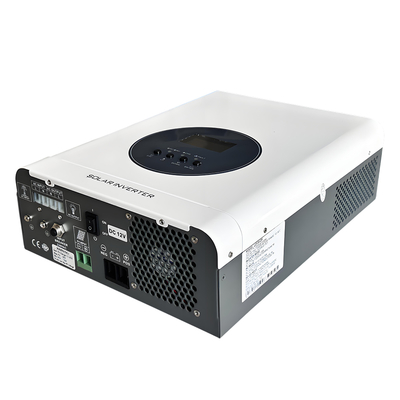

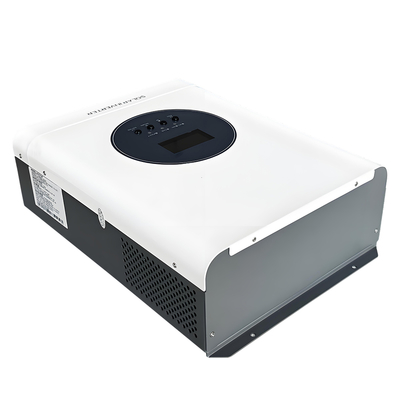

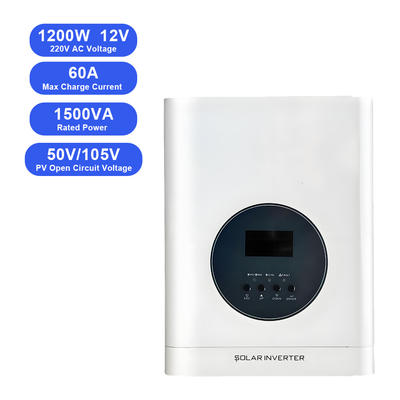

This high-capacity 1.2KW Hybrid Solar Inverter is a versatile and powerful all-in-one solution designed for robust off-grid solar systems and backup power applications. It seamlessly integrates a pure sine wave inverter, a high-current MPPT solar charge controller, and an AC battery charger into a single, compact unit. By automatically switching between solar power, utility AC, and battery storage, it ensures an uninterrupted and clean power supply for a wide range of appliances, making it perfect for homes, vans, and remote installations.
model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UO5048AM | UD6348AM | U012548AM | UD10048AM |
---|---|---|---|---|---|---|---|---|---|
Ac input voltage | 220VAC(standard) | 220VAC(standard) | |||||||
Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model) 110V:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
||||||||
Input frequency | 50/60Hz±5% | 50/60Hz±5% | |||||||
Output power | 1000VA 800W |
1500VA 1200W |
1500VA 1200W |
2000VA 1600W |
3000VA 2400W |
5000VA 4000W |
6300VA 5000W |
10000VA 8000W |
12500VA 10000W |
AC model output Voltage | The output voltage under the mains is thesame as the input voltage | ||||||||
Battery model output voltage | 220VAC+10%(Custom110VAC+10%) | ||||||||
Battery model output frequency | 50HZ or 60HZ±1% | ||||||||
Battery model output wave | Pure sine wave | ||||||||
Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery | ||||||||
Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
Maximum PV array power | 12V:PWM 800W 24V:PWM 1600W |
24V:MPPT 3200W 48V:MPPT 6400W |
|||||||
Solar input voltage range | 12V:PWM 15V-50VDC 24V:PWM 30V-105VDC |
24V:MPPT 30V-150VDC 48V:MPPT 60V-150VDC |
|||||||
Maximum PV Display Open Circuit Voltage |
12V: PWM 50VDC 24V: PWM 105VDC |
24V:MPPT 150VDC 48V:MPPT 150VDC |
|||||||
Maximum solar charging current | 60A | 120A | |||||||
Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
load peak ratio | (MAX)3:1 | ||||||||
Protective function | Under themains:input overcurrent fuse Under inverter: overload protection,short circuit protection, low voltage protection (with battery anti-reverse connection, board). |
||||||||
Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage output frequency, battery voltage, load current and other parameters by turning the page keys. |
||||||||
Voice prompt | Low batteryprotection ouzzerlona peep Low batterybuzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
||||||||
Operating temperature | 0°C~40℃ | ||||||||
Storage temperature | -15°C~45°C | ||||||||
Relative temperature | -10°C~90℃C no condensation | ||||||||
Noise | <45dB | ||||||||
size(L*W*H)mm | 465*310*135MM | 545*400*200MM |
High-Power Pure Sine Wave Output: Delivers a stable 1.2KW (2400W peak surge) of clean AC power, safe for sensitive electronics like laptops, refrigerators, power tools, and medical equipment. The pure sine wave output is identical to grid power.
Ultra-High 120A MPPT Solar Charger: The integrated Maximum Power Point Tracking (MPPT) charger is exceptionally powerful with a 120A rating. This allows it to harness maximum energy from large solar panel arrays, enabling rapid battery charging and superior energy harvest, far outperforming standard PWM controllers.
Dual Voltage Compatibility (12V/24V Auto): A standout feature is its automatic detection of 12V or 24V battery systems. This provides incredible flexibility, future-proofing your investment and simplifying the setup process.
Comprehensive Hybrid Functionality: Operates as a true hybrid inverter, intelligently prioritizing free solar energy to power loads and charge batteries. It only switches to grid (AC input) or battery power when solar is insufficient, drastically reducing electricity costs.
Advanced Battery Management: Supports a wide range of batteries, including lithium batteries (LiFePO4), AGM, GEL, and flooded lead-acid. Features configurable charging parameters and built-in protections for over-charge, over-discharge, over-load, and short-circuit.
User-Friendly LCD Display: The clear digital display shows real-time data on voltage, current, power, and fault codes, making system monitoring and troubleshooting simple.
This powerful inverter is engineered for a diverse set of energy needs:
Off-Grid Cabins & Tiny Homes: As the core power component for a complete solar power system, running lights, appliances, and electronics.
Van Life & RV Conversions: The ideal power inverter for van or RV, providing ample electricity for cooking, cooling, and entertainment on the road.
Backup Power Supply: Keeps essential home systems running during grid outages, including refrigerators, wifi routers, and security systems.
Remote Industrial & Agricultural Use: Powers tools, pumps, and monitoring equipment at construction sites, farms, and telecommunications towers.
Solar Energy Storage Systems: An excellent choice for integrating into a DIY solar system to store and use solar energy efficiently.
