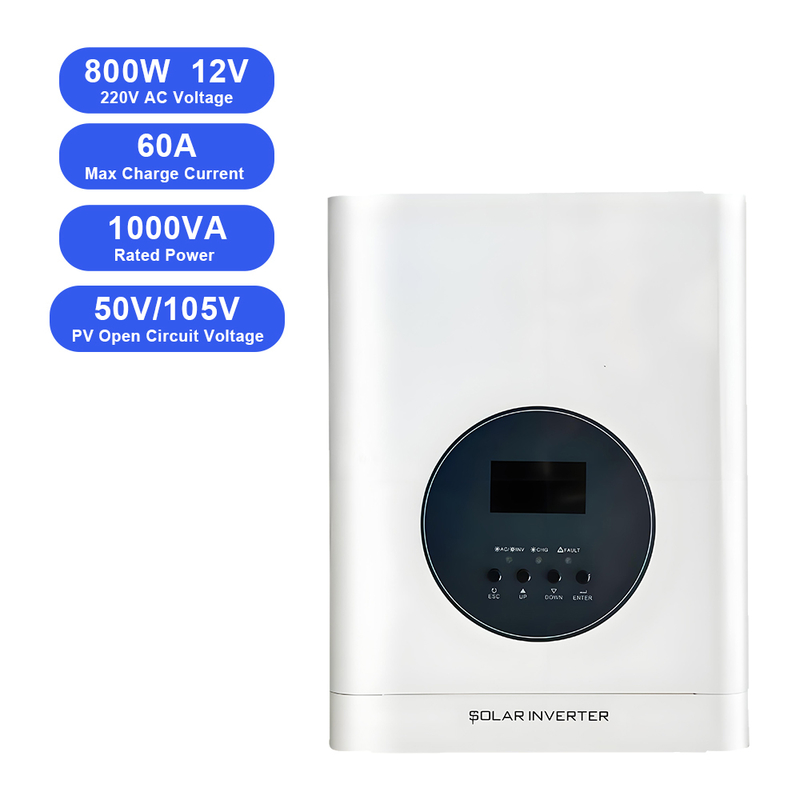

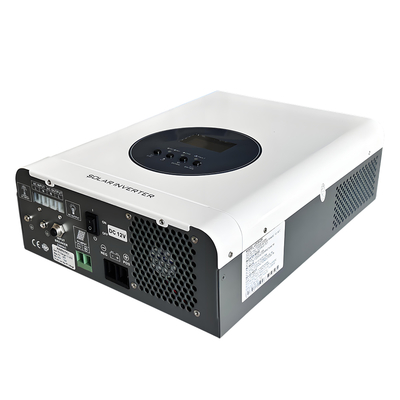

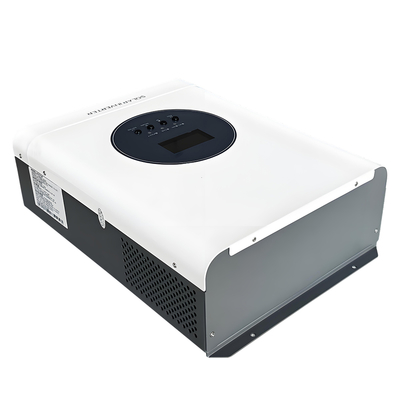

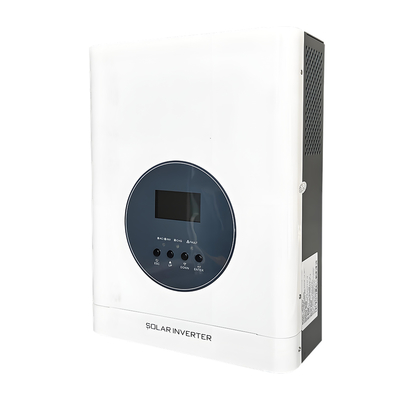

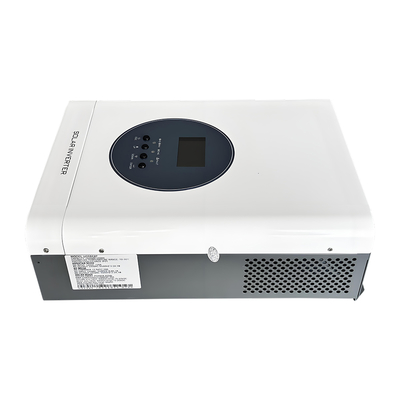

800W 12V Hybrid Solar Inverter with MPPT Charge Controller

800W 12V Hybrid Solar Inverter with MPPT Charge Controller

Brand Name: SZSSTH
Model Number: UD1012AP
MOQ: 1pieces
Price: $75/pieces
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100000pcs/month
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE Rhos BSI
Model:
UD1012AP
Output Power:
800W
Frequency:
50HZ Or 60HZ±1%
Waveform:
Pure Sine Wave
Battery Voltage:
12VDC
Maximum Solar Charging Current:
60A
Packaging Details:
Carton Box
Highlight:

800W hybrid solar inverter

,

12V solar inverter with MPPT

,

MPPT charge controller inverter

Product Description
Professional 800W 12V Hybrid Solar Inverter | MPPT Charge Controller | Pure Sine Wave
Product Overview

This Professional 800W DC12V Hybrid Solar Inverter is an all-in-one power solution designed for reliability and efficiency in off-grid and backup power applications. It seamlessly integrates solar energy, utility power, and battery storage to provide uninterrupted AC power output.

With its advanced MPPT (Maximum Power Point Tracking) charge controller, it maximizes energy harvest from your solar panels, making it an essential component of any robust photovoltaic system. This unit is ideal for powering sensitive electronics, appliances, and tools in remote locations or during power outages.

Technical Specifications
Model UDI012AP UDI512AP UD1524AP UD2024AP UD3024AM UO5048AM UD6348AM U012548AM UD10048AM
AC Input Voltage 220VAC (standard)
Input Voltage Range 154-264VAC±3V (Nor Model)
185-264VAC±3V (UPS model)
Input Frequency 50/60Hz±5%
Output Power 1000VA
800W
1500VA
1200W
1500VA
1200W
2000VA
1600W
3000VA
2400W
5000VA
4000W
6300VA
5000W
10000VA
8000W
12500VA
10000W
Battery Voltage 12VDC 12VDC 24VDC 24VDC 24VDC 48VDC 48VDC 48VDC 48VDC
Maximum PV Array Power 12V:800W 24V:1600W 48V:3200W 48V:6400W
Key Features & Technical Advantages
  • High-Efficiency Hybrid Design: Combines solar inverter, AC battery charger, and AC to DC inverter in one compact unit.
  • Advanced MPPT Technology: Up to 99% efficient charge controller for maximum power from solar panels.
  • Pure Sine Wave Output: Stable 230VAC ±5% / 50Hz output for sensitive electronics.
  • Comprehensive Protection: Over-load, short-circuit, over-temperature, and low battery voltage protection.
  • Wide Battery Compatibility: Supports lead-acid (AGM, GEL, Flooded) and lithium batteries.
  • User-Friendly Interface: LCD display for monitoring input/output voltage, battery level, and status.
800W 12V Hybrid Solar Inverter with MPPT Charge Controller 0 800W 12V Hybrid Solar Inverter with MPPT Charge Controller 1 800W 12V Hybrid Solar Inverter with MPPT Charge Controller 2
Applications
  • Residential & Cabin Use: Primary or backup power for small homes, cabins, and garages.
  • Mobile & RV Living: Power for caravans, RVs, and boats while off-grid.
  • Emergency Backup Power: Keep critical systems running during blackouts.
  • Remote Power Solutions: Solar lighting systems and agricultural sensors.
  • Outdoor Activities: Power tools and appliances for camping and events.
