3KW Pure Sine Wave Power Inverter 12V/24V to 220V 6000W Peak

3KW Pure Sine Wave Power Inverter 12V/24V to 220V 6000W Peak

Brand Name: SZSSTH/OEM
Model Number: MTS
MOQ: 2 pieces
Price: USD$151/pieces 2-99 pieces
Detail Information
Place of Origin:
Guangdong, China
Network:
SDK
Type:
DC/AC Inverters
Output Type:
DUAL
Output Current:
Load
Output Frequency:
50Hz/60Hz
Size:
348*185*95MM
Weight:
4.5KG
Output Waveform:
Prue Sine Wave
Rated Power:
3000W
Peak Power:
6000W
Frequency:
50/60 HZ
Input Voltage:
DC 12V(10.4-14.8V)/24V20-28V)/48V
Output Voltage:
110V/220V /230V /240V
USB Output:
5V 2.4A
Availability Power:
93%
Type-C Output:
PD20W
Warranty:
12 Months
Customized Support:
Software Reengineering
Highlight:

3KW pure sine wave inverter

,

12V to 220V power inverter

,

6000W peak power inverter

Product Description
High Reliability 3KW 12V/24V to 220V Pure Sine Wave Power Inverter

Introducing our high-reliability 3KW pure sine wave inverter, engineered to deliver unwavering performance for your critical off-grid and backup power needs. This robust inverter converts 12V or 24V DC battery power into stable 220V/50Hz AC power, identical to grid electricity. Designed for versatility, it is an indispensable component for solar power systems, remote applications, and mobile living.

Technical Specifications
Model No. MTS-1000W MTS-2000W MTS-3000W MTS-4000W MTS-5000W MTS-6000W
Rated Power 1000W 2000W 3000W 4000W 5000W 6000W
Peak Power 2000W 4000W 6000W 8000W 10000W 12000W
Input voltage DC 12V(10.4-14.8V)/24V(20-28V)/48V
Output voltage 110V/220V/230V/240V
Waveform Pure sine wave
Frequency 50Hz/60Hz+4Hz
Availability power 90.50%
Type-C output PD20W
USB output 5V 2.4A
Socket One AC Socket | Dual AC Socket (EU, USA, Universal, Brazil socket optional)
Remote control 3W remote line control /5W remote control
Cooling fan Yes
Low voltage alarm 10.5V±0.5V/20.5V±0.5V
Low voltage range 9.6V/20.5V
High voltage range >14.8V/31V
Non-load current 5.04A
Overload protection >1100W >2100W >3100W >4100W >5100W >6100W
Reverse protection Yes
Short-circuit protection Yes

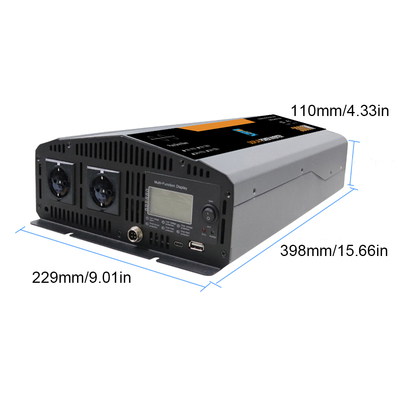

Dimension 348*185*95MM 398*229*110MM 514.8*229*110MM 545*229*110MM 545*229*110MM 545*229*110MM
Warranty 1 Year
Key Features & Technical Advantages
  • Unmatched Reliability & Pure Sine Wave Output: Clean, stable AC power safe for sensitive electronics including medical equipment and variable-speed motors.
  • High Reliability Design: Robust aluminum alloy housing with industrial-grade components for longevity and consistent performance.
  • Powerful Continuous & Surge Output: 3000W continuous power with 6000W-9000W peak surge for demanding loads.
  • Advanced Multi-Stage Smart Battery Charger: User-configurable AC battery charger with bulk, absorption, and float stages.
  • Comprehensive Protection System: Safeguards against overload, short circuit, over-temperature, over-voltage, and under-voltage.
  • User-Centric Interface: LED indicators and optional remote control for convenient monitoring.
Why Choose Our Solar Inverter?
  • Expert Manufacturer: Specialized in power electronics with focus on reliability and efficiency.
  • Rigorous Quality Assurance: Each unit undergoes stringent testing to international safety standards.
  • Proven Performance: Trusted in residential solar systems, RV/marine applications, and industrial backup power.
  • Strong OEM/ODM Support: Custom branding, specifications, and packaging solutions available.
Ideal For

System integrators, off-grid homeowners, RV and boat owners, solar equipment wholesalers, and businesses seeking a high-reliability power inverter from a certified manufacturer.

Contact us today for custom quotes, detailed specifications, and wholesale pricing.
