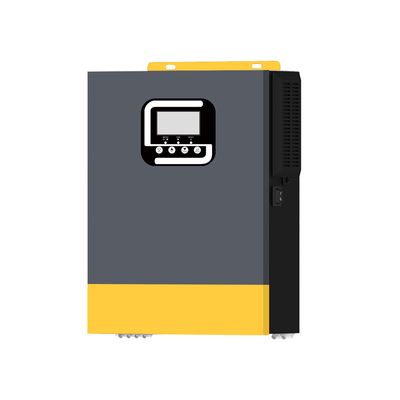

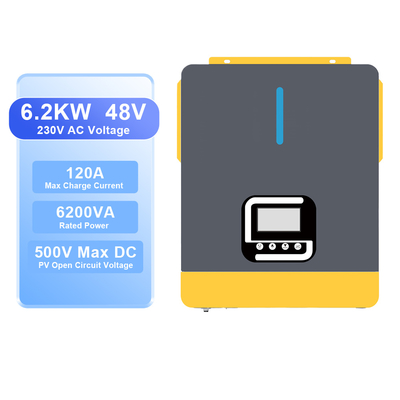

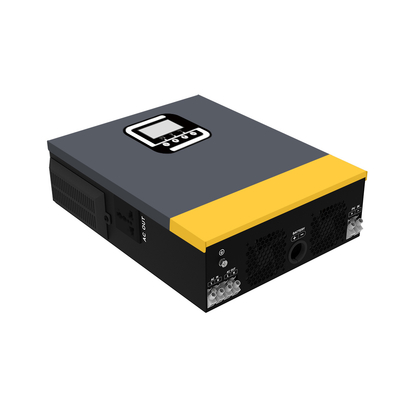

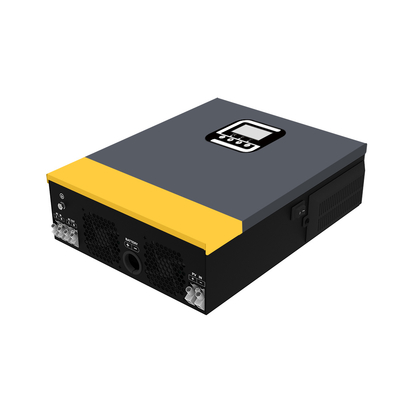

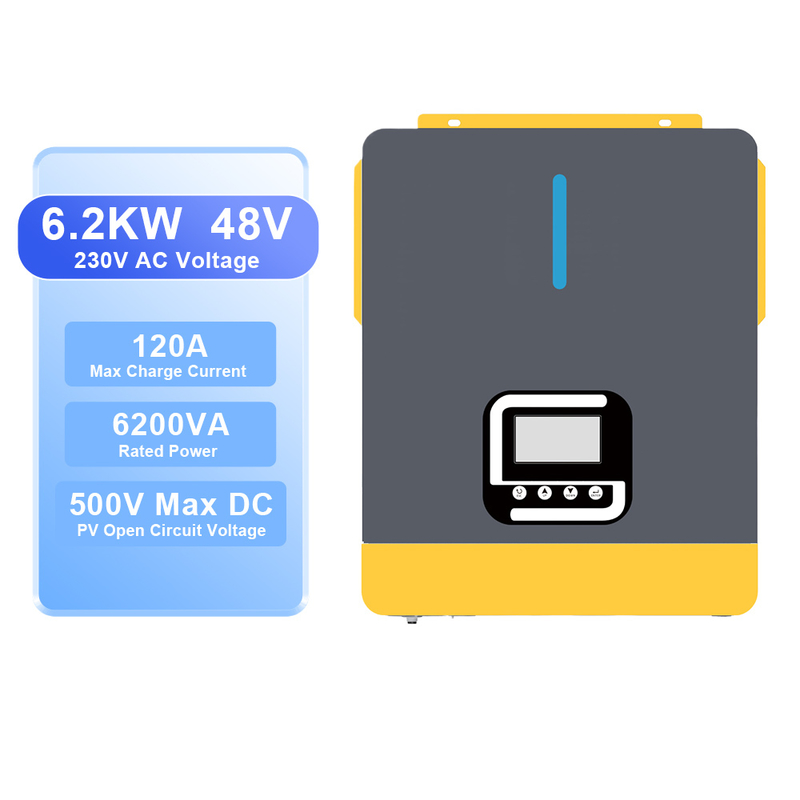

6200W Hybrid Solar Inverter 48V 230V with MPPT and WiFi

Brand Name:	SZSSTH
Model Number:	VICTOR NM-ECO-6.2KW PLUS
Price:	CN¥1600/pieces 1-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

48V

Output Voltage:

220V 230V

Output Current:

Load

Output Frequency:

50Hz/60Hz

Output Type:

Single

Size:

420*350*110mm

Type:

DC/AC Inverters

Inverter Efficiency:

98%

Weight:

8.9kg

Product Name:

Hybrid Solar Inverter 6.2Kw

Inverter Type:

Hybrid Off Grid Solar Inverter

Controller Type:

MPPT Solar Controller

Communication:

WiFi/GPRS(Optional)

Battery Type:

Lead Acid \ Lithium \ Gel

Protection:

Overload

Rated Power:

6200VA

AC Voltage:

230VAC

Display:

LCD Display

Max PV Voltage:

360/500VDC

Certificate:

CE, ROHS

Warranty:

1 Year

Highlight:

6200W hybrid solar inverter

48V solar inverter with MPPT

WiFi enabled solar inverter

Product Description

6200W 230V Hybrid Solar Inverter (On-/Off-Grid) with Lead-Acid Battery Support

Product Specifications

Attribute	Value
Input Voltage	48V
Output Voltage	220V 230V
Output Current	Load
Output Frequency	50Hz/60Hz
Output Type	Single
Size	420350110mm
Type	DC/AC Inverters
Inverter Efficiency	98%
Weight	8.9kg
Product name	Hybrid Solar Inverter 6.2Kw
Inverter type	Hybrid Off Grid Solar Inverter
Controller type	MPPT Solar Controller
Communication	WiFi/GPRS(Optional)
Battery type	Lead Acid \ Lithium \ Gel
Protection	Overload
Rated power	6200VA
AC Voltage	230VAC
Display	LCD Display
Max PV voltage	360/500VDC
Certificate	CE, ROHS
Warranty	1 year

Product Overview

The VICTOR NM-ECO-6.5 kW is a high-performance hybrid solar inverter, expertly engineered for both grid-connected and off-grid setups. With a rated power of 6200 VA (≈ 6200W), this all-in-one inverter delivers pure sine wave output, built-in MPPT charging, and robust communications—designed for flexibility and reliability in modern solar installations.

Key Features

Pure Sine Wave Output & High Efficiency - Delivers clean, symmetrical AC output with excellent load compatibility and safety for sensitive devices. Achieves a high 98% conversion efficiency, maximizing energy usage.
Native Hybrid Operation & Battery Flexibility - Supports both on-grid and off-grid operation. Works seamlessly with lead-acid, lithium, and gel battery types; includes a built-in lithium battery activation feature for hassle-free startup.
Built-In MPPT Solar Charge Controller - Integrated MPPT solar controller handles up to 120 A (for the 6.2 kW variant), with PV input capacity up to 6500 W, and a wide MPPT voltage range of 60-500 VDC (also compatible with 60-450 VDC operating window).
Multi-Mode Functionality - Supports versatile operating preferences: inverter works with or without a battery. Features one-key factory reset, dual communication ports for Wi-Fi, GPRS, and battery management systems.
Intelligent Dual Load Output - Offers a dual load output system, allowing allocation of power between a main load and a secondary load during battery mode—protects critical loads during low battery situations.
Rugged & Safe Design - Includes a built-in anti-dust kit for durability in harsh environments. Features broad protective mechanisms: overload, temperature, and short-circuit protection.
Convenient Monitoring & Control - Comes equipped with LCD display for real-time system status. Optional Wi-Fi/GPRS connectivity enables remote monitoring and device management via smartphones or PCs.

Technical Specifications

MODEL	VICTOR NM-ECO-3.6KWPLUS	VICTOR NM-ECO-4.2KWPLUS	VICTOR NM-ECO-6.2KWPLUS
Phase	1-phase
Maximum PV Input Power	6200W	6200W	6500W
Rated Output Power	3500W/3600VA	4200W/4200VA	6200W/6200VA
Maximum Solar Charging Current	120A	140A	120A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /Initial Feeding Voltage	60VDC/90VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A	1/22A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230240VAC
Output Voltage Range	195.5-253VAC
Nominal Output Current	15.7A	18.2A	27.0A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	360DW	42DDW	6200W
Maxium Main Load	350DW	4200W	6200W
Maxium Second Load(battery mode)	1200W	1400W	2067W
Maxium Load Cut Off Voltage	26VDC	26VDC	52VDC
Maxium Load Return Voltage	27VDC	27VDC	54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Frequency Range	49-51±1HZ
Maximum AC Input Current	30A	30A	40A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A	1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Eficiency (DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	24VDC	48VDC
Maximum Solar Charging Current	120A	140A	120A
Maximum AC Charging Current	100A	100A	100A
Maximum Solar+AC Charging Current	120A	140A	120A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	60-450VDC
Maximum Input Current	1/18A	1/22A
GRID OUTPUT(AC)
Nominal Output Voltage	220(230/240VAC
Output Voltage Range	195.5-253VAC
AC INPUT
AC Start-up Voltage /Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	30A	30A	40A
Maximum AC Charging Current	100A
GENERAL
PHYSICAL
Dimension, DWH(mm)	420350110
Cartoon Dimension, D"W*H(mm)	500416180
Net Weight(kgs)	8	8	8.9
Gross Weight(kgs)	9	9	10
INTERFACE
Communication Port	RS 232/R 8485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non~condensing)
STANDARD
Compliance Safety	CE
