Home > Products >
Solar Hybrid Inverter
>
VICTOR 6.2kW Hybrid Solar Inverter 48V On Off Grid MPPT
All Category

Power Inverter

Bidirectional Inverter

Modified Sine Wave Power Inverter

Pure Sine Wave Power Inverter

Solar Hybrid Inverter

Car Inverter

Solar Charge Controller

MPPT Solar Controller

PWM Solar Controller

Solar Panel

Aluminum Glass Solar Panel

Flexible Solar Panel

Foldable Solar Panel

Hanergy Solar Roof Tiles

Portable Power Station

1000W Portable Power Station

500W Portable Power Station

300W Portable Power Station

200W Portable Power Station

Solar Power Bank

Solar Energy System

Battery Charger

Solar Battery

DC-DC Converter
Contact Us
Mrs. Janice chen
info@ssthpower.com
8615013510135
Contact Now
VICTOR 6.2kW Hybrid Solar Inverter 48V On Off Grid MPPT
  • name
  • name
  • name
  • name
  • name

VICTOR 6.2kW Hybrid Solar Inverter 48V On Off Grid MPPT

Brand Name: SZSSTH
Model Number: VICTOR NM-ECO-6.2KW PLUS
Price: CN¥1413/pieces 1-499 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Input Voltage:
48V
Output Voltage:
220V 230V
Output Current:
Load
Output Frequency:
50Hz/60Hz
Output Type:
Single
Size:
420*350*110mm
Type:
DC/AC Inverters
Inverter Efficiency:
98%
Weight:
8.9kg
Product Name:
Hybrid Solar Inverter 4.2Kw
Inverter Type:
Hybrid Off Grid Solar Inverter
Controller Type:
MPPT Solar Controller
Communication:
WiFi/GPRS(Optional)
Battery Type:
Lead Acid \ Lithium \ Gel
Protection:
Overload
Rated Power:
4200VA
AC Voltage:
230VAC
Display:
LCD Display
Max PV Voltage:
500V
Certificate:
CE, ROHS
Warranty:
1 Year
Highlight:

6.2kW hybrid solar inverter

,

48V off grid inverter

,

MPPT solar hybrid inverter

Product Description
VICTOR NM-ECO-6.2 KW PLUS – 48 V 6.2 kW Hybrid Solar Inverter (On-/Off-Grid) with Lead-Acid Battery Support
Product Specifications
Attribute Value
Input Voltage 48V
Output Voltage 220V 230V
Output Current Load
Output Frequency 50Hz/60Hz
Output Type Single
Size 420*350*110mm
Type DC/AC Inverters
Inverter Efficiency 98%
Weight 8.9kg
Product name Hybrid Solar Inverter 4.2Kw
Inverter type Hybrid Off Grid Solar Inverter
Controller type MPPT Solar Controller
Communication WiFi/GPRS(Optional)
Battery type Lead Acid \ Lithium \ Gel
Protection Overload
Rated power 4200VA
AC Voltage 230VAC
Display LCD Display
Max PV voltage 500V
Certificate CE, ROHS
Warranty 1 year
Product Overview

The VICTOR NM-ECO-6.2 kW PLUS is a high-performance hybrid solar inverter, expertly engineered for both grid-connected and off-grid setups. With a rated power of 6200 VA (≈ 6200 W), this all-in-one inverter delivers pure sine wave output, built-in MPPT charging, and robust communications—designed for flexibility and reliability in modern solar installations.

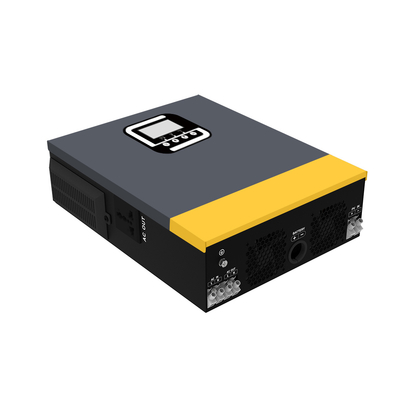

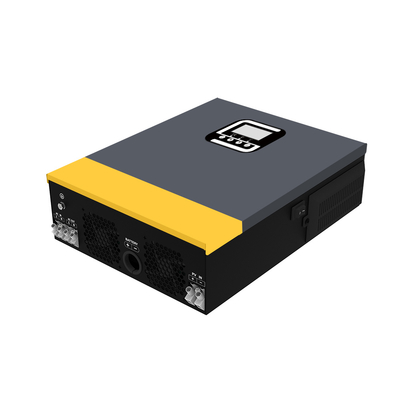

VICTOR 6.2kW Hybrid Solar Inverter 48V On Off Grid MPPT 0 VICTOR 6.2kW Hybrid Solar Inverter 48V On Off Grid MPPT 1
Key Features
Pure Sine Wave Output & High Efficiency
  • Delivers clean, symmetrical AC output with excellent load compatibility and safety for sensitive devices
  • Achieves a high 98% conversion efficiency, maximizing energy usage
Native Hybrid Operation & Battery Flexibility
  • Supports both on-grid and off-grid operation
  • Works seamlessly with lead-acid, lithium, and gel battery types
  • Includes a built-in lithium battery activation feature for hassle-free startup
Built-In MPPT Solar Charge Controller
  • Integrated MPPT solar controller handles up to 120 A
  • PV input capacity up to 6500 W with wide MPPT voltage range of 60-500 VDC
  • Start-up voltage is 90 VDC, with maximum PV voltage of 500 VDC for grid-tie mode
Multi-Mode Functionality
  • Supports versatile operating preferences: works with or without a battery
  • Features one-key factory reset and dual communication ports for Wi-Fi, GPRS, and battery management
Intelligent Dual Load Output
  • Offers a dual load output system for power allocation between main and secondary loads
  • Protects critical loads during low battery situations by disabling main output when needed
Rugged & Safe Design
  • Includes a built-in anti-dust kit for durability in harsh environments
  • Features comprehensive protection: overload, temperature, and short-circuit protection
Convenient Monitoring & Control
  • Equipped with LCD display for real-time system status
  • Optional Wi-Fi/GPRS connectivity enables remote monitoring via smartphones or PCs
Technical Specifications
MODEL VICTOR NM-ECO-3.6KWPLUS VICTOR NM-ECO-4.2KWPLUS VICTOR NM-ECO-6.2KWPLUS
Phase 1-phase
Maximum PV Input Power 6200W 6200W 6500W
Rated Output Power 3500W/3600VA 4200W/4200VA 6200W/6200VA
Maximum Solar Charging Current 120A 140A 120A
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage /Initial Feeding Voltage 60VDC/90VDC
MPPT Voltage Range 60-450VDC
Nominal Output Voltage 220/230240VAC
Output Voltage Range 195.5-253VAC
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 98%
Full Load 360DW 42DDW 6200W
Dimension, D*W*H(mm) 420*350*110
Net Weight(kgs) 8 8 8.9
