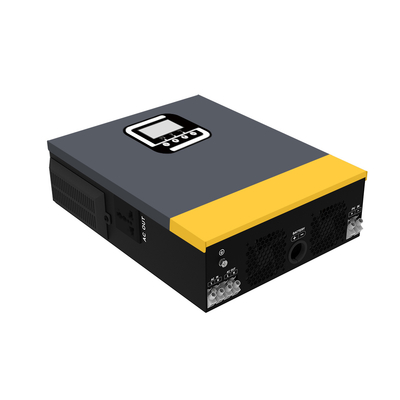

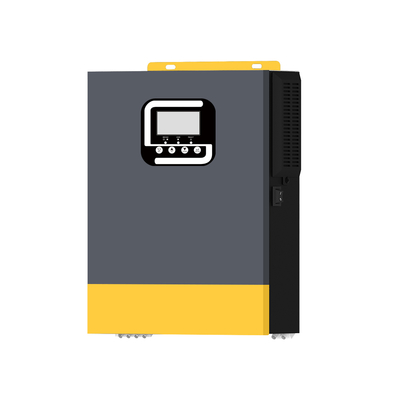

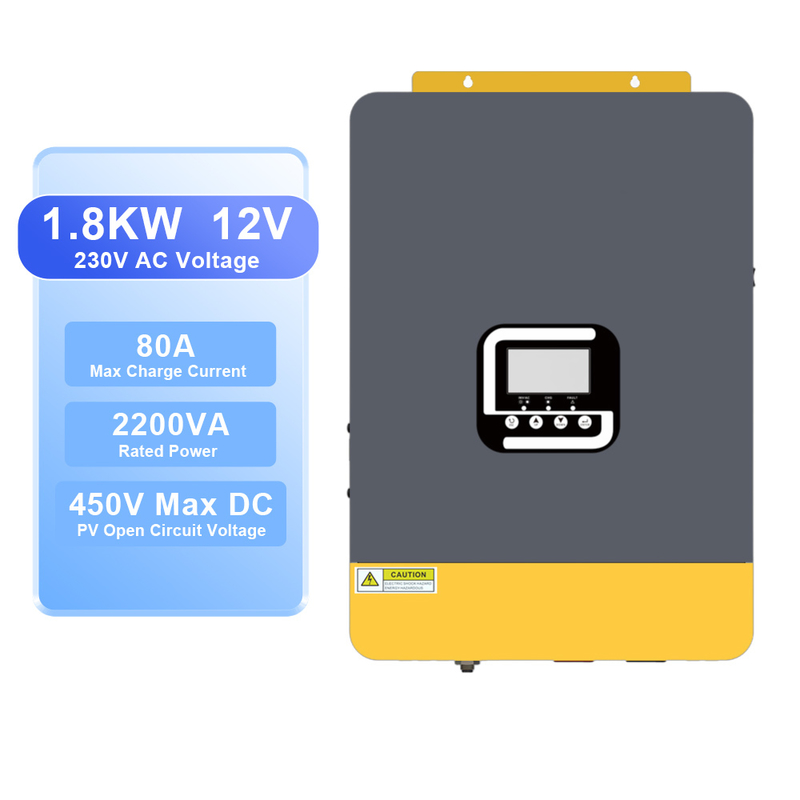

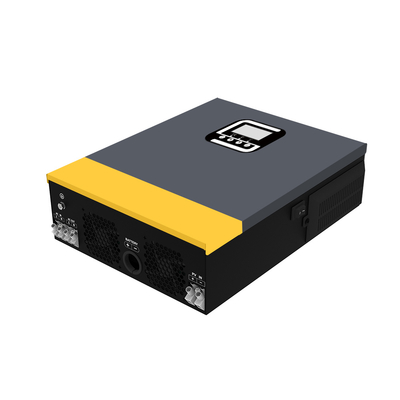

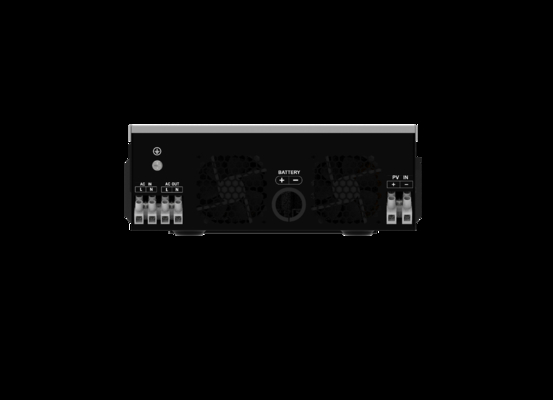

12V 2200VA MPPT Hybrid Solar Inverter Pure Sine Wave

Name: 12V 2200VA MPPT Hybrid Solar Inverter Pure Sine Wave
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SP-2200
Price: 72.00 USD
Availability: InStock

Brand Name:	SZSSTH
Model Number:	SP-2200
Price:	USD＄143/pieces 1-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

12V

Output Voltage:

220V 230V

Output Current:

Load

Output Frequency:

50Hz/60Hz

Output Type:

Single

Size:

405*286*98mm

Type:

DC/AC Inverters

Inverter Efficiency:

98%

Weight:

4.5kg

Product Name:

Hybrid Solar Inverter 1.8Kw

Inverter Type:

Hybrid Off Grid Solar Inverter

Controller Type:

MPPT Solar Controller

Communication:

WiFi/GPRS(Optional)

Battery Type:

Lead Acid \ Lithium \ Gel

Protection:

Overload

Rated Power:

2200VA

AC Voltage:

230VAC

Display:

LCD Display

Max PV Voltage:

450V

Certificate:

CE, ROHS

Warranty:

1 Year

Highlight:

12V hybrid solar inverter with MPPT

2200VA pure sine wave inverter

MPPT solar inverter 12V

Product Description

12 V 2.2 kVA (2200 W) Off-Grid MPPT Pure Sine Wave Inverter – SP-2200

Product Attributes

Attribute	Value
Input Voltage	12V
Output Voltage	220V 230V
Output Current	Load
Output Frequency	50Hz/60Hz
Output Type	Single
Size	40528698mm
Type	DC/AC Inverters
Inverter Efficiency	98%
Weight	4.5kg
Product name	Hybrid Solar Inverter 1.8Kw
Inverter type	Hybrid Off Grid Solar Inverter
Controller type	MPPT Solar Controller
Communication	WiFi/GPRS(Optional)
Battery type	Lead Acid \ Lithium \ Gel
Protection	Overload
Rated power	2200VA
AC Voltage	230VAC
Display	LCD Display
Max PV voltage	450V
Certificate	CE, ROHS
Warranty	1 year

Product Overview

Power your off-grid or hybrid solar energy system with confidence using the SP-2200 inverter—a compact, highly efficient solution combining a pure sine wave inverter and MPPT solar charge controller, tailored for 12 V battery systems.

Key Features

High-Efficiency Pure Sine Wave Output - Delivers reliable, clean AC power (220-230 VAC, 50/60 Hz), ideal for sensitive electronics and appliances, with a notable efficiency of ~98%.
Built-In MPPT Solar Charger - Supports a broad PV input voltage range (55-450 V DC) and a maximum PV open-circuit voltage of 450 V, offering flexibility and optimal harvesting in varied solar conditions.
Multi-Mode Power Supply Priority - Easily programmable to prioritize power from solar panels, battery, or grid—enhancing adaptability across different environments.
Advanced Battery Support & Management - Compatible with Lead-Acid, Lithium, and Gel batteries. Supports BMS communication for lithium-ion batteries and offers smart battery charging to extend lifespan.
Safe & Reliable Operation - Offers comprehensive protections including overload, high-temperature, inverter output short-circuit safeguards, a cold-start function, and intelligent fan-speed control.
Remote Monitoring & Connectivity - Standard RS-232/RS-485 interfaces, with optional Wi-Fi/GPRS connectivity, enable real-time monitoring and control via LCD and mobile apps on iOS and Android.

Technical Specifications

MODEL	SP-2200	8P-3200	SP-4200	8P-4200	8P-7000
Rated Power	2200VA/1800W	3200VA/3000W	4200VA/3800W	4200VA/3800W	7000VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz(Autosensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge power	4400VA	6400VA	8400VA	8400VA	14000VA
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
Waveform	Pure SineWave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC	61VDC
Maximum charge current	60A	80A	60A	80A	-
SOLAR CHARGER
MAX.PV Array Power	2000W	3000W	6000W	-	-
MPPT Range@Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A	110A	80A	110A	-
Maximum Efficiency	98%
PHYSICAL
Dimension.DWH(mm)	40528698mm	423290100mm	423290105mm	-	-
Net Weight(kgs)	4.5kg	5.0kg	6.8kg	6.9kg	7.5kg
Communication Interface	RS 232/RS 485(Standard) WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 55°C
Storage Temperature	-15°C to 60°C
