10.2kW 48V Solar Hybrid Inverter with MPPT and WiFi

Brand Name: SZSSTH
Model Number: VICTOR MAX-10.2KW
Price: USD＄441/pieces 1-499 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Input Voltage:
48V
Output Voltage:
220V 230V
Output Current:
Load
Output Frequency:
50Hz/60Hz
Output Type:
Single
Size:
618*423*205mm
Type:
DC/AC Inverters
Inverter Efficiency:
98%
Weight:
16.2kg
Product Name:
Hybrid Solar Inverter 10.2Kw
Inverter Type:
Hybrid Off Grid Solar Inverter
Controller Type:
MPPT Solar Controller
Communication:
WiFi/GPRS(Optional)
Battery Type:
Lead Acid \ Lithium \ Gel
Protection:
Overload
Rated Power:
10200VA
AC Voltage:
230VAC
Display:
LCD Display
Max PV Voltage:
500V
Certificate:
CE, ROHS
Warranty:
1 Year
Highlight:

10.2kW solar hybrid inverter with MPPT

,

48V solar inverter with WiFi

,

hybrid solar inverter with warranty

Product Description

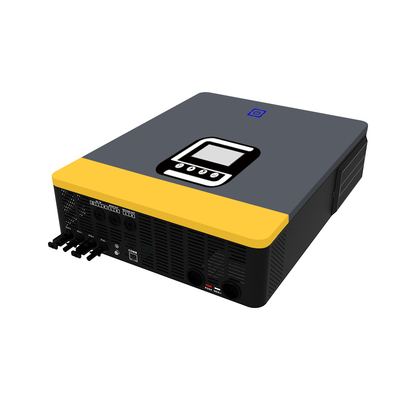

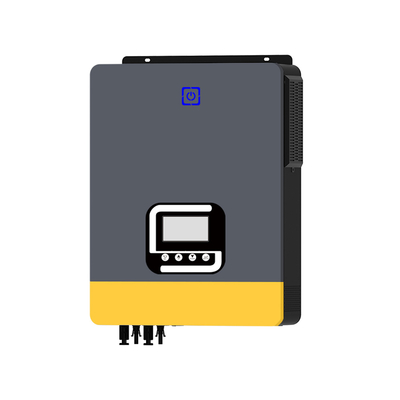

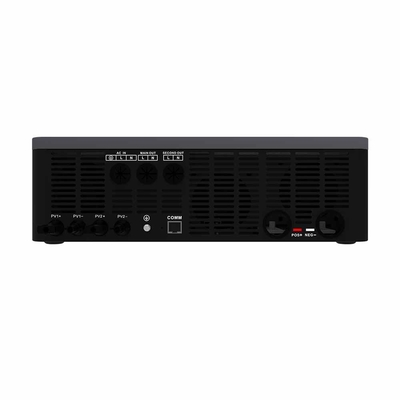

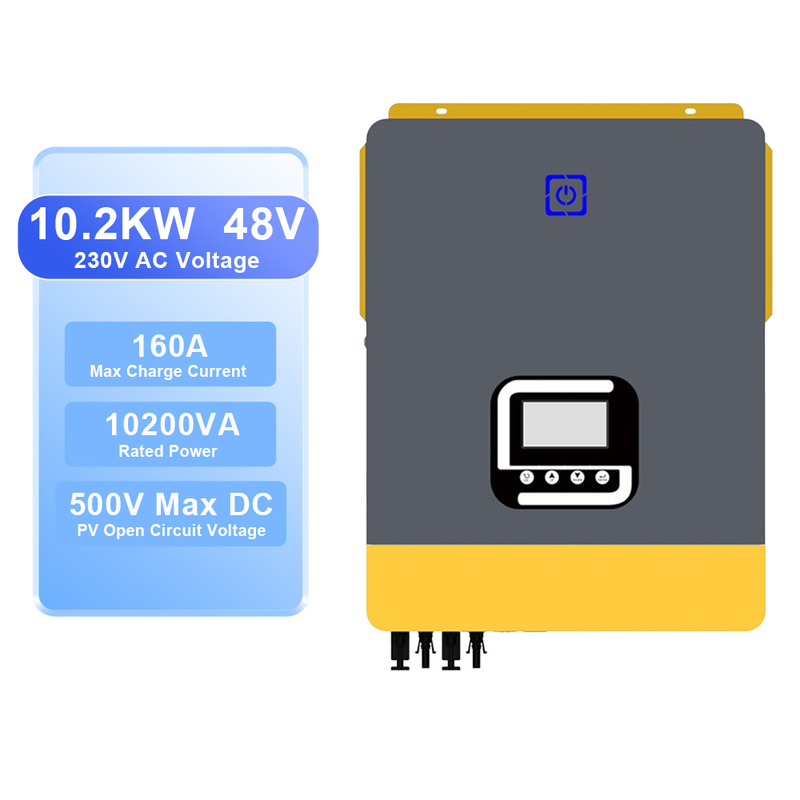

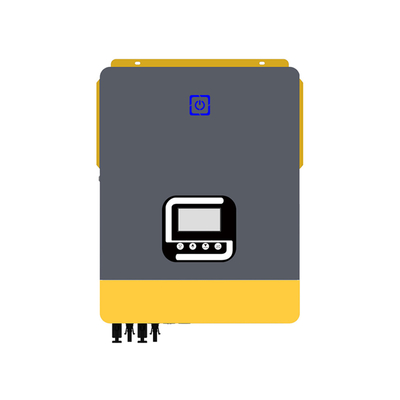

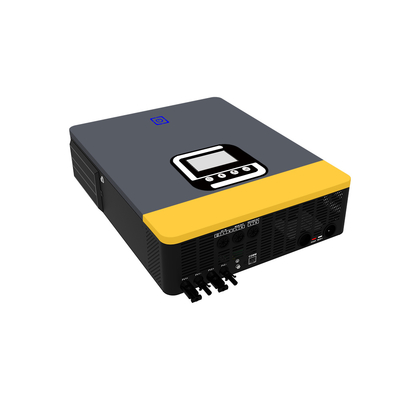

10 kW (10.2 kVA) 48 V Solar Hybrid Inverter with MPPT – VICTOR MAX
Product Overview

The VICTOR MAX-10.2 kW solar hybrid inverter is an advanced 48 V DC all-in-one solution for both off-grid and hybrid solar power systems. Featuring a built-in MPPT solar charge controller, this inverter delivers efficient, pure sine wave AC output with WiFi/GPRS connectivity for remote monitoring. Designed for reliability and flexibility, it's compatible with lead-acid, lithium, and gel battery types.

10.2kW 48V Solar Hybrid Inverter with MPPT and WiFi 0 10.2kW 48V Solar Hybrid Inverter with MPPT and WiFi 1 10.2kW 48V Solar Hybrid Inverter with MPPT and WiFi 2
Key Features
Pure Sine Wave Output & High Efficiency
  • Generates stable, grid-quality pure sine wave output, ideal for sensitive electronics and household appliances
  • Operates at impressive 98% conversion efficiency, minimizing energy losses
Powerful MPPT Solar Charging
  • Includes a 160 A MPPT solar charger, optimized for high solar input and energy harvesting
  • Supports maximum PV voltage of 500 VDC with broad MPPT tracking range from 90-450 VDC
Flexible Operational Modes
  • Capable of functioning without a battery, enabling direct solar-to-load operation
  • Features solar priority and grid-hybrid operation modes with one-key factory reset and automatic lithium battery activation
Connectivity & Display
  • Features an LCD display for monitoring system parameters
  • Offers WiFi and GPRS communication options for real-time system control
Reliable Protection & Battery Flexibility
  • Built with comprehensive safety features including overload protection and voltage safeguard
  • Compatible with multiple battery types: lead acid, gel, and lithium
Technical Specifications
Attribute Value
Input Voltage 48V
Output Voltage 220V/230V
Output Frequency 50Hz/60Hz
Output Type Single
Size 618×423×205mm
Inverter Efficiency 98%
Weight 16.2kg
Controller Type MPPT Solar Controller
Communication WiFi/GPRS (Optional)
Battery Type Lead Acid / Lithium / Gel
Protection Overload
Rated Power 10200VA
Max PV Voltage 500V
Certification CE, ROHS
Warranty 1 year
Detailed Technical Parameters
MODEL VICTOR MAX-10.2KW
Phase 1-phase
Maximum PV Input Power 5400W+5400W
Rated Output Power 10200W/10200VA
Maximum Solar Charging Current 160A
GRID-TIE OPERATION
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 90-450VDC
Maximum Input Current 2/18A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 190-253VDC
Nominal Output Current 44.3A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 98%
OFF-GRID OPERATION
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 49-51±1HZ
Maximum AC Input Current 50A
BATTERY & CHARGER
Nominal DC Voltage 48VDC
Maximum Solar Charging Current 160A
Maximum AC Charging Current 140A
Maximum Solar+AC Charging Current 160A
PHYSICAL
Dimension (D×W×H) 530×390×130mm
Carton Dimension (D×W×H) 618×463×205mm
Net Weight 16.2kg
ENVIRONMENT
Operating Temperature -10℃ to 60℃
Humidity 5% to 95% Relative Humidity (Non-condensing)
