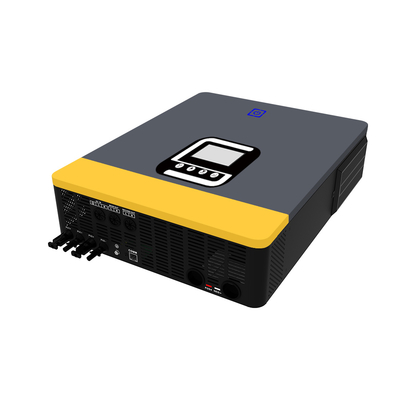

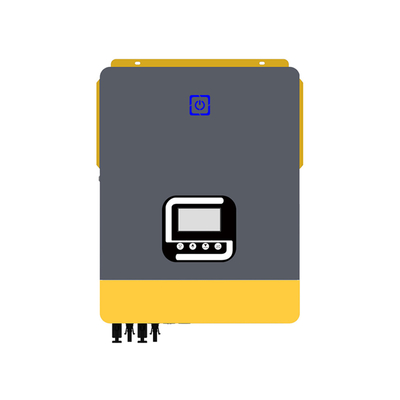

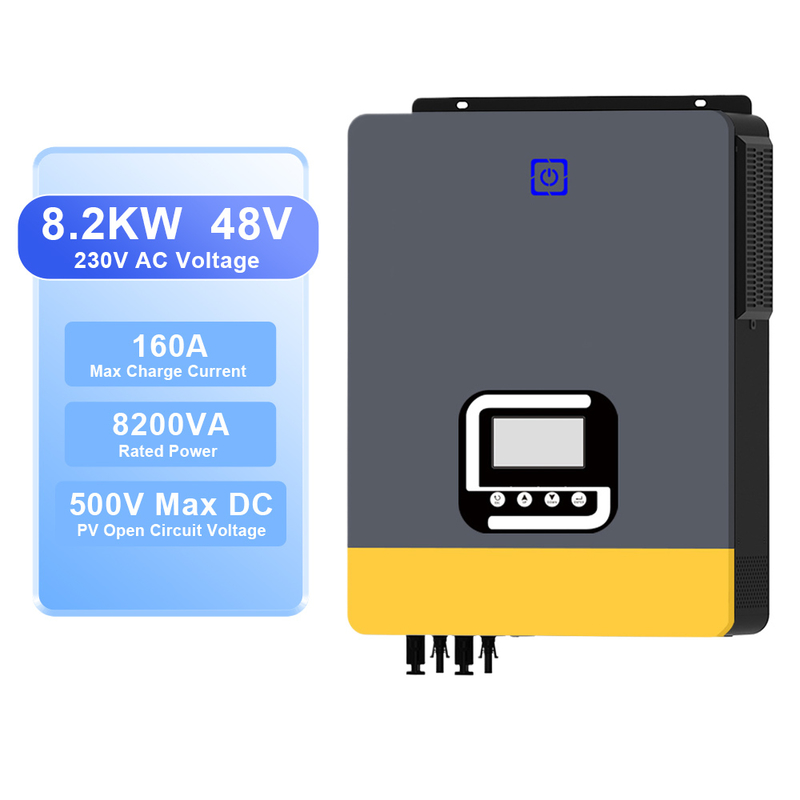

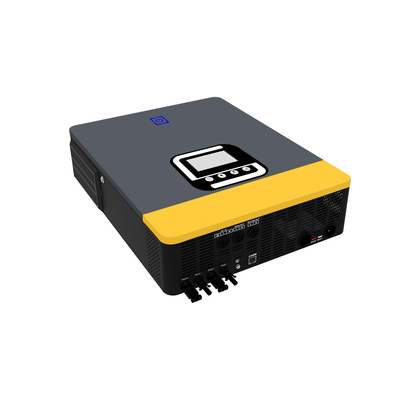

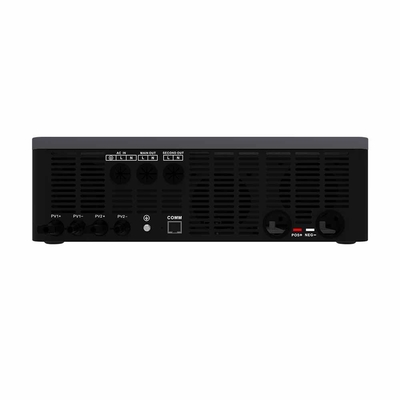

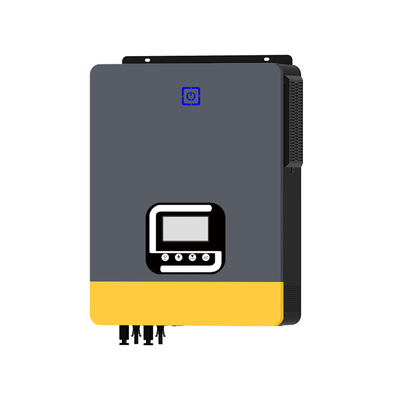

8.2kW Hybrid Solar Inverter 48V MPPT Pure Sine Wave Off Grid

Brand Name:	SZSSTH
Model Number:	VICTOR NMS-8200-48
Price:	USD＄402/pieces 1-499 pieces
Payment Terms:	L/C,D/A,D/P,MoneyGram,Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

48v

Output Voltage:

220V 230V

Output Current:

Load

Output Frequency:

50Hz/60Hz

Output Type:

Single

Size:

618*463*205mm

Type:

DC/AC Inverters

Inverter Efficiency:

95%

Weight:

15.7KG

Product Name:

Hybrid Solar Inverter 8.2Kw

Inverter Type:

Hybrid Off Grid Solar Inverter

Controller Type:

MPPT Solar Controller

Communication:

WiFi/GPRS(Optional)

Battery Type:

Lead Acid \ Lithium \ Gel

Protection:

Overload

Rated Power:

8200VA

AC Voltage:

220/230/240VAC

Display:

LCD Display

Max PV Voltage:

90-450V

Certificate:

CE, ROHS

Warranty:

1 Year

Highlight:

8.2kW hybrid solar inverter

48V MPPT solar inverter

off grid pure sine wave inverter

Product Description

Single-Output MPPT Pure Sine Wave Inverter – 48 V / 8 kVA (8200 W)

Product Specifications

Attribute	Value
Input Voltage	48V
Output Voltage	220V 230V
Output Current	Load
Output Frequency	50Hz/60Hz
Output Type	Single
Size	618463205mm
Type	DC/AC Inverters
Inverter Efficiency	95%
Weight	15.7KG
Product name	Hybrid Solar Inverter 8.2Kw
Inverter type	Hybrid Off Grid Solar Inverter
Controller type	MPPT Solar Controller
Communication	WiFi/GPRS(Optional)
Battery type	Lead Acid \ Lithium \ Gel
Protection	Overload
Rated power	8200VA
AC Voltage	220/230/240VAC
Display	LCD Display
Max PV voltage	90-450V
Certificate	CE, ROHS
Warranty	1 year

Product Overview

This all-new 48 V, 8.2 kVA (8200 W) solar inverter is a robust, single-output, MPPT pure sine wave inverter. Designed for off-grid and hybrid solar energy systems, it delivers clean, reliable AC power—perfect for powering sensitive electronics, motors, and household appliances with confidence and efficiency.

Key Features

High Continuous & Peak Power: Capable of delivering a solid 8000 W of continuous output, this unit can also handle substantial surge loads—ideal for devices with high startup demands like pumps or power tools.
MPPT Solar Charge Controller: Equipped with a high-performance Maximum Power Point Tracking (MPPT) controller, which typically handles up to 120 A of solar charging current across a wide voltage range (often up to 500 V DC open-circuit).
Pure Sine Wave Output: Provides a clean, grid-quality sine wave output—safe for sensitive electronics, medical gear, and audio/video equipment—unlike modified sine wave inverters.
Smart Protection and Stability: Built-in safeguards protect against PV input over-voltage/over-current, AC input over-voltage, battery over-voltage, overload and short-circuit conditions.
Versatile Charging & Operating Modes: Supports multiple charging scenarios including Solar Priority, Utility Priority, Hybrid Charging, and Only Solar Charging.
Parallel Expansion Capability: Designed for scalability, you can parallel up to six units to increase output to around 48 kW total.
Intelligent Monitoring (Optional): Some models include Wi-Fi modules or communication ports (RS485, CAN, USB), enabling real-time monitoring and control via mobile apps or PC software.

Technical Specifications

MODEL	VICTOR MAX-.2KW	VICTOR MAX-1.2KW
Phase	1-phase
Maximum PV Input Power	5400W+5400W
Rated Output Power	8200W/8200VA	10200W/10200VA
Maximum Solar Charging Current	160A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90-450VDC
Maximum Input Current	2/18A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190-253VDC
Nominal Output Current	35.6A	44.3A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	8200W	10200W
Maximum Main Load	8200W	10200W
Maximum Second Load (battery mode)	2733W	3400W
Maximum Load Cut Off Voltage	52VDC
Maximum Load Return Voltage	54VDC
