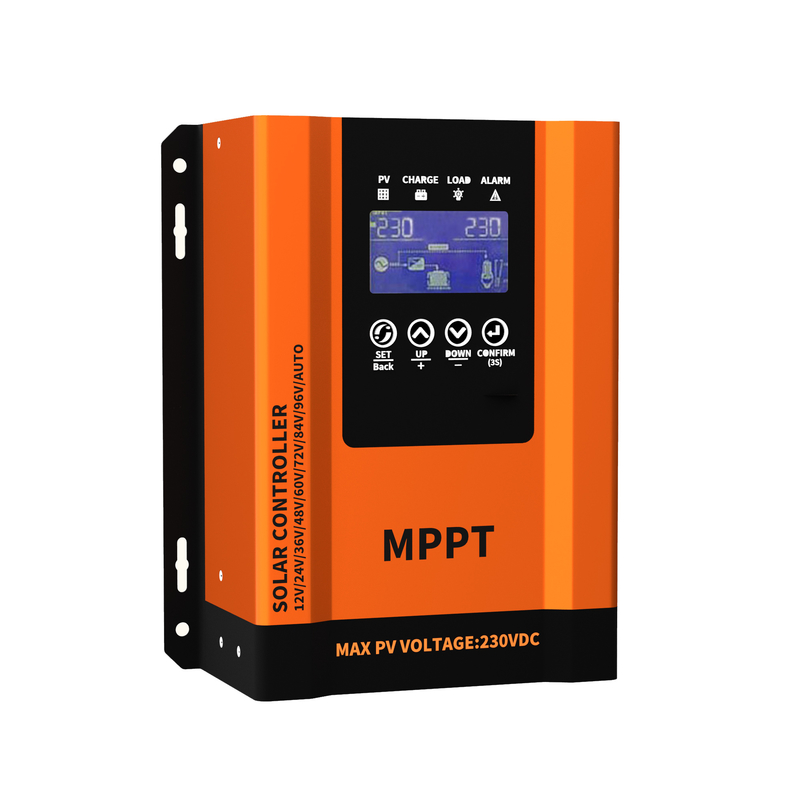

30A-60A MPPT Solar Charge Controller for 12V-48V Battery Systems

30A-60A MPPT Solar Charge Controller for 12V-48V Battery Systems

Brand Name: SZSSTH
Model Number: SSTH-30
MOQ: 1 pieces
Price: $55-77/pieces
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000 piece/month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE RHOS BSI
Document:
12V~96V MPPT controller spe...on.pdf
Type:
MPPT
Max PV Power:
Auto Tracking The Max Power
Rated Current:
30/40/50/60A
MPPT Efficiency:
97%
Protection Level:
IP 21
Charge Mode:
MPPT Automatic Max Power Tracking
Packaging Details:
color box
Highlight:

30A MPPT solar charge controller

,

60A MPPT controller for 12V-48V batteries

,

MPPT solar controller with warranty

Product Description
Waterproof MPPT Solar Panel Charger Regulator 30A-60A

Advanced solar charge controller for off-grid 12V/24V/36V/48V battery systems with automatic voltage detection and wide compatibility.

Key Specifications
Attribute Value
Type MPPT
Max PV Power Auto tracking the max power
Rated Current 30/40/50/60A
MPPT efficiency 97%
Protection level IP 21
Charge mode MPPT automatic Max power tracking
Product Features
Advanced MPPT Technology with 99% Tracking Efficiency
  • Intelligent Maximum Power Point Tracking (MPPT) extracts 30% more solar energy than PWM controllers
  • Auto-adjusts to weather conditions (cloudy/sunny) for optimal charging performance
Wide Compatibility for Multiple Battery Types & Voltage Systems
  • Works with 12V/24V/36V/48V lead-acid (sealed/GEL/flooded) & lithium batteries (LiFePO4 optional)
  • High PV input voltage (100V DC Max) supports series-connected solar panels
Smart Battery Management to Extend Battery Life by 200%
  • 4-stage charging (bulk/absorption/float/equalization) prevents overcharge/discharge
  • -20°C~60°C temperature compensation ensures safe operation in extreme environments
Military-Grade Protection System
  • Triple reverse polarity protection (PV/battery/load)
  • 4000V lightning surge protection for outdoor installations
  • Over-current/short-circuit/overheat protection with auto-recovery
User-Friendly Operation
  • 3.2-inch LCD display shows real-time data: PV voltage/charging current/battery temp
  • Dual USB outputs (5V/3A) for fast-charging phones/tablets
  • Optional Bluetooth/WiFi module for remote monitoring via app
Technical Specifications
Model 30A 40A 50A 60A
Max PV Input Power (12V-18V) 540W 720W 900W 1080W
Max PV Input Power (24V-36V) 1080W 1440W 1800W 2160W
Max PV Input Power (36V-54V) 1620W 2160W 2700W 3240W
Max PV Input Power (48V-72V) 2160W 2880W 3600W 4320W
Product Size 202*215*100mm 202*215*100mm 218*265*100mm 218*265*100mm
Weight 1.9kg (Net) 1.9kg (Net) 2.6kg (Net) 2.6kg (Net)
30A-60A MPPT Solar Charge Controller for 12V-48V Battery Systems 0
Ideal Applications
Home Solar Systems
RV & Marine Power
Telecom Stations
Agricultural Water Pumps
Why Choose Our MPPT Controller?
✓ 5-Year Warranty - Industry-leading reliability
✓ IP32 Waterproof Rating - Suitable for outdoor use
✓ OEM/ODM Available - Custom branding and specifications
