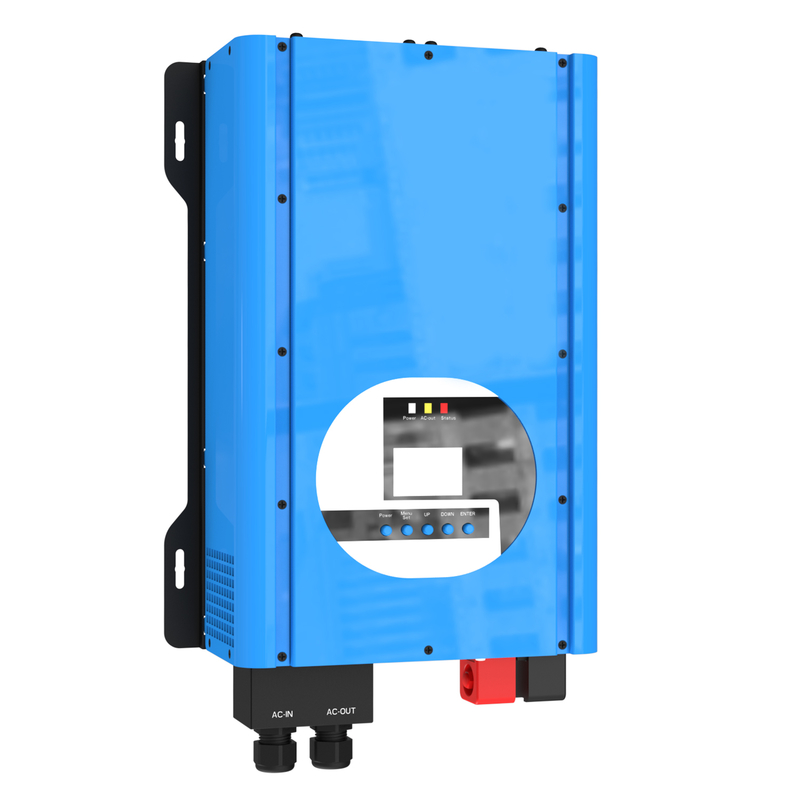

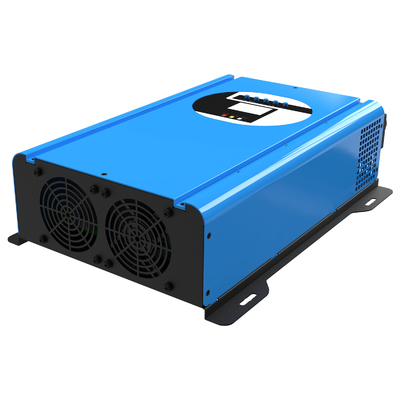

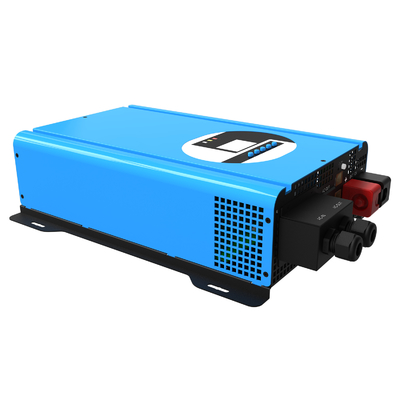

3KW Bidirectional Grid-Tied Inverter with LCD Display

3KW Bidirectional Grid-Tied Inverter with LCD Display

Brand Name:	SZSSTH/OEM
Model Number:	RA
MOQ:	5 pieces
Price:	CN¥1,315.79/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Network:

SDK

Type:

DC/AC Inverters

Output Type:

DUAL

Output Current:

Load

Output Frequency:

50Hz/60Hz

Size:

241*345*121 Mm

Weight:

6.1KG

Output Waveform:

Prue Sine Wave

Rated Power:

3000W

Peak Power:

6000W

Frequency:

50/60 HZ

Shell Material:

Lron

Applicable Battery Type:

Lead Acid/LiFePO4/NCM Batteny

Charging Method:

Constant Current/constant Voltage (CC/Cv)

Cooling Method:

Air Cooling

Operating Temperature:

-10℃~+45℃

Warranty:

12 Months

Highlight:

3KW bidirectional grid-tied inverter

grid-tied inverter with LCD display

bidirectional inverter with warranty

Product Description

3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display

Professional-grade power conversion solution for solar and off-grid applications, featuring true pure sine wave output for sensitive electronics.

Product Specifications

Network	SDK
Type	DC/AC Inverters
Output Type	DUAL
Output Current	Load
Output Frequency	50Hz/60Hz
Size	241345121 mm
Weight	6.1KG
Output waveform	Pure Sine Wave
Rated power	3000W
Peak power	6000W
Shell Material	Iron
Applicable Battery Type	Lead acid/LiFePO4/NCM battery
Charging Method	Constant current/constant voltage (CC/Cv)
Cooling Method	Air Cooling
Operating Temperature	-10℃~+45℃
Warranty	12 Months

Key Features & Benefits

3000W Continuous/6000W Surge Power - Handles heavy loads including refrigerators and power tools
True Pure Sine Wave Output - Cleaner-than-grid power for sensitive electronics
High-Efficiency Conversion (≥90%) - Minimizes energy waste
Intelligent LCD Display - Real-time monitoring of voltage, current, and power status
Multi-Protection System - Overload/short-circuit/overheat/low-voltage protection
Silent Operation - Temperature-controlled cooling fan
Bidirectional Grid Connection - Seamless integration with solar energy systems

Electrical Specifications

Input		Output
Voltage Range	180~264VAC	Rated Voltage	220Vac @≥12.5 VDC
Frequency Range	47-63HZ	Rated Current	13.64A @≥12.5VDC
Maximum Efficiency	≥91% @220VAC	Output Frequency	50Hz/60Hz
Maximum Current	15Amax	Maximum Power	3000W (peak power 6000W) @≥12VDC
PF value	≥0.95	Power Factor	≥0.95
Surge Current	＜60A Cold Start	THD	≤3% (resistive load)

Battery Specifications

Applicable Battery Type	Lead acid/LiFePO4/NCM battery
Charging Voltage	10.5V-14.5V
Charging Method	Constant current/constant voltage (CC/CV)
