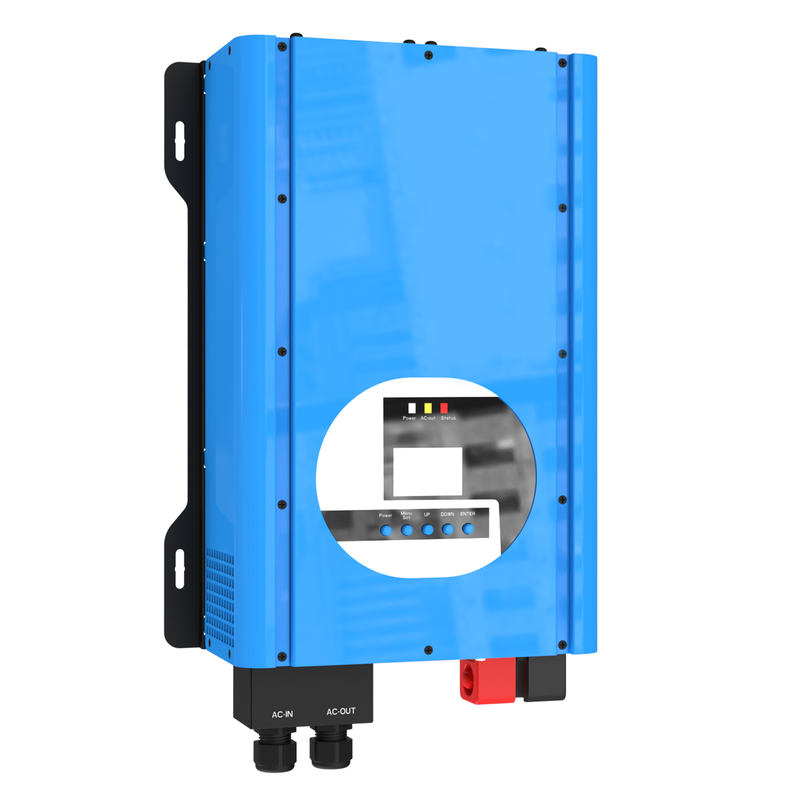

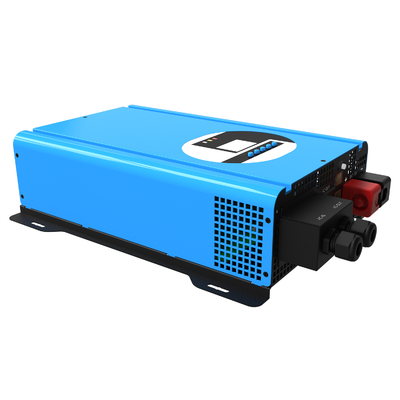

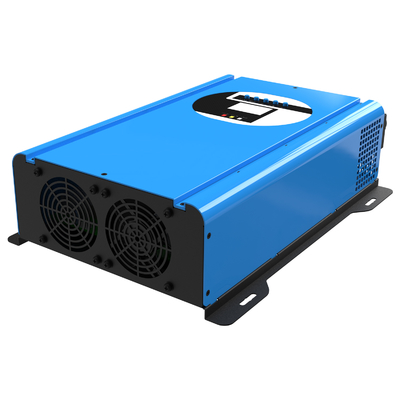

3000W Pure Sine Wave Inverter with Charger 12V DC to AC Converter

3000W Pure Sine Wave Inverter with Charger 12V DC to AC Converter

Brand Name:	SZSSTH/OEM
Model Number:	RA
MOQ:	5 pieces
Price:	CN¥1,315.79/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Network:

SDK

Type:

DC/AC Inverters

Output Type:

DUAL

Output Current:

Load

Output Frequency:

50Hz/60Hz

Size:

241*345*121 Mm

Weight:

6.1KG

Output Waveform:

Prue Sine Wave

Rated Power:

3000W

Peak Power:

6000W

Frequency:

50/60 HZ

Shell Material:

Lron

Applicable Battery Type:

Lead Acid/LiFePO4/NCM Batteny

Charging Method:

Constant Current/constant Voltage (CC/Cv)

Cooling Method:

Air Cooling

Operating Temperature:

-10℃~+45℃

Warranty:

12 Months

Highlight:

3000W pure sine wave inverter

12V DC to AC converter

bidirectional inverter with charger

Product Description

3000W Pure Sine Wave Inverter With Charger Industrial Grade 12V DC To AC Converter

Industrial-Grade Power Solution for Solar & Off-Grid Systems

Our low frequency pure sine wave inverter series (2000W-3000W) delivers reliable, stable power conversion from 12V DC battery banks to 220V AC household electricity. Designed for 24/7 continuous operation, these robust inverters are perfect for solar energy systems, home backup, and industrial applications where dependable power is critical.

Key Features & Benefits

Military-Grade Transformer Design - Handles heavy loads (air conditioners, power tools) with ease
True Low Frequency Technology - Superior surge capacity (6000W-9000W peak)
Pure Sine Wave Output - Cleaner than grid power for sensitive electronics
Built-in 100A Battery Charger - Fast charging for lead-acid/LiFePO4 batteries
Industrial Cooling System - Large aluminum heatsink + dual ball-bearing fan
Advanced Protections - Overload/short-circuit/overheat/low-voltage/reverse polarity

Technical Specifications

General Attributes

Attribute	Value
Network	SDK
Type	DC/AC Inverters
Output Type	DUAL
Output Current	Load
Output Frequency	50Hz/60Hz
Size	241345121 mm
Weight	6.1KG
Output waveform	Pure Sine Wave
Rated power	3000W
Peak power	6000W
Shell Material	Iron
Applicable Battery Type	Lead acid/LiFePO4/NCM battery
Charging Method	Constant current/constant voltage (CC/Cv)
Cooling Method	Air Cooling
Operating Temperature	-10℃~+45℃
Warranty	12 Months

Electrical Specifications

Parameter	Value
Input Voltage Range	10.5~16V DC
Maximum Efficiency	92%
Maximum Current	180A 12.5V/280A 12.5VDC
Output Rated Voltage	220Vac @≥12.5 VDC
Output Rated Current	13.64A @≥12.5VDC
Output Frequency	50Hz/60Hz
Maximum Power	3000W (peak power 6000W) @≥12VDC
Power Factor	≥0.95
THD	≤3% (resistive load)
