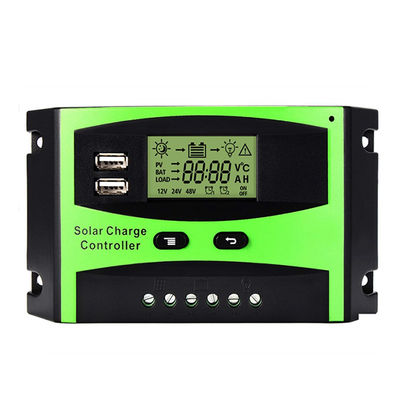

Factory Direct 30A 12V/24V PWM Solar Charge Controller: Essential Protection for Your Solar Investment

Name: Factory Direct 30A 12V/24V PWM Solar Charge Controller: Essential Protection for Your Solar Investment
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SZSSTH-MN1230, PWM
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH/OEM

Model Number: SZSSTH-MN1230, PWM

Payment & Shipping Terms

Price: CN¥124.27/pieces 1-99 pieces

Packaging Details: Packing: gift box
Quantity/carton: 50pcs in one carton

Supply Ability: 2500 Piece/Pieces per Week

Get Best Price

Product Details

Product Description

Highlight:

Type:	PWM	Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller
Work Time (h):	24h	Max PV Power:	1050w
Max PV Voltage:	100v	Rated Voltage:	12v 24v
Maximum Current:	30A	Warranty:	1 Years, 1 Year
Weight:	780g	Color:	Green
Product Name:	Solar Charge Controller Module	Keywords:	Solar Charge Controller 30a
Certificate:	CE ROHS	Port:	Yantian Or Shekou

Type:	PWM
Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller
Work Time (h):	24h
Max PV Power:	1050w
Max PV Voltage:	100v
Rated Voltage:	12v 24v
Maximum Current:	30A
Warranty:	1 Years, 1 Year
Weight:	780g
Color:	Green
Product Name:	Solar Charge Controller Module
Keywords:	Solar Charge Controller 30a
Certificate:	CE ROHS
Port:	Yantian Or Shekou

Factory Direct 30A 12V/24V PWM Solar Charge Controller: Essential Protection for Your Solar Investment

Factory Price 60A 12V/24V/48VDC Solar Charge Controller PWM for Solar Power System Home

Practical Features

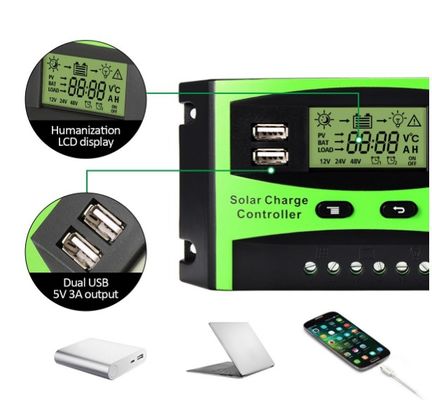

LED Status Indicators: Real-time monitoring of charging status (PWM pulse), battery level, and fault alerts through intuitive icons
All-Weather Durability: Industrial aluminum housing with passive cooling. Operates at -35°C to +55°C for harsh environments
Load Control: Programmable 12/24V DC output with low-voltage disconnect (LVD) to protect batteries from excessive drainage

Ideal Applications

Small Off-Grid Systems: Powers cabins, RVs, boats, and gate operators with efficient energy management
Backup Lighting: Reliable control for solar street lights, garden lamps, and security systems
Agricultural Use: Cost-effective solution for livestock fencing, irrigation controllers, and remote monitoring stations

Model	20A	30A	40A	50A	60A
System voltage	12V/24V, 24V /48V (Automatically switch)
The Maximum voltage of the solar panel input	50V (12/24V) ,100V (24V/48V)
Self loss	<13mA
Maximum charge current	20A	30A	40A	50A	60A
Maximum discharge current	20A	30A	40A	50A	60A
LVD	10.5V (9-11V), 21V (18V-22V), 42V (36V-44V)
LVR	12.6V(11-13.5V), 25.2V( 22-27V), 50.4V( 45-54V)
Battery overpressure protection	15V /30V /60V
Charging mode	PWM
Terminal scale	28-10 AWG
Waterproof level	IP32
Product size	1879047mm			19510750mm	18712257mm
Packing size	20010253mm			21011859mm	20013263mm
Weight	780g					850g
