30A MPPT Solar Regulator - 12V to 48V Auto-Switch Smart Charge Controller for Solar Panels

30A MPPT Solar Regulator - 12V to 48V Auto-Switch Smart Charge Controller for Solar Panels

Brand Name:	SZSSTH
Model Number:	MPS 100A
MOQ:	1 pieces
Price:	$118-129/pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000 piece/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE RHOS BSI

Document:

12V~48V MPPT solar charge c...er.pdf

Rated Voltage:

12v 24v 36v 48v

Maximum Current:

100A

MPPT Efficiency:

99%

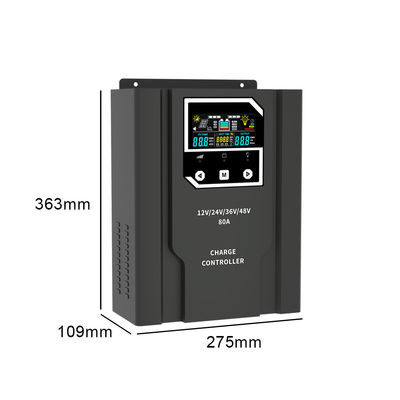

Size:

275*363*109mm

Weight:

4.56KG

Warranty:

1 Year

Product Name:

Mppt Regulator 100a

Packaging Details:

color box

Highlight:

12V 30A MPPT Solar Regulator

48V 30A MPPT Solar Regulator

Auto-Switch 30A MPPT Solar Regulator

Product Description

30A MPPT Solar Regulator - 12V to 48V Auto-Switch Smart Charge Controller for Solar Panels

Ideal Applications:

Off-grid home solar systems
RV and marine power solutions
Remote cabins and telecommunications
Agricultural and industrial solar installations

Engineered for reliability and built to withstand harsh environments, our MPPT Solar Charge Controller delivers professional-grade performance for both residential and commercial solar applications. The automatic operation ensures worry-free power management while the advanced MPPT technology guarantees you get the most from your solar investment.

Product Name		MPS 30A	MPS 40A	MPS 60A	MPS 80A	MPS 100A
System Rated Voltage		12/24/36/48VDC or Self-identification
Controller operating voltage range		12-64V
Lead-acid battery type		Maintenance-free(default) /Colloid /Liquid /Custom
Lithium battery type		Lithium Iron Phosphate /Ternary Lithium /Custom
Rated charging current		30A	40A	60A	80A	100A
Rated charging power		390W /12V	540W/12V	800W/12V	1040W/12V	1300W/12V
			1080W/24V	1600W/24V	2080W/24V	2600W/24V
			1620W/36V	2400W/36V	3120W/36V	3900W/36V
			2160W/48V	3200W/48V	4160W/48V	5200W/48V
Maximum open ccircuit voltage of photovoltaic modules		150V (under the lowest temperature condition) 138V (under 25℃ condition)

Maximum power point operating voltage range	12V System	20~150VDC
	24V System	36~150VDC
	36V System	48~150VDC
	48V System	64~150VDC
Tracking efficiency		≥99.5%
Maximum conversion efficiency		97.50%
Temperature compensation coefficient		-3mV/ ℃ /2V
Statuc loss		350mA/12V: 170mA/24V: 85mA/48V			700mA/12V: 350mA/24V: 175mA/48V
DC Load output voltage		Can be turned on in 12V/24V Moode
DC load rated output current		40A
DC load output control		Normally open ormally closed mode /Time control mode /Light control mode
Protective function		PV input reverse connection protection
		Battery input reverse connection protection
		Battery overcharge protection
		Battery under voltage protection
		Battery over tempearature protection
		Machine over temperature protection
Colling Method		Wind cooling
Way of communication		RS485
LDC Backlight time		Default 60S, Backlight mode cab be set
Environmental parameters
Working environment temperature range		-20℃ ~＋50℃
Storage temperature range		-40℃ ~＋70℃
Relative humidity range		0 ~ 90%RH
Mechanical parameters
Dimensions		21015080mm	219300110mm	219300110mm	275363109mm	275363109mm
Recommened wiring		9AWG/6mm²	7AWG/6mm²	6AWG/6mm²	4AWG/6mm²	2AWG/6mm²
Net weight		1.45kg	2.94kg	2.94kg	4.56kg	4.56kg

30A MPPT Solar Regulator - 12V to 48V Auto-Switch Smart Charge Controller for Solar Panels 0

30A MPPT Solar Regulator - 12V to 48V Auto-Switch Smart Charge Controller for Solar Panels 2
