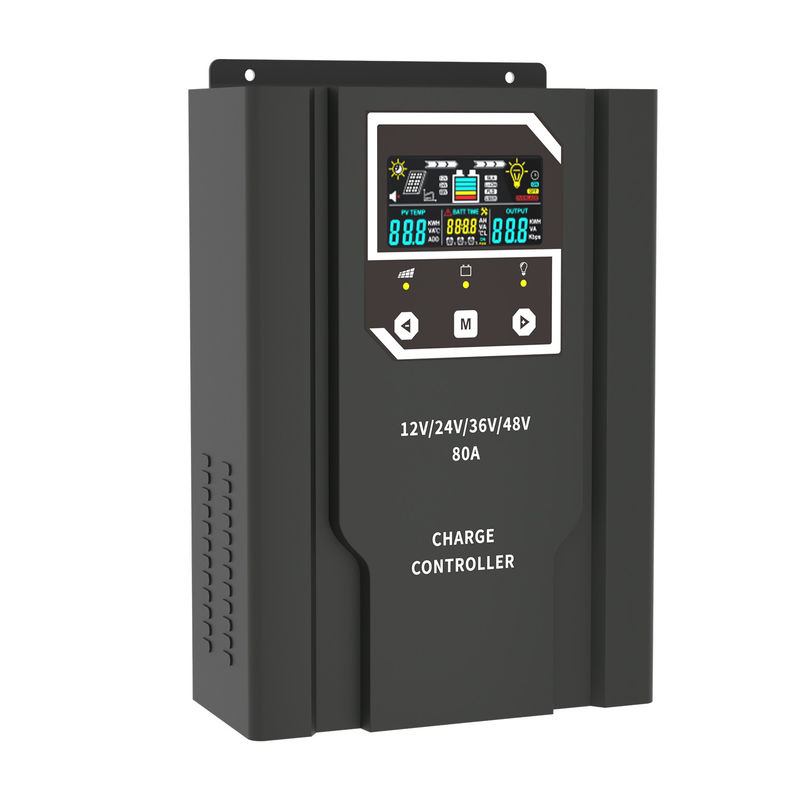

80A MPPT Solar Panel Regulator LCD Screen Solar Battery Charge Controller

Name: 80A MPPT Solar Panel Regulator LCD Screen Solar Battery Charge Controller
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: MPS 100A
Price: 114.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Certification: CE RHOS BSI

Model Number: MPS 100A

Document: 12V~48V MPPT solar charge c...er.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $110-119/pieces

Packaging Details: color box

Delivery Time: 7 Days

Payment Terms: D/A,L/C,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5000 piece/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                80A Solar Battery Charge Controller, 80A MPPT Solar Panel Regulator, LCD Screen Solar Battery Charge Controller


Rated Voltage:	12v 24v 36v 48v	Maximum Current:	80A
MPPT Efficiency:	99%	Size:	275363109mm
Weight:	4.56KG	Warranty:	1 Year
Cooling Fan:	Yes

Rated Voltage:	12v 24v 36v 48v
Maximum Current:	80A
MPPT Efficiency:	99%
Size:	275363109mm
Weight:	4.56KG
Warranty:	1 Year
Cooling Fan:	Yes

80A MPPT Solar Panel Regulator LCD Screen Solar Battery Charge Controller

High-Efficiency MPPT Solar Charge Controller – Power Your World Smarter

Key Features:

Wide Voltage Range: Supports 12V/24V/36V/48V systems automatically, with a PV input range of 18-150VDC.
Exceptional Efficiency: 98% power generation efficiency maximizes solar energy harvest.
Multiple Current Options: Available in 30A, 40A, 50A, 60A, 80A, and 100A models to suit diverse energy needs.
Intelligent Control: Built-in temperature sensor and cooling fan ensure optimal performance and longevity.
User-Friendly Interface: HD LCD display with intuitive indicators for solar panel, charging status, and DC load monitoring.
Advanced Protections: Comprehensive safety features including overcharge, over-discharge, and short-circuit protection.
Flame Retardant Enclosure: Class V-0 rated for enhanced safety.

Smart Connectivity:

Remote Monitoring: Supports PC software, WiFi module expansion, and APP cloud monitoring via RS485 communication.
Easy Installation: Clearly labeled terminals for solar panels, batteries, DC loads, and temperature sensors.

Product Name		MPS 30A	MPS 40A	MPS 60A	MPS 80A	MPS 100A
System Rated Voltage		12/24/36/48VDC or Self-identification
Controller operating voltage range		12-64V
Lead-acid battery type		Maintenance-free(default) /Colloid /Liquid /Custom
Lithium battery type		Lithium Iron Phosphate /Ternary Lithium /Custom
Rated charging current		30A	40A	60A	80A	100A
Rated charging power		390W /12V	540W/12V	800W/12V	1040W/12V	1300W/12V
			1080W/24V	1600W/24V	2080W/24V	2600W/24V
			1620W/36V	2400W/36V	3120W/36V	3900W/36V
			2160W/48V	3200W/48V	4160W/48V	5200W/48V
Maximum open ccircuit voltage of photovoltaic modules		150V (under the lowest temperature condition) 138V (under 25℃ condition)

Maximum power point operating voltage range	12V System	20~150VDC
	24V System	36~150VDC
	36V System	48~150VDC
	48V System	64~150VDC
Tracking efficiency		≥99.5%
Maximum conversion efficiency		97.50%
Temperature compensation coefficient		-3mV/ ℃ /2V
Statuc loss		350mA/12V: 170mA/24V: 85mA/48V			700mA/12V: 350mA/24V: 175mA/48V
DC Load output voltage		Can be turned on in 12V/24V Moode
DC load rated output current		40A
DC load output control		Normally open ormally closed mode /Time control mode /Light control mode
Protective function		PV input reverse connection protection
		Battery input reverse connection protection
		Battery overcharge protection
		Battery under voltage protection
		Battery over tempearature protection
		Machine over temperature protection
Colling Method		Wind cooling
Way of communication		RS485
LDC Backlight time		Default 60S, Backlight mode cab be set
Environmental parameters
Working environment temperature range		-20℃ ~＋50℃
Storage temperature range		-40℃ ~＋70℃
Relative humidity range		0 ~ 90%RH
Mechanical parameters
Dimensions		21015080mm	219300110mm	219300110mm	275363109mm	275363109mm
Recommened wiring		9AWG/6mm²	7AWG/6mm²	6AWG/6mm²	4AWG/6mm²	2AWG/6mm²
Net weight		1.45kg	2.94kg	2.94kg	4.56kg	4.56kg

80A MPPT Solar Panel Regulator LCD Screen Solar Battery Charge Controller 0

80A MPPT Solar Panel Regulator LCD Screen Solar Battery Charge Controller 2
