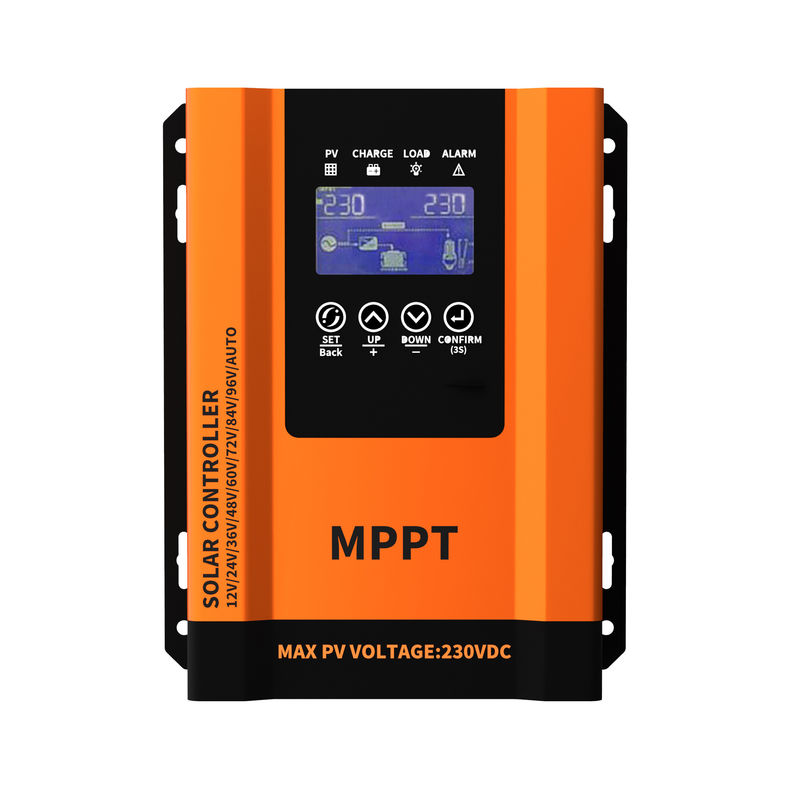

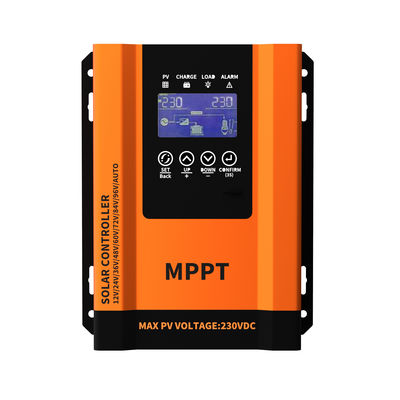

12V 24V 36V 48V 96V Solar Controller 30A Mppt Solar Charge Controller

12V 24V 36V 48V 96V Solar Controller 30A Mppt Solar Charge Controller

Brand Name:	SZSSTH
Model Number:	SSTH-30
MOQ:	1 pieces
Price:	$78-85/pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000 piece/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE RHOS BSI

Document:

12V~96V MPPT controller spe...on.pdf

Type:

MPPT

Max PV Power:

Auto Tracking The Max Power

Rated Current:

30A

MPPT Efficiency:

97%

Protection Level:

IP 21

Charge Mode:

MPPT Automatic Max Power Tracking

Packaging Details:

color box

Highlight:

30A Solar Charge Controller

30A Mppt Solar Charge Controller

Product Description

Key Features

Advanced MPPT Technology: Automatically tracks the solar panel’s maximum power point, improving energy conversion by up to 30%.

Wide Input Voltage Range: Supports 0-230V open-circuit voltage, adaptable to various solar panel configurations.

Multi-Voltage Compatibility: Auto-detects 12V/24V/36V/48V/60V/72V/84V/96V system voltages for flexible deployment.

Smart Charging Management: Features fast charge, balanced charge, and float charge modes to extend battery lifespan.

Comprehensive Protection: Over-voltage, over-current, short-circuit, reverse polarity, and temperature protection for safe operation.

Lithium Battery Activation: Supports lithium battery activation and can operate without a battery (DC output enabled).

PRODUCT		MPPT SOLAR CONTROLLER
Model		30A	40A	50A	60A
Charging Mode		MPPT automatic maximum power tracking
Charging Method		MPPT tracks maximum power, fast chargebalanced charge, and float charge
BatteryType	Lead Acid	Single voltage 3.2 number of strings(strings-45 strings adjustable)
	Gel	Single voltage 3.7 number of strings(2strings-45 strings adjustable)
	LifePo 4	Adjustable limit voltage for equal chargefloat charge and DC discharge: 8V-170V
	Li-ion	With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DCoutput
	USER	0-230V
With lithium battery activation function		With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage		0-230V
Max.pv Input Power		12V-18V540W	12V-18V720W	12V-18W900W	12V-18W1080W
		24V-36V1080W	24V-36V1440W	24V-36V1800W	24V-36V2160W
		36-54V1620W	36V-54V2160W	36V-54V2700W	36V-54V3240W
		48V-72V2160W	48V-72V2880W	48V-72V3600W	48V-72V4320W
		96V-144V4320W	96V-144V5760W	96V-144V7200W	96V-144V8640W
Product size		202215100mm	202215100mm	218265100mm	218265100mm
NWJG.W		30A NW:19KGG.W2.2KG	40A:N.W1.9KGG.W2.2KG	50A:NW2.6KGG.W3KG	60A: NW2.6KGG.W3KG

12V 24V 36V 48V 96V Solar Controller 30A Mppt Solar Charge Controller 0
