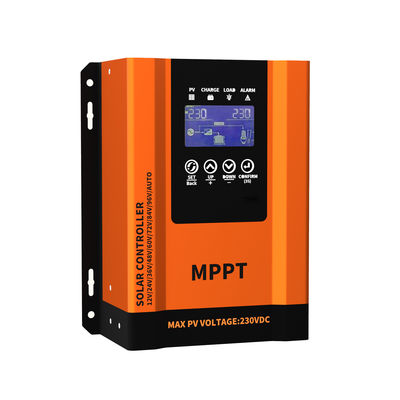

MPPT Solar Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V 50A Rated Current 30A 40A 50A 60A Maximum Current

Name: MPPT Solar Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V 50A Rated Current 30A 40A 50A 60A Maximum Current
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SSTH
Price: 103.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Certification: CE RHOS BSI

Model Number: SSTH

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $85-121/pieces

Packaging Details: color box

Delivery Time: 7 Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5000 piece/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                84V MPPT Solar Charge Controller, 96V MPPT Solar Charge Controller, 50A MPPT Solar Charge Controller


Type:	MPPT	Max PV Voltage:	230V
Product Name:	MTTP Controller 30A 40A 50A 60A	Rated Current:	50A
Display:	LCD Display With Touch Button	Maximum Current:	30A 40A 50A 60A
Protection Level:	IP 21

Type:	MPPT
Max PV Voltage:	230V
Product Name:	MTTP Controller 30A 40A 50A 60A
Rated Current:	50A
Display:	LCD Display With Touch Button
Maximum Current:	30A 40A 50A 60A
Protection Level:	IP 21

MPPT Solar Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V 50A Rated Current 30A 40A 50A 60A Maximum Current

MPPT Solar Charge Controller – Power Your Solar System Efficiently

Advanced MPPT Technology for Maximum Energy Harvesting

Upgrade your solar power system with our high-efficiency MPPT Solar Charge Controller, designed to deliver optimal performance for 12V–96V systems. With automatic maximum power point tracking (MPPT), this controller ensures up to 30% more energy conversion compared to traditional PWM controllers, maximizing your solar investment.

Key Features

Wide Compatibility: Supports 12V–96V battery systems (lead-acid, gel, LiFePO4, and Li-ion) with adjustable voltage settings.
High-Current Charging: Available in 30A, 40A, 50A, and 60A models to match your energy needs.
Lithium Battery Activation: Unique function allows operation even without a battery when PV input is present.
Robust Protection: Overvoltage, short-circuit, and reverse polarity protection ensure system safety.
User-Friendly Interface: Digital display with intuitive buttons for real-time monitoring and parameter adjustments.

PRODUCT		MPPT SOLAR CONTROLLER
Model		30A	40A	50A	60A
Charging Mode		MPPT automatic maximum power tracking
Charging Method		MPPT tracks maximum power, fast chargebalanced charge, and float charge
BatteryType	Lead Acid	Single voltage 3.2 number of strings(strings-45 strings adjustable)
	Gel	Single voltage 3.7 number of strings(2strings-45 strings adjustable)
	LifePo 4	Adjustable limit voltage for equal chargefloat charge and DC discharge: 8V-170V
	Li-ion	With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DCoutput
	USER	0-230V
With lithium battery activation function		With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage		0-230V
Max.pv Input Power		12V-18V540W	12V-18V720W	12V-18W900W	12V-18W1080W
		24V-36V1080W	24V-36V1440W	24V-36V1800W	24V-36V2160W
		36-54V1620W	36V-54V2160W	36V-54V2700W	36V-54V3240W
		48V-72V2160W	48V-72V2880W	48V-72V3600W	48V-72V4320W
		96V-144V4320W	96V-144V5760W	96V-144V7200W	96V-144V8640W
Product size		202215100mm	202215100mm	218265100mm	218265100mm
NWJG.W		30A NW:19KGG.W2.2KG	40A:N.W1.9KGG.W2.2KG	50A:NW2.6KGG.W3KG	60A: NW2.6KGG.W3K

MPPT Solar Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V 50A Rated Current 30A 40A 50A 60A Maximum Current 0

MPPT Solar Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V 50A Rated Current 30A 40A 50A 60A Maximum Current 3
