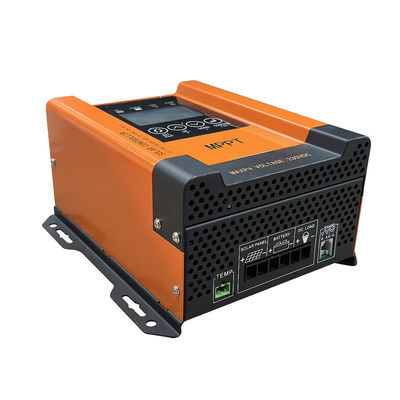

60A 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Battery Charger Controller with IP 21 Protection Level

Name: 60A 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Battery Charger Controller with IP 21 Protection Level
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SSTH-60A
Price: 116.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Certification: CE RHOS BSI

Model Number: SSTH-60A

Document: 12V~96V MPPT controller spe...on.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $112-121/pieces

Packaging Details: color box

Delivery Time: 7 Days

Payment Terms: L/C,D/A,MoneyGram,Western Union,T/T,D/P

Supply Ability: 5000 piece/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                72V Solar Charge Battery Charger Controller, 84V Solar Charge Battery Charger Controller


Type:	MPPT	Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller, Solar Working Station,
Max PV Power:	Auto Tracking The Max Power	Display:	LCD Display With Touch Button
Protection Level:	IP 21	Charge Mode:	MPPT Automatic Max Power Tracking

Type:	MPPT
Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller, Solar Working Station,
Max PV Power:	Auto Tracking The Max Power
Display:	LCD Display With Touch Button
Protection Level:	IP 21
Charge Mode:	MPPT Automatic Max Power Tracking

60A 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Battery Charger Controller with IP 21 Protection Level

MPPT Solar Charge Controller – Efficient Power Management for Your Solar System

Advanced MPPT Technology for Optimal Performance

Our MPPT Solar Charge Controller series (30A, 40A, 50A, 60A) is designed to maximize the efficiency of your solar power system. Utilizing advanced Maximum Power Point Tracking (MPPT) technology, it ensures fast charging, balanced charging, and float charging, delivering up to 30% more energy compared to conventional PWM controllers.

Key Features

Wide Compatibility: Supports system voltages from 12V to 96V, auto-detecting for seamless integration.
High Input Voltage: Handles PV open-circuit voltages up to 230V DC, accommodating a variety of solar panel configurations.
Multi-Battery Support: Compatible with Lead Acid, Gel, LifePo4, and Li-ion batteries, with adjustable voltage settings for equalization and float charging.
Lithium Battery Activation: Unique function allows activation of lithium batteries even without an existing battery connection.
Robust Protection: Includes overvoltage, short-circuit, and reverse polarity protection, housed in a V-0 flame-retardant enclosure.
User-Friendly Interface: Features a digital display, intuitive buttons for parameter adjustment, and indicators for solar charging, load status, and warnings.

PRODUCT		MPPT SOLAR CONTROLLER
Model		30A	40A	50A	60A
Charging Mode		MPPT automatic maximum power tracking
Charging Method		MPPT tracks maximum power, fast chargebalanced charge, and float charge
BatteryType	Lead Acid	Single voltage 3.2 number of strings(strings-45 strings adjustable)
	Gel	Single voltage 3.7 number of strings(2strings-45 strings adjustable)
	LifePo 4	Adjustable limit voltage for equal chargefloat charge and DC discharge: 8V-170V
	Li-ion	With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DCoutput
	USER	0-230V
With lithium battery activation function		With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage		0-230V
Max.pv Input Power		12V-18V540W	12V-18V720W	12V-18W900W	12V-18W1080W
		24V-36V1080W	24V-36V1440W	24V-36V1800W	24V-36V2160W
		36-54V1620W	36V-54V2160W	36V-54V2700W	36V-54V3240W
		48V-72V2160W	48V-72V2880W	48V-72V3600W	48V-72V4320W
		96V-144V4320W	96V-144V5760W	96V-144V7200W	96V-144V8640W
Product size		202215100mm	202215100mm	218265100mm	218265100mm
NWJG.W		30A NW:19KGG.W2.2KG	40A:N.W1.9KGG.W2.2KG	50A:NW2.6KGG.W3KG	60A: NW2.6KGG.W3KG

60A 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Battery Charger Controller with IP 21 Protection Level 0

60A 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Battery Charger Controller with IP 21 Protection Level 2
