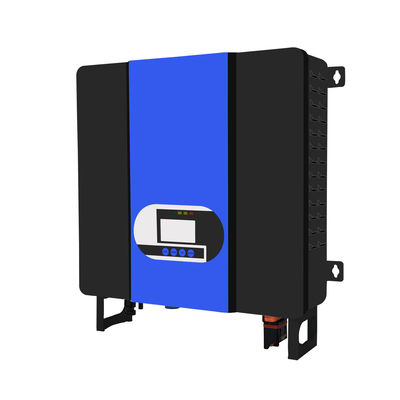

AC Voltage 230VAC 3.5KW 24V MPPT Wifi All in One Home Hybrid Inverter for Off Grid Applications

Name: AC Voltage 230VAC 3.5KW 24V MPPT Wifi All in One Home Hybrid Inverter for Off Grid Applications
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SUF3000S4A1
Price: 200.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Certification: CE RHOS BSI

Model Number: SUF3000S4A1

Document: 3K&5KW Off-grid-Inverter.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: $192.00-$208.00/PCS

Packaging Details: Carton Box

Delivery Time: 7 Work Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                24V MPPT Wifi Hybrid Inverter, 3.5KW Hybrid Inverter, AC Voltage 230VAC Hybrid Inverter


Type:	DC/AC Inverters	Inverter Efficiency:	93%
Weight:	7.5kg	Product Name:	3.5KW Hybrid Solar Inverter
Communication:	WiFi/GPRS(Optional)	Protection:	Overload
AC Voltage:	230VAC	Warranty:	1 Year

Type:	DC/AC Inverters
Inverter Efficiency:	93%
Weight:	7.5kg
Product Name:	3.5KW Hybrid Solar Inverter
Communication:	WiFi/GPRS(Optional)
Protection:	Overload
AC Voltage:	230VAC
Warranty:	1 Year

AC Voltage 230VAC 3.5KW 24V MPPT Wifi All in One Home Hybrid Inverter for Off Grid Applications

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

Compatible with most common low-voltage batteries (lead-acid and lithium batteries).
The 5K model supports parallel operation for up to 6 units.
Maximum charging current of up to 130A.
LCD screen for safe and intuitive user interaction.
Remote monitoring via mobile app (Wi-Fi) and seamless BMS integration.
Intelligent fan cooling design for optimal performance.

Technical Specifications:

Parameter	3KW Model (SUFE0005AA1)	5KW Model (SUFE0005AA1)
Battery Input	24VAC	48VAC
Nominal Power (W)	3000	6000
Nominal Power (VA)	3000	5000
Max PV Array Power	4000W	6000W
MPPT Voltage Range	100VAC–34VAC	100VAC–34VAC
Max Solar Charge Current	150A	80A
AC Output Voltage	230VAC ± 3%	230VAC ± 3%
Frequency	50/60Hz	50/60Hz
Efficiency (Peak)	33%	33%
Waveform	Pure Sine Wave	Pure Sine Wave
Protection Rating	IP54	IP54
Operating Temperature	0°C to 30°C	0°C to 30°C
Weight	2.5 kg	3 kg

Advanced Protection & Safety:

PV Over Voltage/Current Protection
Battery Over Voltage/Current Protection
Output Short Circuit/Over Voltage Protection
Type II DC Surge Protection

Ideal For: Off-grid solar systems, home appliances, and personal computing devices.

Connectivity & Control:

User-friendly APP + LED display interface.
Multiple communication options: USB, Wi-Fi, GPRS, RS485/CAN, Dry-contact.

Reliable & Durable: Designed to operate efficiently in diverse environments (up to 2000m altitude, 20–35% humidity).

Why Choose Our Inverter?
✔ High efficiency with pure sine wave output.
✔ Scalable parallel capacity for expanded power needs.
✔ Robust protection mechanisms for long-term reliability.

Upgrade your energy independence with our cutting-edge off-grid inverters!

SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
		6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED
Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (WHD mm)	300450110.5	300450110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]
Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes
