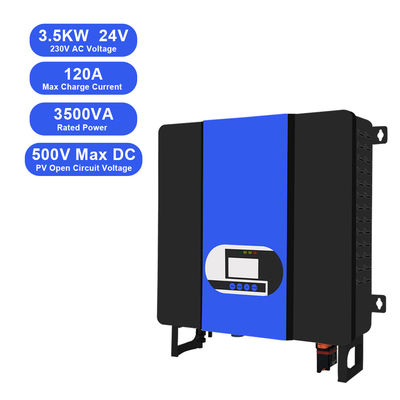

3.5KW 24V to 110V 220V 230V All in One Hybrid Inverter with MPPT Solar Controller and WiFi/GPRS Communication

3.5KW 24V to 110V 220V 230V All in One Hybrid Inverter with MPPT Solar Controller and WiFi/GPRS Communication

Brand Name: SZSSTH
Model Number: SUF3000S4A1
MOQ: 1PCS
Price: $192.00-$208.00/PCS
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100000PCS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE RHOS BSI
Document:
3K&5KW Off-grid-Inverter.pdf
Product Name:
3.5KW Hybrid Solar Inverter
Inverter Type:
Hybrid Off Grid Solar Inverter
Controller Type:
MPPT Solar Controller
Communication:
WiFi/GPRS(Optional)
Battery Type:
Lead Acid \ Lithium
Protection:
Overload
Rated Power:
3.5KW
AC Voltage:
230VAC
Max PV Voltage:
500V
Packaging Details:
Carton Box
Highlight:

24V Solar Hybrid Inverter

,

MPPT Solar Hybrid Inverter

,

3.5KW Solar Hybrid Inverter

Product Description

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

  • Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).

  • Scalable Power: The 5KW model allows parallel operation of up to 6 units for expanded capacity.

  • High Charging Efficiency: Maximum charging current of 130A for rapid energy replenishment.

  • User-Friendly Interface: Equipped with an LCD screen for safe and intuitive interaction.

  • Remote Monitoring: Monitor and control via mobile app (Wi-Fi/GPRS) with seamless BMS integration.

  • Advanced Cooling: Intelligent fan design ensures optimal thermal management.

Technical Specifications:

  • Output Waveform: Pure sine wave for stable and clean power.

  • Efficiency: Peak efficiency of 33%.

  • Protection: Comprehensive safeguards including over-voltage, over-current, short-circuit, and Type II DC surge protection.

  • Durability: IP54-rated enclosure for dust and water resistance.

  • Environmental Adaptability: Operates in temperatures from 0°C to 30°C and withstands storage conditions of -15°C to 60°C.

Ideal For: Off-grid solar systems, home backup power, and remote applications requiring reliable energy independence.

Choose reliability. Choose scalability. Power your world with our 3K&5KW Off-Grid Inverter.

SUF3000S4A1
SUF5000S4A1
BatteyInput
Battery Type
Li-lon/Lead-acid
Li-lon/Lead-acid
BatteryVoltage
24Vdc
48Vdc
Inverter Output
Nominal Power(W)
3000
5000
Nominal Apparent Power (VA)
3000
5000
Paralll Capacity
No
Yes.9 units maximum
AC Voltage Regulation (Battery Mode)
230Vac±5%@50/60Hz
230Vac±5%@50/60Hz
Surge Power (VA)
6000
10000
Eficiency (peak)
93%
93%
Waveform
Pure sine wave
Pure sine wave
Transfer Time
10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)
4000
6000


MPPT Range @OperatingVoltage
120Vdc-430Vdc
120Vdc-430Vdc
Number of Independent MPP Trackers
1
1
Number of Strings Per MPPT
1
1
Max,Input Current Per MPPT(A)
16
18
Max.PV Array Open Circuit Voltage (V)
500Vdc
500Vd
Max Solar Charge Current (A)
120
80
Ac Charger
Max.AC Charge Current(A)
120
80
AC Input Voltage (V)
230Vac
230Vac
Voltage Range (V)
170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)
50/60
50/60
General
UserInterface
APP+LCD Display+LED
Communication
USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating
IP54
IP54
Dimension (W*H*D mm)
300*450*110.5
300*450*110.5
Weight (kg)
7.5 8
Relative Humidity
20%~95%
20%~95%
Max.Operating Altitude (m)
2000m, >1000m derating
2000m,>1000m derating
Operating Temperature (°C)
0~50
0~50
Storage Temperature (°C)
[-15~60]
[-15~60]
Protection
PV Over VoltageProtection
Yes
PV Over Current Protection
Yes
Battery Over Voltage Protection
Yes
Battery Over Current Protection
Yes
AC Surge Protection
Type II
Output OverCurrentProtection
Yes
Output Short Circuit Protection
Yes
Output OverVoltage Protection
Yes

3.5KW 24V to 110V 220V 230V All in One Hybrid Inverter with MPPT Solar Controller and WiFi/GPRS Communication 03.5KW 24V to 110V 220V 230V All in One Hybrid Inverter with MPPT Solar Controller and WiFi/GPRS Communication 1

3.5KW 24V to 110V 220V 230V All in One Hybrid Inverter with MPPT Solar Controller and WiFi/GPRS Communication 2
