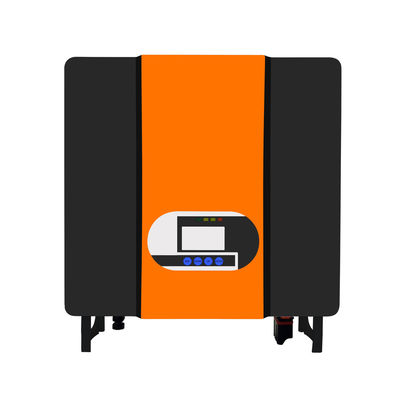

Hybrid Off Grid Solar Inverter 5.5KW 48V MPPT Wifi Charger with LCD Display and More

Hybrid Off Grid Solar Inverter 5.5KW 48V MPPT Wifi Charger with LCD Display and More

Brand Name:	SZSSTH
Model Number:	SUF5000S4A1
MOQ:	1PCS
Price:	$208.00-258.00/PCS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000PCS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE RHOS BSI

Document:

3K&5KW Off-grid-Inverter.pdf

Type:

DC/AC Inverters

Inverter Efficiency:

93%

Weight:

8kg

Product Name:

5.5KW Hybrid Solar Inverter

Inverter Type:

Hybrid Off Grid Solar Inverter

Battery Type:

Lead Acid \ Lithium

AC Voltage:

230VAC

Display:

LCD Display

Max PV Voltage:

500V

Packaging Details:

Carton Box

Highlight:

LCD Display Solar Hybrid Inverter

48V Solar Hybrid Inverter

5.5KW Solar Hybrid Inverter

Product Description

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).
Parallel Capacity: The 5KW model allows up to 9 units in parallel for expanded power needs.
High Charging Efficiency: Maximum solar charge current of 150A (3KW) and 80A (5KW), ensuring rapid energy storage.
User-Friendly Interface: Equipped with an LCD screen for safe and intuitive interaction.
Remote Monitoring: Real-time system tracking via mobile app and seamless integration with BMS.
Advanced Cooling: Intelligent fan design for optimal heat dissipation.

Technical Specifications:

Output Waveform: Pure sine wave, ideal for sensitive electronics.
Efficiency: Peak efficiency of 33%.
Protection: Comprehensive safeguards including PV/battery overvoltage/overcurrent protection, short circuit, and overvoltage protection for outputs.
Durability: IP54-rated enclosure, resistant to dust and water splashes.
Flexible Connectivity: Options for USB, Wi-Fi, GPRS, and CAN communication.

Environmental Adaptability:

Operating Temperature: 0°C to 30°C
Storage Temperature: -15°C to 60°C
Humidity Range: 20% ~ 35%
Max Operating Altitude: 2000m

Ideal For: Off-grid solar systems, home appliances, and personal computing devices requiring reliable and clean power.

Choose reliability. Choose efficiency. Power your independence with our 3K&5KW Off-Grid Inverter.

SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
		6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED
Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (WHD mm)	300450110.5	300450110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]
Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes
