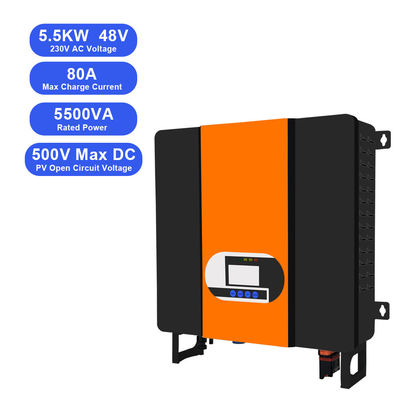

LCD Display 5.5KW 48V to 110V 220V MPPT Solar Charger Hybrid Inverter with AC Voltage 230VAC

Name: LCD Display 5.5KW 48V to 110V 220V MPPT Solar Charger Hybrid Inverter with AC Voltage 230VAC
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SUF5000S4A1
Price: 233.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Certification: CE RHOS BSI

Model Number: SUF5000S4A1

Document: 3K&5KW Off-grid-Inverter.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: $208.00-258.00/PCS

Packaging Details: Carton Box

Delivery Time: 7 Work Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                220V Solar Hybrid Inverter, 5.5KW Solar Hybrid Inverter, 110V Solar Hybrid Inverter


Size:	300450110.5mm	Type:	DC/AC Inverters
Controller Type:	MPPT Solar Controller	Rated Power:	5.5KW
AC Voltage:	230VAC	Display:	LCD Display
Max PV Voltage:	500V

Size:	300450110.5mm
Type:	DC/AC Inverters
Controller Type:	MPPT Solar Controller
Rated Power:	5.5KW
AC Voltage:	230VAC
Display:	LCD Display
Max PV Voltage:	500V

LCD Display 5.5KW 48V to 110V 220V MPPT Solar Charger Hybrid Inverter with AC Voltage 230VAC

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).
Parallel Capacity: The 5KW model allows parallel operation of up to 6 units for expanded power needs.
High Charging Efficiency: Maximum solar charge current of 150A (3KW) and 80A (5KW), ensuring rapid energy storage.
User-Friendly Interface: Equipped with an LCD screen for safe and intuitive interaction.
Remote Monitoring: Real-time system tracking via mobile app and seamless integration with BMS.
Intelligent Cooling: Smart fan design for optimal thermal management.

Technical Specifications:

Output Waveform: Pure sine wave, ideal for sensitive electronics.
Efficiency: Peak efficiency of 33% for reliable performance.
Protection: Comprehensive safeguards including over-voltage, over-current, short-circuit, and Type II DC surge protection.
Durability: IP54-rated enclosure for dust and water resistance.
Flexible Connectivity: Supports USB, WiFi, GPRS, RS485, CAN, and dry-contact communication.

Environmental Adaptability:

Operating Conditions: 0°C to 30°C, 20%-35% humidity, and altitudes up to 2000m.
Compact Design: Dimensions of 300450110.5mm (3KW: 2.5kg; 5KW: 3kg).

Ideal For: Off-grid solar systems, home appliances, and personal computing devices requiring stable, clean power.

Why Choose Us? Reliable, scalable, and engineered for seamless renewable energy integration.

SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
		6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED
Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (WHD mm)	300450110.5	300450110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]
Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes
