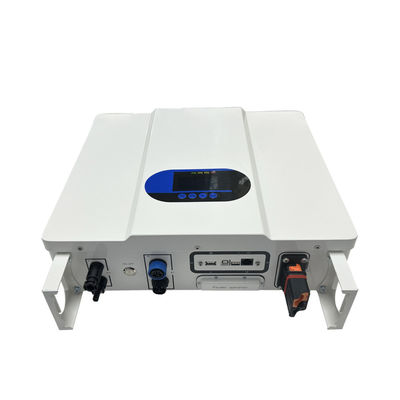

5000 Watt 48V MPPT Charge Controller Off Grid Hybrid Inverter Max Pv Voltage 450V for Home Solar Power System

5000 Watt 48V MPPT Charge Controller Off Grid Hybrid Inverter Max Pv Voltage 450V for Home Solar Power System

Brand Name:	SZSSTH
Model Number:	SUF5000S4A1
MOQ:	1pieces
Price:	$208.00-258.00/pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE Rhos BSI

Document:

3K&5KW Off-grid-Inverter.pdf

Controller Type:

MPPT Solar Controller

Max Pv Voltage:

450V

Operation Phase:

Three Phase

Number Of Cells:

60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

System Energy:

5KW

Type:

MPPT

Ac Voltage:

230VAC

Rated Battery Voltage:

48V

Application:

Home Solar Power System

Output Frequency:

50Hz/60Hz Auto Sensing

Battery Type:

Lead-acid

Frame:

Anodized Aluminium Alloy

Packaging Details:

Carton Box

Highlight:

48V MPPT Charge Controller

5000 Watt MPPT Charge Controller

Product Description

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).
Parallel Capacity: The 5K model allows up to 9 units in parallel for expanded power needs.
High Charging Efficiency: Maximum solar charge current of 150A (3K) and 80A (5K), ensuring rapid energy storage.
User-Friendly Interface: Equipped with an LCD screen for safe and intuitive interaction.
Remote Monitoring: Monitor and control the inverter via WiFi/APP, compatible with BMS for seamless integration.
Intelligent Cooling: Smart fan design ensures optimal thermal management.
Pure Sine Wave Output: Delivers stable and clean power for sensitive electronics.

Technical Specifications:

Nominal Power: 3000W (3K) / 5000VA (5K)
Battery Voltage: 24VAC (3K) / 48VAC (5K)
Peak Efficiency: 93%
MPPT Range: 100–450V (3K) / 100–450V (5K)
Max PV Array Power: 4000W (3K) / 6000W (5K)
Protection: Comprehensive safeguards including over-voltage, over-current, short-circuit, and Type II DC surge protection.
Durability: IP54-rated enclosure, operating temperature range of 0–30°C, and compact design (300×450×110.5mm).

Ideal For:
Off-grid solar systems, residential backup power, and remote applications requiring reliable, high-efficiency energy conversion.

Why Choose Us?
Combining cutting-edge technology with robust protection features, our inverters ensure uninterrupted power supply while maximizing energy harvest. Easy to install, monitor, and scale—perfect for sustainable living.

SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
		6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED
Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (WHD mm)	300450110.5	300450110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]
Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes
