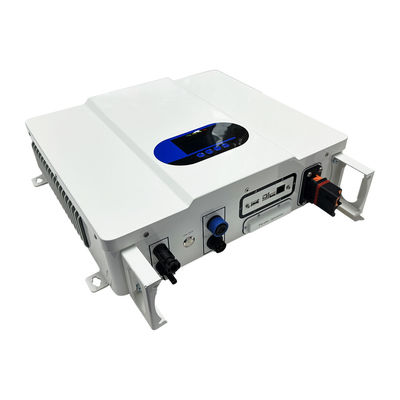

3Kw 48V Pure Sine Wave Off Grid Solar Hybrid Inverter for Lead-Acid Batteries and 230VAC System

Product Description: 3K&5KW Off-Grid Inverter

Key Features:

• Wide Battery Compatibility: Supports most common low-voltage batteries (lead-acid and lithium).

• Parallel Capacity: The 5KW model allows up to 9 units in parallel for expanded power needs.

• High Charging Efficiency: Maximum solar charge current of 150A (3KW) and 80A (5KW), ensuring rapid energy storage.

• User-Friendly Interface: Equipped with an LCD screen for safe and intuitive interaction.

• Remote Monitoring: Monitor and control the inverter via WiFi through a dedicated app, with seamless BMS integration.

• Intelligent Cooling: Smart fan design ensures optimal thermal management.

Technical Specifications:

• Output Waveform: Pure sine wave, ideal for sensitive electronics.

• Efficiency: Peak efficiency of 33%.

• Protection: Comprehensive safeguards including PV/battery over-voltage/current protection, short-circuit protection, and Type II DC surge protection.

• Durability: IP54-rated enclosure for dust and water resistance.

• Flexible Installation: Supports PV arrays up to 4000W (3KW) and 6000W (5KW), with a wide MPPT voltage range.

• Compact Design: Dimensions of 300×450×110.5 mm and lightweight (2.5kg–3kg) for easy deployment.

Environmental Adaptability:

• Operating Temperature: 0°C to 30°C.

• Storage Temperature: -15°C to 60°C.

• Suitable for altitudes up to 2000m.

Ideal For:
Off-grid solar systems, residential backup power, and remote applications requiring reliable, scalable energy solutions.

Choose the 3K&5KW Off-Grid Inverter for efficiency, durability, and smart energy management!
