Flexible CIGS Film Photovoltaic Solar Panel Roof Tiles 30W For Solar Roof Tile System

Name: Flexible CIGS Film Photovoltaic Solar Panel Roof Tiles 30W For Solar Roof Tile System
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SSTH-30w
Price: 51.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH/OEM

Model Number: SSTH-30w

Payment & Shipping Terms

Minimum Order Quantity: 3 pieces

Price: CN¥548.65/pieces 3-99 pieces

Packaging Details: Carton and peal wool, wood case or pallets

Supply Ability: 10000 Watt/Watts per Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Photovoltaic Solar Panel 30W, CIGS Film Photovoltaic Solar Panel, CIGS Solar Panel 30W


Cell Size:	125mmx125mm	Panel Dimensions:	686819.7mm
Panel Efficiency:	19.5%	Type:	Flexible CIGS Film Solar
Waterproof Grade:	IP67	Usage:	Solar Roof Tile System
Solar Roof Tile:	30W	Junction Box:	686819.7mm
Nominal Operating Cell Temp:	-40℃~+80℃	Warranty:	5 Years
Port:	Shenszhen Shekou Or Yantian

Cell Size:	125mmx125mm
Panel Dimensions:	686819.7mm
Panel Efficiency:	19.5%
Type:	Flexible CIGS Film Solar
Waterproof Grade:	IP67
Usage:	Solar Roof Tile System
Solar Roof Tile:	30W
Junction Box:	686819.7mm
Nominal Operating Cell Temp:	-40℃~+80℃
Warranty:	5 Years
Port:	Shenszhen Shekou Or Yantian

Flexible CIGS Film Photovoltaic Solar Panel Roof Tiles 30W For Solar Roof Tile System

Why Choose US

Product Description

Home Solar Energy Product Solar Panel Photovoltaic 30W Hanergy Solar Roof Tiles

Physical parameters
Product model	SSTH-30W
product demension	700mm length500mm width35mm height
Weight	5.2kg
Color	black
Junction box	686819.7mm with IP67 waterproof
Cable type	2.5mm solar cable
Connector	PV connector
Electrical parameter
Cell type	CIGS
POWER	30W
Short-circuit curretn	4.45A
Open-circuit voltage	10.16V
Current at PMPP	3.87A
voltage at PMPP	7.79V
Waterproof	IP67

Solar Tile

Environmentally friendly building materials.The combination of traditional building materials and thin-film solar technology cannot only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.

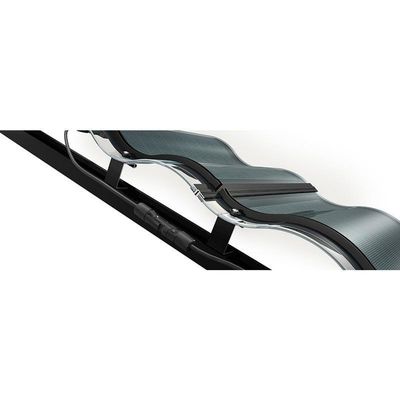

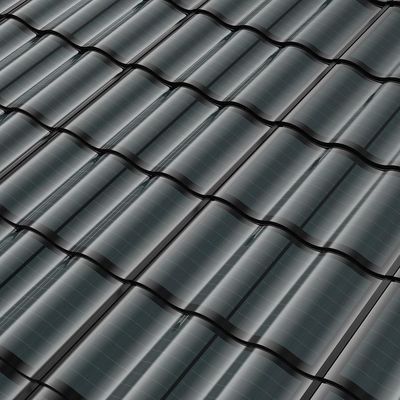

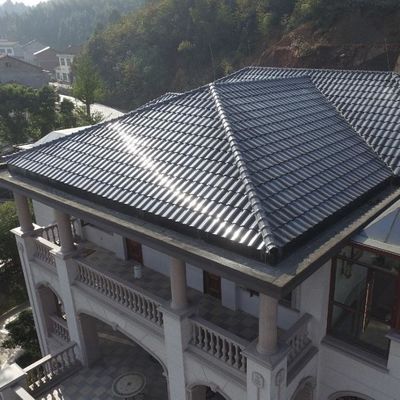

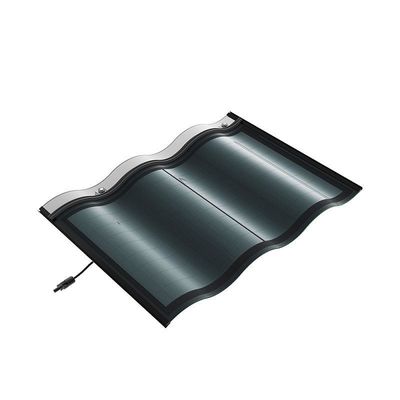

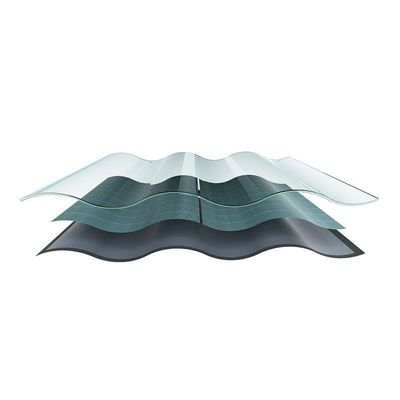

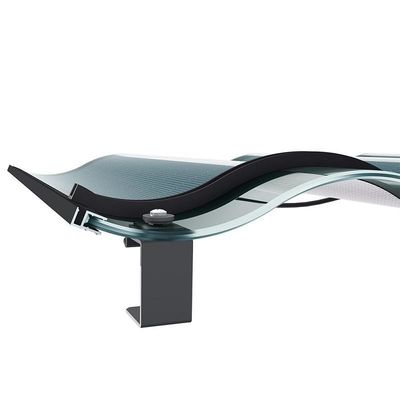

Detailed Images
