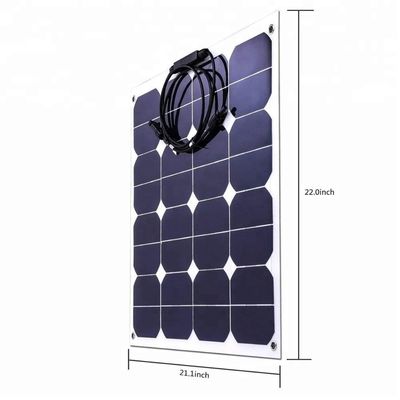

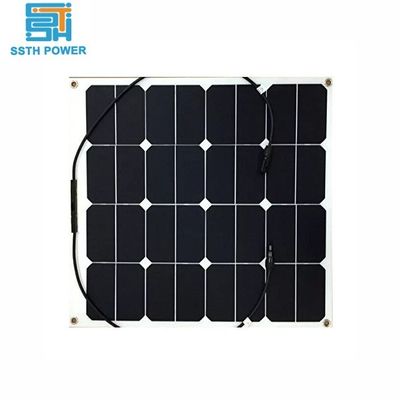

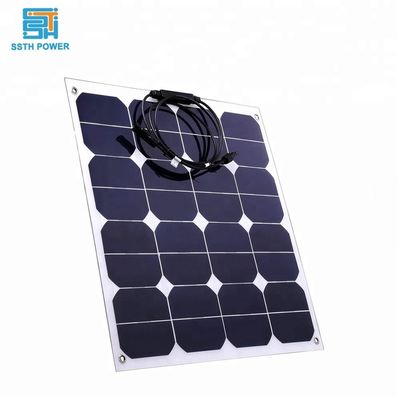

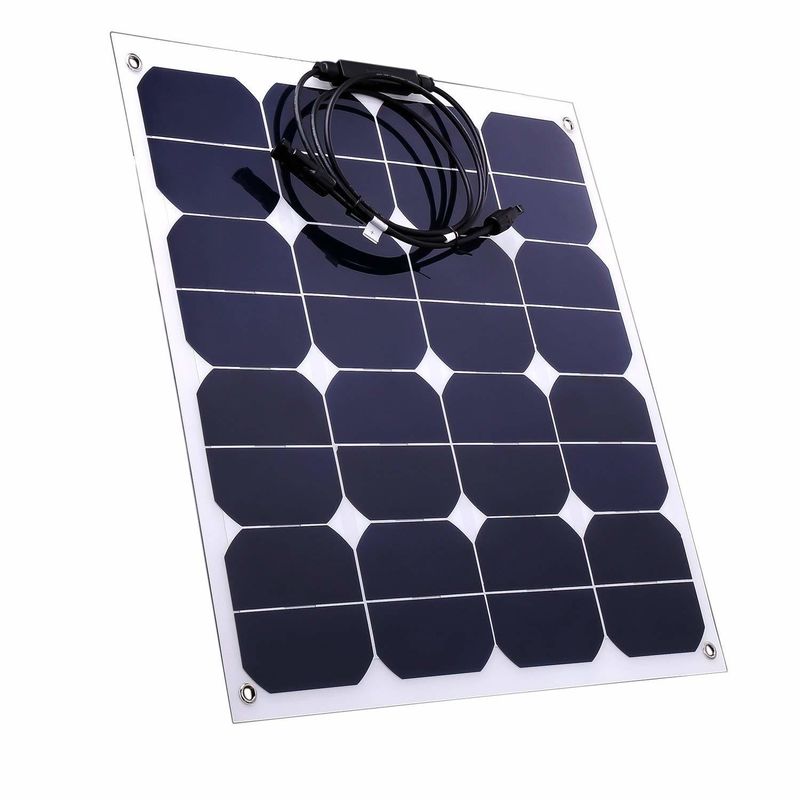

50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: 50W

Payment & Shipping Terms

Price: CN¥6.44/watts 1-9999 watts

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                50W ETFE Flexible Solar Panel, Waterproof   ETFE Flexible Solar Panel, 50W Solar Panel  Waterproof


Panel Efficiency:	19%	Product Name:	Portable ETFE Flexible 12V 50W Solar Panel
Type:	Mono Solar Panel, Flexible	Pmax:	50 Watt
Solar Cells Efficiency:	19%	Temperature:	-40℃ To +80℃
Vmp:	18V	Voc:	21V
Isc:	3.0A	Junction Box:	IP67 Rated Waterproof
Application:	RV, Boat, Cabin, Tent, Yachts, Car, Trucks, Trailers	Warranty:	10YEARS
Size:	5605403mm	Certificate:	TUV

Panel Efficiency:	19%
Product Name:	Portable ETFE Flexible 12V 50W Solar Panel
Type:	Mono Solar Panel, Flexible
Pmax:	50 Watt
Solar Cells Efficiency:	19%
Temperature:	-40℃ To +80℃
Vmp:	18V
Voc:	21V
Isc:	3.0A
Junction Box:	IP67 Rated Waterproof
Application:	RV, Boat, Cabin, Tent, Yachts, Car, Trucks, Trailers
Warranty:	10YEARS
Size:	5605403mm
Certificate:	TUV

50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System

50W ETFE Flexible Solar Panel for 12V Mono Waterproof Solar Energy System and Environmentally Friendly

Products Description

Mono waterproof solar energy system portable ETFE flexible 18V 50W solar panel

1.High efficiency: The efficiency of Mono crystalline solar panel is up to 19%, so it can capture more sunlight than conventional solar panels which is 15% or even lower.

2.Flexible and convenient: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas, easier to transport, hang and install.

3.Durable: The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.

4.Safety Protection: Short circuit and surge protection technology keep you and your devices safe.

5.Widely compatible: Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers or any other irregular surface.

Product Paramenters

Power	50Watt
Material	Monocrystalline Solar panel
Solar cell	Mono 125*125 Cell
Optimum Operating Voltage/Vmp	18V
Optimum Operating Current/Imp	2.7A
Open Circuit Voltage /Voc	21V
Short Circuit Current /Isc	3.0A
Product dimension	5605403mm
Numbers of cells	16(4*4)
Junction box waterproof rate	IP67 Rated
Working temperature	(-40)℃ to (+80)℃
Connect cable	90cm with Connector

Details Images

Recommend Products

100W 200W 300W 400W Rigid solar panel

100W 200W 300W 400W PET semi-flexible solar panel

Company Profile

FAQ

Q1 Advantage for ETFE flexible solar panel
A1: ETFE flexible solar panel, bump surface, increase light absorption. Rigid solar panel, smooth surface, easy to reflect light, reduce the absorption efficiency

Q2 what is the MOQ for solar panel special design
A2: MOQ is 100pcs for special design

Q3 what is the packing method for solar panel
Sample using carton packing, mass production using pallet for transportation

Q4 what is your company's after sale service?
A: If the problem can be easy fix by customer, we show client how to fix it by picture and words. B: If need the parts to fix the
problem, then we send the parts for free.
C: If the problem can't be fixed on client's side, we will send new goods together with the next order. And arrange forwarder
company to fetch all defective products at one time, then delivery it back to China.
