100W Monocrystalline Solar Panel Flexible Pv Panels Temperature Resistance

Name: 100W Monocrystalline Solar Panel Flexible Pv Panels Temperature Resistance
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SSTH-HX-M100
Price: 3.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SSTH/OEM

Model Number: SSTH-HX-M100

Payment & Shipping Terms

Price: CN¥6.22/watts 1-499 watts

Packaging Details: One Pcs into Gift Box/Blister Card
Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling
Wooden pallent or according to costomer's requests

Supply Ability: 50000 Watt/Watts per Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                100W Monocrystalline Solar Panel, Flexible  Pv Panels Temperature Resistance, 100W  Flexible  Pv Panels


Cell Size:	156.75mmx156.75mm	Panel Dimensions:	12005403mm
Panel Efficiency:	21%	Type:	Flexible
Solar Cell:	Mono 156*156 Cell	Application:	RV, Car, Boat, Ship
Solar Cells Efficiency:	19%	Temperature:	-40℃ To +80℃
Vmp:	36V	Cable:	90cm With Connector
Warranty:	25 Years	Name:	100w Mono Solar Panel
Backsheet Material:	TPT	Port:	Yantian/Shekou

Cell Size:	156.75mmx156.75mm
Panel Dimensions:	12005403mm
Panel Efficiency:	21%
Type:	Flexible
Solar Cell:	Mono 156*156 Cell
Application:	RV, Car, Boat, Ship
Solar Cells Efficiency:	19%
Temperature:	-40℃ To +80℃
Vmp:	36V
Cable:	90cm With Connector
Warranty:	25 Years
Name:	100w Mono Solar Panel
Backsheet Material:	TPT
Port:	Yantian/Shekou

100W Monocrystalline Solar Panel Flexible Pv Panels Temperature Resistance

100W Monocrystalline Solar Panel with Flexible Design and Temperature Resistance -40C to 80C

Specifications

Maximum Power(W)	100W
Maximum Power Voltage(Vmp)	18.3
Maximum Power Current(Imp)	5.46
Open Circuit Voltage(Voc)	22.6
Short Circuit Current(Isc)	5.86

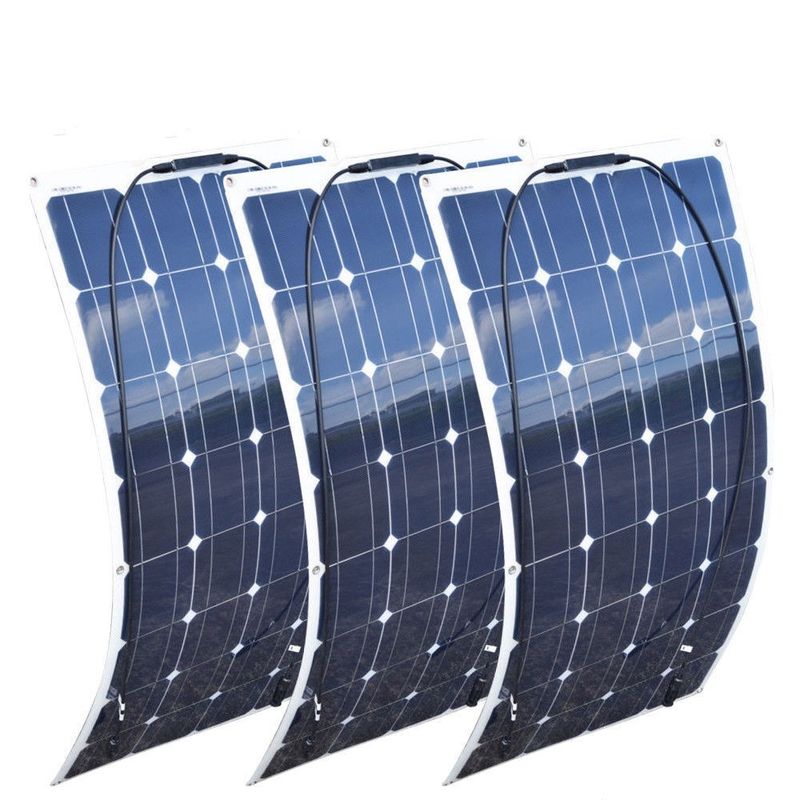

100W Monocrystalline Solar Panel Flexible Pv Panels Temperature Resistance 0

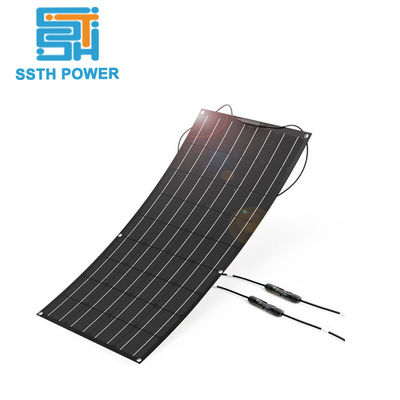

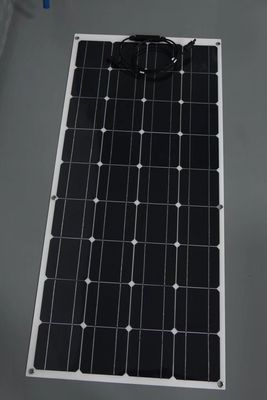

Products Display

100W Monocrystalline Solar Panel Flexible Pv Panels Temperature Resistance 1

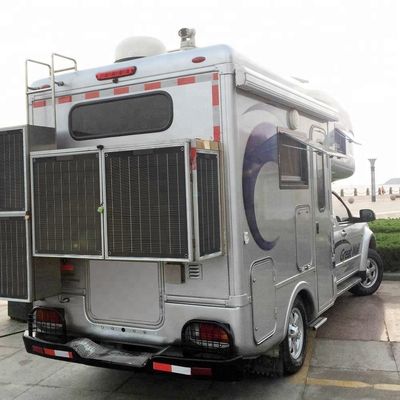

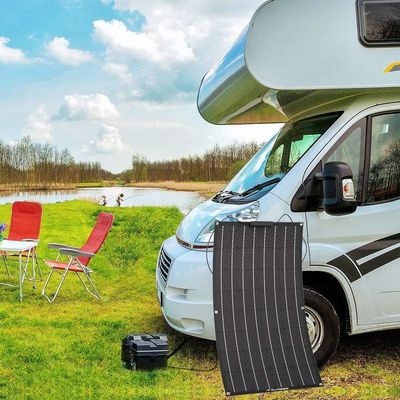

Application

100W Monocrystalline Solar Panel Flexible Pv Panels Temperature Resistance 6
