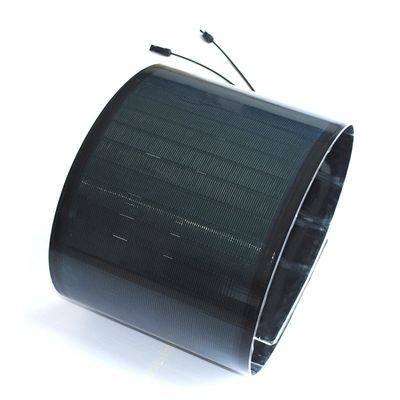

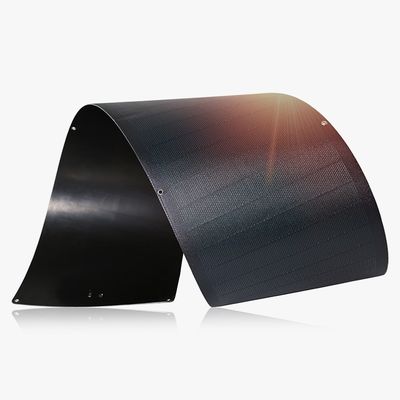

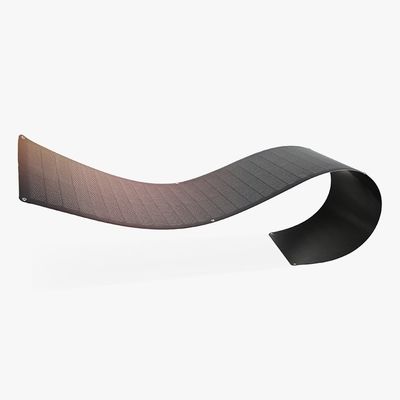

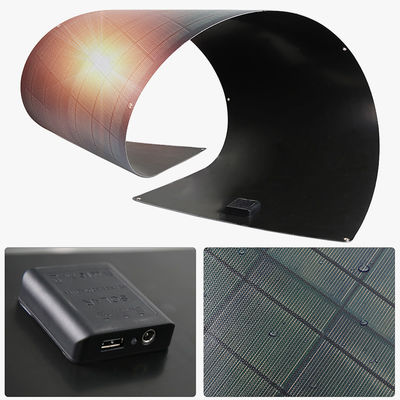

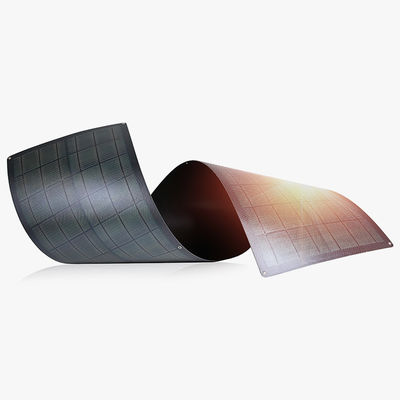

20mm Thickness Flexible Portable Solar Panel 460W 470W 480W 490W 500W 510W For Camping RV Car

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: W56

Payment & Shipping Terms

Minimum Order Quantity: 100 watts

Price: CN¥11.86/watts 100-9999 watts

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                20mm Thickness Portable Solar Panel, Flexible Portable Solar Panel 460W, 510W  Camping  Solar Panel


Cell Size:	156.75mmx156.75mm	Panel Dimensions:	2583mmx973mm
Panel Efficiency:	15/15.3/15.6/15.9/16.3/16.6%	Product Name:	Thin Film CIGS Flexible Rollable Solar Panel
Power:	460W/470W/480W/490W/500W/510W	Max Voltage:	59.6/59.8/59.9/60/60.2/60.2V
Max Current:	7.72A/7.87A/8.02/8.16/8.31/8.47A	Waterproof Grade:	IP67
Fire-proof Grade:	B1	Hail-proof Grade:	Level 4
Minimum Thickness:	Only 20mm Thickness

Cell Size:	156.75mmx156.75mm
Panel Dimensions:	2583mmx973mm
Panel Efficiency:	15/15.3/15.6/15.9/16.3/16.6%
Product Name:	Thin Film CIGS Flexible Rollable Solar Panel
Power:	460W/470W/480W/490W/500W/510W
Max Voltage:	59.6/59.8/59.9/60/60.2/60.2V
Max Current:	7.72A/7.87A/8.02/8.16/8.31/8.47A
Waterproof Grade:	IP67
Fire-proof Grade:	B1
Hail-proof Grade:	Level 4
Minimum Thickness:	Only 20mm Thickness

20mm Thickness Flexible Portable Solar Panel 460W 470W 480W 490W 500W 510W For Camping RV Car

20mm Thickness Portable Solar Panel 460W 470W 480W 490W 500W 510W Flexible CIGS Solar Charger for Camping RV Car

W56

W56-460

W56-470

W56-480

W56-490

W56-500

W56-510

Nominal Power

Pmpp

[W]

460

470

480

490

500

510

Aperture Efficiency

[%]

15.3

15.6

15.9

16.3

16.6

Power Output Tolerance

[W]

0~+5

Maximum Power Voltage

Vmpp

[V]

59.6

59.8

59.9

60.2

Maximum Power Current

Lwpp

[A]

7. 72

7.87

8. 02

8. 16

8. 31

8. 47

Open Circuit Voltage

Voc

[V]

74.8

74.9

75.1

75.2

Short Circuit Current

lsc

[A]

9.09

9.17

9.2

9. 25

9. 32

9.42

Maximum Series Fuse Rating

[A]

Standard Test Conditions :1000W/m.25C Cel1 temperature,AM 1.5 spectrum

THERMAL CHARACTERISTICS

NOCT

['c]

Temperature Coefficient Of Pmpp

[%/'℃]

-0. 38

Temperature Coeffioient Of Voc

[%/c]

-0. 28

Temperature CoeffioientOf lsc

[%/'c]

0.008

CelI Temperature Opera Ting Range

['c]

-40~85

PHYSICAL AND MECHANICAL SPECIFICATIONS

Length

2583mm

Width

1292m

Thickness

20mm

Weight module without adhesive)

5.6kg

Weight module with adhesive)

6.6kg

Weight/Area module without adhesive)

1. 7kg/m²

Weight/Area module with adhesive)

2. 1kg/m²

CelI Type

CIGS

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed Rohs Certification, Ce Certification, Bsci, Alibaba Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products

Rated Products

Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6:We provides one year warranty.

Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
