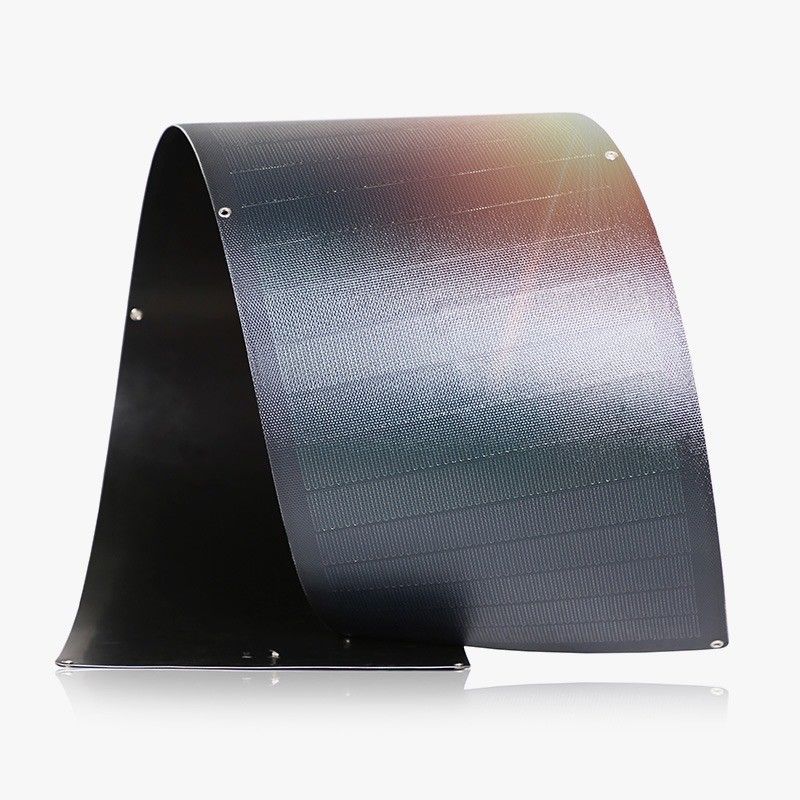

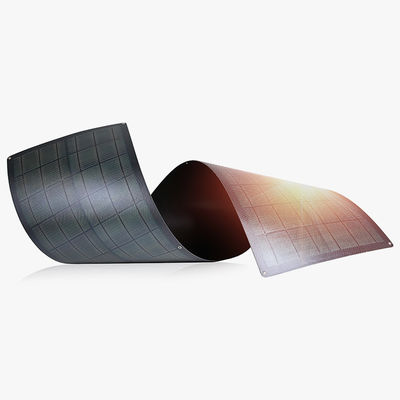

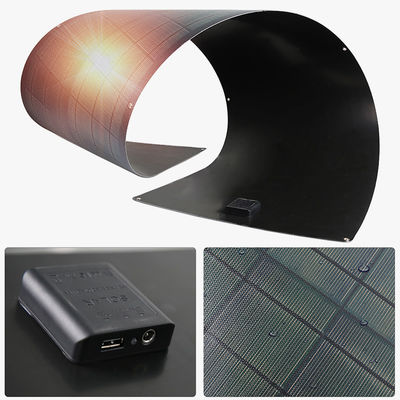

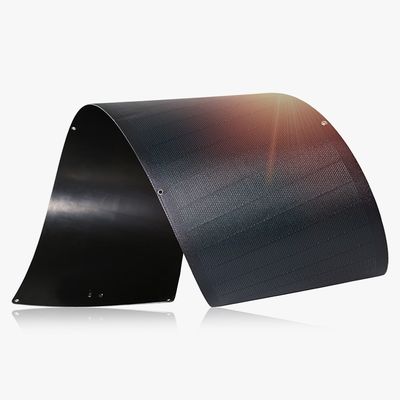

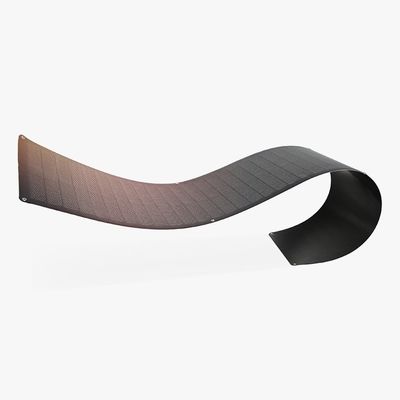

350W 360W 365W 370W 375W 380W CIGS Solar Panels Soft Solar Panels 2583mmx973mm

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: M56

Payment & Shipping Terms

Minimum Order Quantity: 100 watts

Price: CN¥11.86/watts 100-9999 watts

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                380W CIGS Solar Panels, 375W   CIGS Solar Panels, 365W  Soft Solar Panels


Cell Size:	156.75mmx156.75mm	Panel Dimensions:	2583mmx973mm
Panel Efficiency:	15.2/15.6/15.8/16/16.3/16.5%	Product Name:	Thin Film CIGS Flexible Rollable Solar Panel
Power:	350W/360W/365W/370W/375W/380W	Max Voltage:	29.6V/29.8V/30V/30.1V/30.2V/30.3V
Max Current:	11.83A/12.07A/12.19A/12.31A/12.43A/12.55	Waterproof Grade:	IP67
Fire-proof Grade:	B1	Hail-proof Grade:	Level 4
Minimum Thickness:	Only 20mm Thickness

Cell Size:	156.75mmx156.75mm
Panel Dimensions:	2583mmx973mm
Panel Efficiency:	15.2/15.6/15.8/16/16.3/16.5%
Product Name:	Thin Film CIGS Flexible Rollable Solar Panel
Power:	350W/360W/365W/370W/375W/380W
Max Voltage:	29.6V/29.8V/30V/30.1V/30.2V/30.3V
Max Current:	11.83A/12.07A/12.19A/12.31A/12.43A/12.55
Waterproof Grade:	IP67
Fire-proof Grade:	B1
Hail-proof Grade:	Level 4
Minimum Thickness:	Only 20mm Thickness

350W 360W 365W 370W 375W 380W CIGS Solar Panels Soft Solar Panels 2583mmx973mm

Minimum Thickness 350W 360W 365W 370W 375W 380W CIGS Flexible Solar Panels for Solar Energy System

M56

M56-350

M56-360

M56-365

M56-370

M56-375

M56-380

Nominal Power

Pmpp

[W]

350

360

365

370

375

380

Aperture Efficiency

[%]

15. 2

15.6

15.8

16. 3

16.5

Power Output Tolerance

[W]

0~+5

Maximum Power Voltage

Vmpp

[V]

29. 6

29.8

30.1

30. 2

30.3

Maximum Power Current

Lwpp

[A]

11.83

12. 07

12. 19

12. 31

12.43

12.55

Open Circuit Voltage

Voc

[V]

37. 2

37.3

37.6

37. 6

Short Circuit Current

lsc

[A]

13.78

13.88

13. 93

13.98

14. 07

14. 1

Maximum Series Fuse Rating

[A]

Standard Test Conditions :1000W/m.25C Cel1 temperature,AM 1.5 spectrum

THERMAL CHARACTERISTICS

NOCT

['c]

Temperature Coefficient Of Pmpp

[%/'℃]

-0. 38

Temperature Coeffioient Of Voc

[%/c]

-0. 28

Temperature CoeffioientOf lsc

[%/'c]

CelI Temperature Opera Ting Range

['c]

-40~85

PHYSICAL AND MECHANICAL SPECIFICATIONS

Length

2583mm

Width

973m

Thickness maximum AtJ-Box*

20mm

Weight module without adhesive)

2.9kg

Weight module with adhesive)

3.5kg

Weight/Area module without adhesive)

1. 7kg/m²

Weight/Area module with adhesive)

2. 1kg/m²

CelI Type

CIGS

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed Rohs Certification, Ce Certification, Bsci, Alibaba Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products

Rated Products

Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6:We provides one year warranty.

Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
