Product Details
Place of Origin: Guangdong, China
Brand Name: SZSSTH
Model Number: SSTH-MN1220
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: CN¥204.83/pieces 2-99 pieces

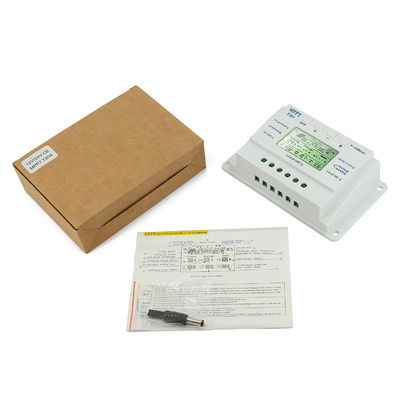

Packaging Details: Package: natural box
1pc/Inner box;50pcs/CTN
Good Guality Solar Panel Charge Controller Mppt 12V 24V 20A 250W MPPT Solar Charger Controller
Type: |
MPPT |
Application: |
Charger Controller, Charger Controller |
Work Time (h): |
24H |
Max PV Power: |
260W |
Max PV Voltage: |
48V |
Product Name: |
Charge Controller Mppt 12V 24V 20A 250W MPPT Solar Charger Controller |
Rated Voltage: |
12v 24v |
Maximum Current: |
20A |
MPPT Efficiency: |
99% |
Size: |
187*97*61mm |
Weight: |
475g |
Dimention: |
143*89*46 Mm |
Loop Buck: |
≤100mV |
Battery Float Voltage: |
13.8V 12V System /27.6V 24V |
Certificate: |
CE ROHS |
Warranty: |
1 Year |
Type: |
MPPT |
Application: |
Charger Controller, Charger Controller |
Work Time (h): |
24H |
Max PV Power: |
260W |
Max PV Voltage: |
48V |
Product Name: |
Charge Controller Mppt 12V 24V 20A 250W MPPT Solar Charger Controller |
Rated Voltage: |
12v 24v |
Maximum Current: |
20A |
MPPT Efficiency: |
99% |
Size: |
187*97*61mm |
Weight: |
475g |
Dimention: |
143*89*46 Mm |
Loop Buck: |
≤100mV |
Battery Float Voltage: |
13.8V 12V System /27.6V 24V |
Certificate: |
CE ROHS |
Warranty: |
1 Year |
Max PV Voltage 48V 12V 24V 20A 250W Solar Panel Charge Controller with Advanced MPPT Technology
Parameters/Model
|
MN10
|
MN20
|
MN30
|
MN40
|
||||
Maximum Power Current
|
12A
|
20A
|
30A
|
40A
|
||||
Installation Lin mm2
|
4mm2
|
8mm2
|
10mm2
|
12mm2
|
||||
Installation Line(AWG)
|
10 (AWG)
|
8(AWG)
|
7(AWG)
|
6(AWG)
|
||||
Weight
|
280g
|
300g
|
475g
|
480g
|
||||
Dimensions
|
143×89×46 mm
|
|
187*97*61 mm
|
|
||||
System load loss
|
≤13mA
|
|
|
|
||||
Loop Buck
|
≤100mV
|
|
|
|
||||
Battery float voltage
|
13.8V 12V system /27.6V 24V system
|
|
|
|
||||
Battery under voltage) protection
|
10.6V 12V system /21.2V 24V system
|
|
|
|
||||
Battery (under voltage) recovery voltage
|
12.6V 12V system /25.2V 24V system
|
|
|
|
||||
Charge mode
|
MPPT MODE
|
|
|
|
||||
Operating Temperature
|
-10~60°C
|
|
|
|
||||
Storage Temperature
|
-30~70°C
|
|
|
|
||||
Humidity requirements
|
≤90%, No condensation
|
|
|
|
||||
Temperature compensation
|
-4mV/Cell/°C
|
|
|
|
||||
Temperature Probe (built components)
|
TC 100K thermistats
|
|
|
|
||||
aximum open circuit voltage of the solar panel
|
18V-24V 12V system 36V-48V 24V system)
|
|
|
|
||||
Solar panels maximum open circuit voltage (V)
|
≤48V
|
|
|
|
||||
(Cases) 12V system standard configuration
|
|
|
|
|
||||
The peak voltage of the solar cell panel
|
18V-25V
|
18V-25V
|
18V-25V
|
18V-25V
|
||||
Peak power of solar cell panel
|
50W-130W
|
100W-260W
|
200W-380W
|
≤500W
|
