12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control

Brand Name:	SSTH/OEM
Model Number:	SSTH-MN1230, SSTH-MN1230
Price:	CN¥256.04/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

MPPT

Application:

Charger Controller, Solar System Controller

Work Time (h):

24h

Max PV Power:

380w

Max PV Voltage:

48v

Product Name:

24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller

Rated Voltage:

12V/24V

Maximum Current:

30A

MPPT Efficiency:

99%

Size:

187*97*61mm

Weight:

475g

Dimention:

143*89*46 Mm

Loop Buck:

≤100mV

Battery Float Voltage:

13.8V 12V System /27.6V 24V

Certificate:

Warranty:

1 Year

Packaging Details:

Package: gift box
1pc/Inner box;50pcs/CTN
China Factory 12 Vot 24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller

Highlight:

30 Amp MPPT Solar Charge Controller

Solar Charge Controller 380w

380w mppt solar regulator

Product Description

12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller for Solar System Control

Why choose us

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 0

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 1

Product Description

China Factory 12 Vot 24 Volt 12V/24V Charge Controllers 30Ah MPPT 30A Solar MPPT Controller

Parameters/Model	MN10	MN20	MN30	MN40
Maximum Power Current	12A	20A	30A	40A
Installation Lin mm2	4mm2	8mm2	10mm2	12mm2
Installation Line(AWG)	10 (AWG)	8(AWG)	7(AWG)	6(AWG)
Weight	280g	300g	475g	480g
Dimensions	143×89×46 mm		1879761 mm
System load loss	≤13mA
Loop Buck	≤100mV
Battery float voltage	13.8V 12V system /27.6V 24V system
Battery under voltage) protection	10.6V 12V system /21.2V 24V system
Battery (under voltage) recovery voltage	12.6V 12V system /25.2V 24V system
Charge mode	MPPT MODE
Operating Temperature	-10~60°C
Storage Temperature	-30~70°C
Humidity requirements	≤90%, No condensation
Temperature compensation	-4mV/Cell/°C
Temperature Probe (built components)	TC 100K thermistats
aximum open circuit voltage of the solar panel	18V-24V 12V system 36V-48V 24V system)
Solar panels maximum open circuit voltage (V)	≤48V
(Cases) 12V system standard configuration
The peak voltage of the solar cell panel	18V-25V	18V-25V	18V-25V	18V-25V
Peak power of solar cell panel	50W-130W	100W-260W	200W-380W	≤500W

Product Details

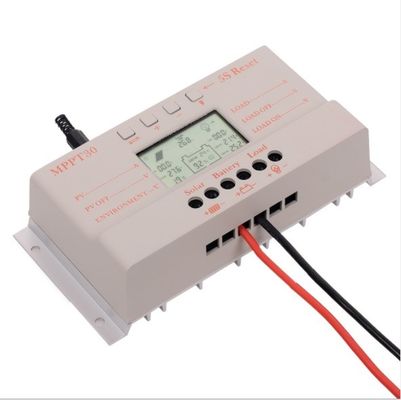

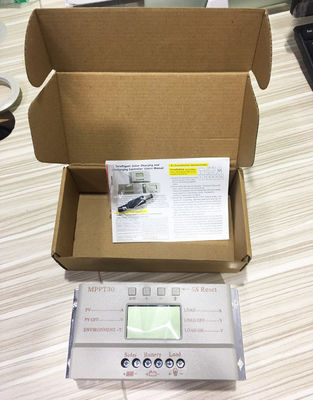

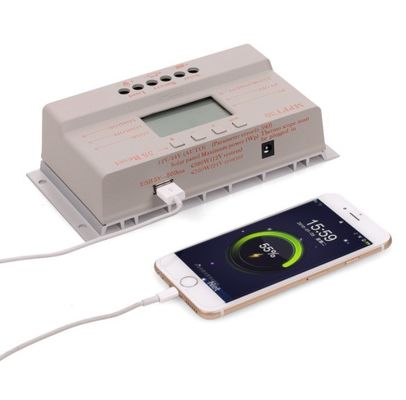

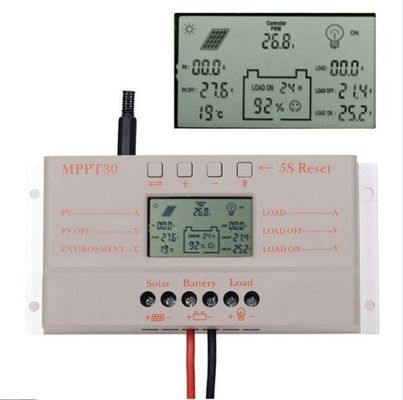

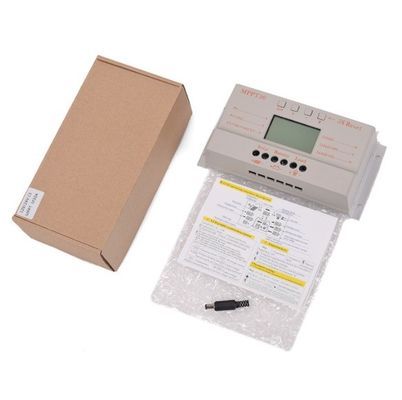

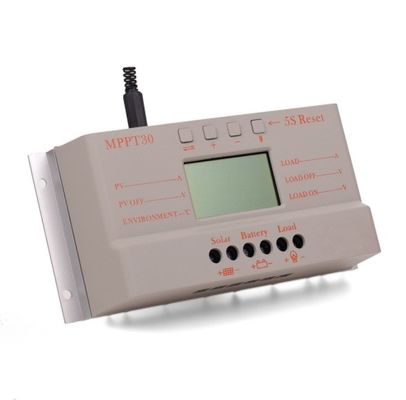

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 2

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 3

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 4

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 5

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 6

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 7

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 8

12V/24V 30 Amp MPPT Solar Charge Controller 380w For Solar System Control 9
