10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology

10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology

Brand Name: SSTH/OEM
Model Number: SSTH-MPPT1210
MOQ: 10 pieces
Price: CN¥144.85/pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Type:
MPPT
Application:
Charger Controller, Solar Panel Charger Controller
Work Time (h):
12h
Max PV Power:
130W
Max PV Voltage:
25V
Model Number:
SSTH-MPPT1210
Rated Voltage:
12v 24v
Current:
10A Price
Color:
White
Maximum Current:
12A
Weight:
150g
Size:
150*78*35mm
Warranty:
1 Year
Product Name:
10A 15A 20A 25A 30A 40A 50A 60 Amp Mppt Solar Charge Controller
Packaging Details:
Packaging Details
Packing: Standard carton box
Port:Yantian or Shekou
Lead Time :20 days
Highlight:

60A Intelligent Solar Charge Controller

,

10A Intelligent Solar Charge Controller

,

smart solar charge controller 12A

Product Description

10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology 0

Intelligent power 10A 15A 20A 25A 30A 40A 50A 60 amp mppt solar charge controller

Specifications

Parameters / Model

MPPT10

MPPT20

MPPT30

MPPT40

Maximum power current

12A

20A

30A

40A

Installation  Lin(mm2)

4mm2

8mm2

10mm2

12mm2

Installation Line(AWG)

10(AWG)

8(AWG)

7(AWG)

6(AWG)

Weight

280g

300g

475g

480

Dimensions

143×89×46(mm)

187*97*61(mm)

Loop Buck

≤100mV
Battery float voltage 13.8V(12V system)/27.6V(24V system)
Battery (under voltage) protection 10.6V(12V system)/21.2V(24V system)
Battery (under voltage) recovery voltage 12.6V(12V system)/25.2V(24V system)
Charge mode MPPT+PWM MODE
Operating Temperature -10℃~60℃
Storage Temperature -30℃~70℃
Humidity requirements ≤90%, No condensation
Temperature compensation -4mV/Cell/℃
Temperature Probe (built components) NTC 100K  thermistats
Maximum open circuit voltage of the solar panel 18V-24V(12V system)36V-48V(24V system)
Solar panels maximum open circuit voltage (V) ≤48V



Detailed Images

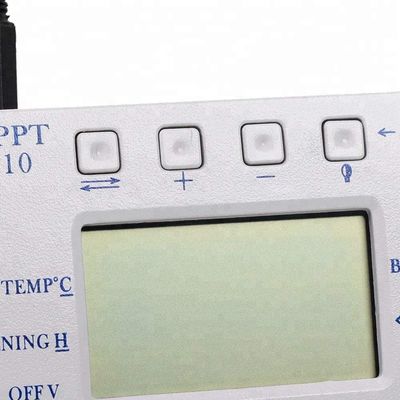

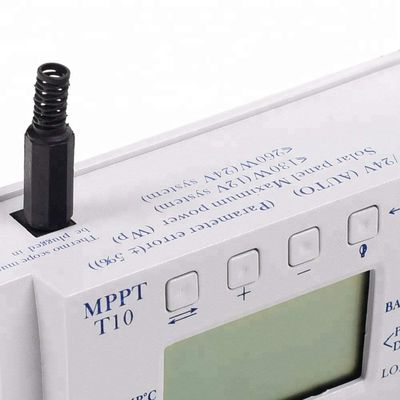

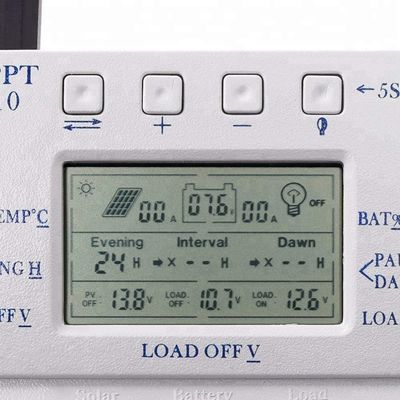

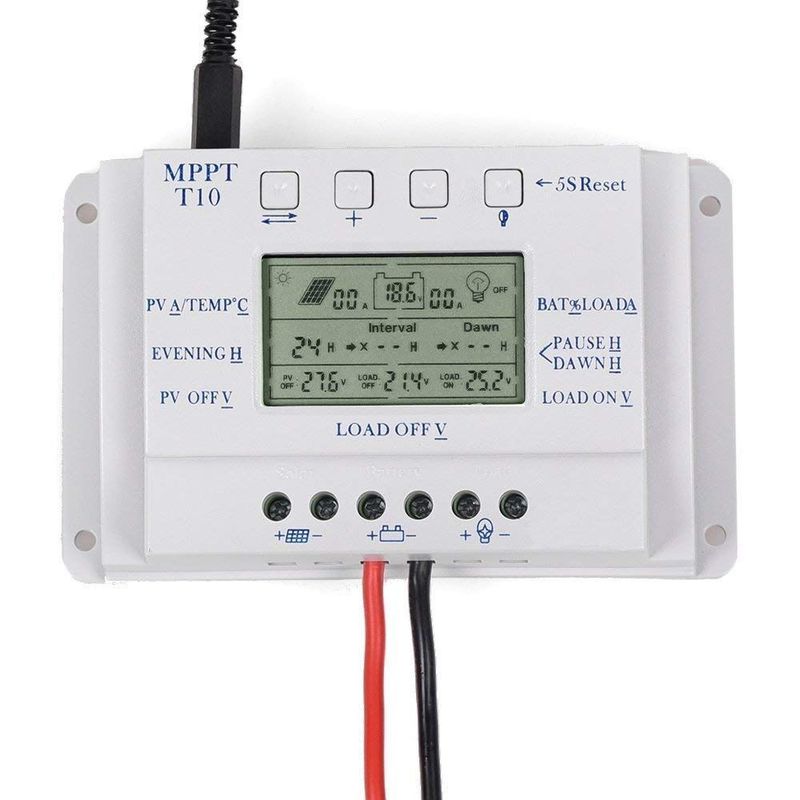

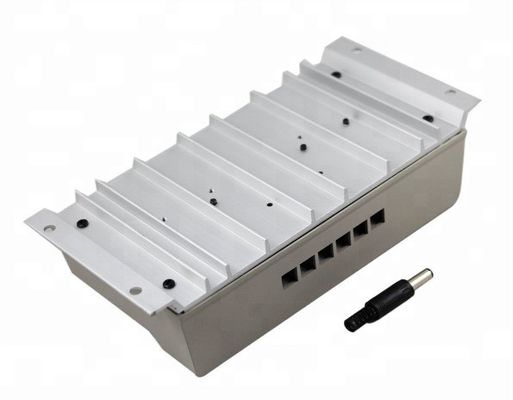

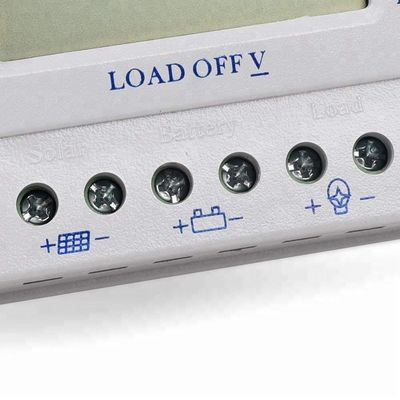

10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology 1

10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology 2

10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology 3













10A - 60A Intelligent Solar Charge Controller With 12A And MPPT Technology 4
