24 Volt 48 Volt 60 Amp Solar Charge Controller For Off Grid Solar Power System

Name: 24 Volt 48 Volt 60 Amp Solar Charge Controller For Off Grid Solar Power System
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SSTH-60A
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: SSTH-60A

Payment & Shipping Terms

Price: CN¥1,060.72/pieces 1-49 pieces

Packaging Details: Packing: Gift Box
PCS/CTN :4pcs
Carton Dimension 500*340*272mm
Unit Weight: 3kg
Net weight (N.W) : 10.4kg
Gross weight (G.W): 12.8kg

Supply Ability: 5000 Piece/Pieces per Week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                24 volt 60 amp solar charge controller, 48 volt 60 amp solar charge controller, Off Grid  48v 60a mppt charge controller


Type:	MPPT	Application:	Charger Controller, Solar System Controller, Solar System
Work Time (h):	24 Hours	Max PV Power:	8640W
Max PV Voltage:	230V	Product Name:	60A MPPT Solar Charge Controller
Rated Voltage:	12v 24v 36v 48v 60v 72v 84v 96v Auto Work	MPPT Efficiency:	97%
Maximum Current:	60A	Battery Type:	Lead Acid/Gel/LifePo 4/Li-ion/USER
Charge Mode:	MPPT Automatic Maximum Power Tracking	Display:	LCD Screen
Size:	218x265x100mm	Weight:	2
Certificate:	CE	Warranty:	1 Year
Port:	Shenzhen Port

Type:	MPPT
Application:	Charger Controller, Solar System Controller, Solar System
Work Time (h):	24 Hours
Max PV Power:	8640W
Max PV Voltage:	230V
Product Name:	60A MPPT Solar Charge Controller
Rated Voltage:	12v 24v 36v 48v 60v 72v 84v 96v Auto Work
MPPT Efficiency:	97%
Maximum Current:	60A
Battery Type:	Lead Acid/Gel/LifePo 4/Li-ion/USER
Charge Mode:	MPPT Automatic Maximum Power Tracking
Display:	LCD Screen
Size:	218x265x100mm
Weight:	2
Certificate:	CE
Warranty:	1 Year
Port:	Shenzhen Port

24 Volt 48 Volt 60 Amp Solar Charge Controller For Off Grid Solar Power System

Product Description

Chinese Manufacturer 12v/24v/36v/48v/60v/72v/84v/96v 60A Mppt Solar Charge Controller for Off Grid Solar Power System Charger

Product Features:

1. Innovative maximum power point tracking technology ,can significantly improve the energy utilization rate of the solar system, with a conversion efficiency of up to 97%;
2. Quickly scan the entire I-V curve, and efficiently track the maximum power point;
3. Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series are optional;
4. With automatic protection of overcharge, overdischarge, overload and short circuit;
5. RS485 communication interface, multi-machine communication communication is possible, which is convenient for viewing the operating parameters of the controller;

Model	30A /40A	50A /60A
Charging Mode	MPPT automatic maximum power tracking
Charging Method	MPPT tracks maximum power, fast charge, balanced charge, and float charge.
Lead Acid	(12V/24V/36V/48V/96V Auto +Adjustable 12V/24V/36V/48V/60V/72V/84V/96V)
Gel	12V/24V/36V/48V/60V/72V/84V/96V
LifePo 4	12V/24V/36V/48V/60V/72V/84V/96V
Li-ion	Single voltage 3.7 * number of strings (2 strings -45 strings adjustable)
USER	Adjustable limit voltage for equal charge, float charge and DC discharge: 8V -170V
With lithium battery activation function	With photovoltaic input, there is charging voltage (activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage	0--230V
The charging current is adjustable	0—30A 0—40A	0—30A 0—40A
Start charging	PV voltage is greater than + 3V of battery voltage (low current charging on rainy days)
Direct charging current output function	DC continuous output 25A	DC continuous output 60A
Temperature compensation	According to the temperature of the battery, the charging voltage and current are automatically compensated to prolong the battery life
Display communication	LCD display with touch button: (generating capacity / photovoltaic voltage / battery voltage / charging current / power / operation status) Chinese and English display Settings: (battery type, charging current, return to factory)
Working environment temperature	-20℃ ~ 40℃
Protection level	IP 21
Altitude	0 ~ 3000m
Product size	202x215x100mm	218x265x100mm
N.W. / G.W.	1.9KG/2.5KG	2.6KG/3.5KG

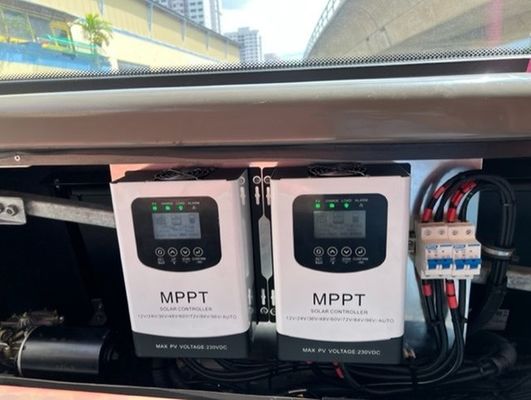

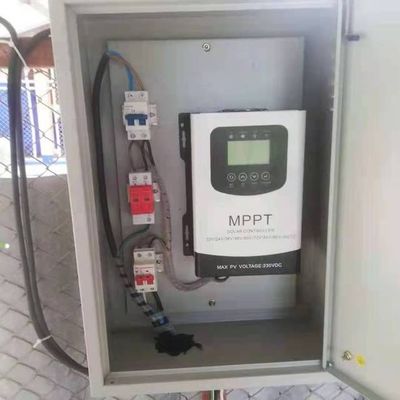

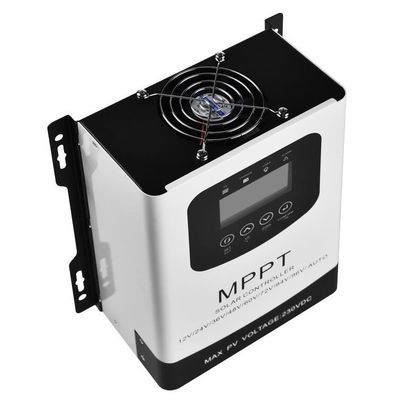

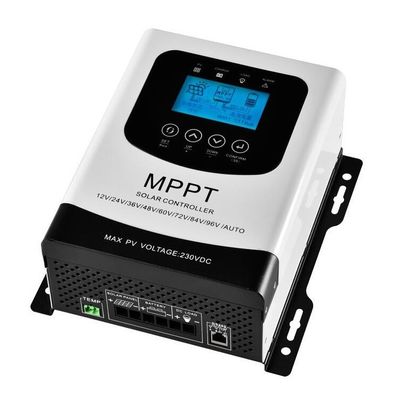

Detailed Images

Product packaging

Packing	Box
PCS/CTN	8pcs
Carton Dimension	575480290mm
Unit Weight	1.9KG
Net weight (N.W)	15.5KG
Gross weight(G.W)	18.8KG

Product Paramenters

Certifications

Company Profile

Q1. May I take some samples to test before placing the order ?
A: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is
confirmed.
Q2: What about after-sale service?
A: We will offer you 1 year guarantee.

Q3: Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before. About customized packing,we can put your Logo or other info on the packing. There is no problem.

Q4: Do you have any certifications for your products?
A: We have ISO9001:2000, CE, RoHS, certifications for all of our products.

Q5: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
