12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified

Product Details

Place of Origin: Guangdong, China

Brand Name: SSTH/OEM

Model Number: SSTH-MN1240, MPPT

Payment & Shipping Terms

Price: CN¥292.62/pieces 1-49 pieces

Packaging Details: Package: Carton box
50pcs in one carton

Supply Ability: 30000 Piece/Pieces per Month

Get Best Price
Highlight:

24V MPPT Battery Charge Controller

,

Customized MPPT Battery Charge Controller

,

Customized 12V MPPT Charge Controller

Type:
MPPT
Application:
Charger Controller, Voltage Controller, Solar System Controller, Mppt Charge Controller Circuit
Work Time (h):
24h
Max PV Power:
960w
Max PV Voltage:
24V
Rated Voltage:
12v 24v
Maximum Current:
40A
MPPT Efficiency:
99%
Size:
187*97*61mm
Weight:
650g
Loop Buck:
≤100mV
Battery Float Voltage:
13.8V 12V System /27.6V 24V
Keyword:
Mppt Solar Charge Controller Circuit Board
Certificate:
CE
Warranty:
1 Year
Port:
Shenzhen
Type:
MPPT
Application:
Charger Controller, Voltage Controller, Solar System Controller, Mppt Charge Controller Circuit
Work Time (h):
24h
Max PV Power:
960w
Max PV Voltage:
24V
Rated Voltage:
12v 24v
Maximum Current:
40A
MPPT Efficiency:
99%
Size:
187*97*61mm
Weight:
650g
Loop Buck:
≤100mV
Battery Float Voltage:
13.8V 12V System /27.6V 24V
Keyword:
Mppt Solar Charge Controller Circuit Board
Certificate:
CE
Warranty:
1 Year
Port:
Shenzhen
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified

CE Certified 12V 24V Solar System MPPT Battery Charge Controller for Customized Battery Charging

Why Choose US
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 0
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 1
Product Description

Hot selling 12V 24V customized 50a mppt 40 amp solar charge controller 30a mppt battery charge controllers

Product Features:

1.Not True MPPT,there is no large transformer coil inside,Compatible MPPT  charging mode.

2. Adopt customized LCD display screen, which makes the operation on the interface more convenient. All the controlling parameters can be reset flexibly to satisfy your different needs.

3.The visual LCD graphic symbol ,and the Brief key operation makes it looks cool and easy to operate.User can a key to open and close the load,and a key to restore the factory settings.Also with 5V USB charging.

4.Temperature compensation function, the controller can automatically adjust the charge parameters of battery by environment temperature to prolong the service life of battery. The temperature sensor is included, if you can not find it in the package, contact with the seller to get it .

5.The system automatically recognizes the voltage, rated working voltage, 12V / 24V automatic switch.

Parameters/Model
MN10
MN20
MN30
MN40
Maximum Power Current
12A
20A
30A
40A
Installation Lin mm2
4mm2
8mm2
10mm2
12mm2
Installation Line(AWG)
10 (AWG)
8(AWG)
7(AWG)
6(AWG)
Weight
350g
450g
600g
650g
Dimensions
143×89×46 mm

187*97*61 mm

System load loss
≤13mA



Loop Buck
≤100mV



Battery float voltage
13.8V 12V system /27.6V 24V system



Battery under voltage) protection
10.6V 12V system /21.2V 24V system



Battery (under voltage) recovery voltage
12.6V 12V system /25.2V 24V system



Charge mode
MPPT MODE



Operating Temperature
-10~60°C



Storage Temperature
-30~70°C



Humidity requirements
≤90%, No condensation



Temperature compensation
-4mV/Cell/°C



Temperature Probe (built components)
TC 100K thermistats



aximum open circuit voltage of the solar panel
18V-24V 12V system 36V-48V 24V system)



Solar panels maximum open circuit voltage (V)
≤48V



(Cases) 12V system standard configuration




The peak voltage of the solar cell panel
18V-25V
18V-25V
18V-25V
18V-25V
Peak power of solar cell panel
50W-130W
100W-260W
200W-380W
≤500W
Detailed Images
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 2
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 3
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 4
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 5
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 6
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 7
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 8
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 9
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 10
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 11
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 12
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 13
Related Products

Our Company
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 14
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 15

Shenzhen Shengshi Tianhe technology Co., LTD. was founded in 2002 and factory has over 8000 square meters. At the end of 2017, the company have 500 employees, including technical research and development and management staff more than 65 peoples. SZSSTH are hi-tech enterprise which is engaged in R&D, production, sales and service of power inverter, solar inverter, solar panel, solar charge controller, solar power bank & power station, universal laptop adapter, car jump starter , switching power and so on. We obtained the CE ROHS FCC LVD TUV, UL, KC, SAA,SGS,UKCA, REACH, PAHS ,BSCI, NF GS and others certificates for our product. Our products are exported to many countries and regions such as Eurasian, North and South America, Middle East and Africa.

12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 16
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 17

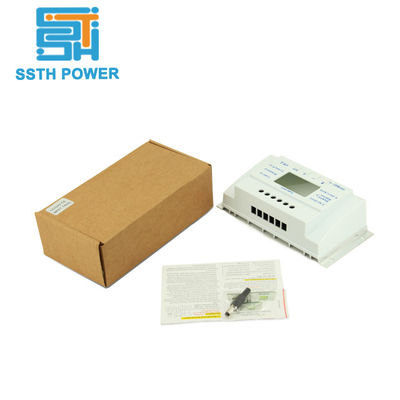

Packing & Delivery

Package: gift box

1pc/Inner box;50pcs/CTN

12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 18
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 19
12V 24V MPPT Battery Charge Controller For Customized Battery Charging CE Certified 20
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.


Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
