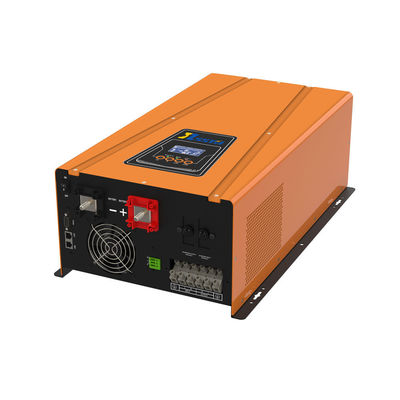

8KW 10KW 12KW DC To AC Pure Sine Wave Inverter Toroidal Inverter Overload Protection

Name: 8KW 10KW 12KW DC To AC Pure Sine Wave Inverter Toroidal Inverter Overload Protection
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: RS-8000W
Price: 4.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: RS-8000W

Payment & Shipping Terms

Price: CN¥7,286.04/sets 1-99 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                8KW   Toroidal Inverter, Toroidal Inverter Overload Protection, 12KW DC to AC Pure Sine Wave Inverter


Input Voltage:	48V / 96V	Output Voltage:	100V / 110V / 120V / 220V / 230V/240V
Output Current:	36.4A / 220V, 72.7A/110V	Output Frequency:	40Hz-70Hz (50Hz/60Hz)
Output Type:	Single	Size:	584x425x180MM
Type:	DC/AC Inverters	Inverter Efficiency:	91%
Weight:	59KG	Product Name:	8000W 10000W 12000W Solar Hybrid Inverter
Output Wave Form:	Pure Sine Wave	Display:	Color LCD
Protection:	Overload,overcharge,over-temperature, Short Circuit	Color:	Orange /Blue
Cooling:	Intelligent Fan	Humidity:	5-95% Relative Humidity
Operating Temperature:	-10℃ To 55℃	Storage Temperature:	-15℃ To 60℃
Transfer Time:	Less Than 10ms	Certificate:	CE, ROHS
Warranty:	1 Year

Input Voltage:	48V / 96V
Output Voltage:	100V / 110V / 120V / 220V / 230V/240V
Output Current:	36.4A / 220V, 72.7A/110V
Output Frequency:	40Hz-70Hz (50Hz/60Hz)
Output Type:	Single
Size:	584x425x180MM
Type:	DC/AC Inverters
Inverter Efficiency:	91%
Weight:	59KG
Product Name:	8000W 10000W 12000W Solar Hybrid Inverter
Output Wave Form:	Pure Sine Wave
Display:	Color LCD
Protection:	Overload,overcharge,over-temperature, Short Circuit
Color:	Orange /Blue
Cooling:	Intelligent Fan
Humidity:	5-95% Relative Humidity
Operating Temperature:	-10℃ To 55℃
Storage Temperature:	-15℃ To 60℃
Transfer Time:	Less Than 10ms
Certificate:	CE, ROHS
Warranty:	1 Year

8KW 10KW 12KW DC To AC Pure Sine Wave Inverter Toroidal Inverter Overload Protection

Overload Protection RP Series 8KW 10KW 12KW DC to AC Pure Sine Wave Toroidal Inverter 8000W 10000W Power Inverter Charger

Model

RS2000

RS3000

RS4000

RS5000

RS6000

Rated Power

2000W

3000W

4000W

5000W

6000W

INPUT

Voltage

100/110/120Vac, 220/230/240Vac

Selectable Voltage Rang

Wide Range: 75vac - 138vac, 155vac - 275vac (For Home Appliances)

Narrow Rang: 82vac -138vac, 165vac - 275vac (For Peronal Computer)

Frequency Range

40-70Hz(50Hz/60Hz)

OUTPUT

AC Voltage Regulation

Vout (±10V)

Surge Power

4000VA

9000VA

12000VA

15000VA

18000VA

Efficiency (Peak)

88%

91%

Transfer Time

＜20ms

＜10ms

Waveform

Pure Sine Wave

BATTERY

Battery Voltage

24V

48V

24V

48V

24V

48V

24V

48V

Charge Current

35A

50A

25A

70A

35A

75A

45A

75A

50A

Fast Charge Voltage

28.6VDC

28.6 VDC

57.2 VDC

28.6 VDC

57.2VDC

28.6 VDC

57.2 VDC

28.6 VDC

57.2 VDC

Float Charge Voltage

27.4VDC

27.4

VDC

54.8

VDC

27.4 VDC

54.8VDC

27.4 VDC

54.8 VDC

27.4 VDC

54.8 VDC

Over Charge Voltage

33.0VDC

33.0 VDC

66.0

VDC

33.0 VDC

66.0 VDC

33.0 VDC

66.0 VDC

33.0 VDC

66.0 VDC

Battery low Voltage

Alarm

21.0VDC

21.0

VDC

42.0

VDC

21.0 VDC

42.0VDC

21.0 VDC

42.0 VDC

21.0 VDC

42.0 VDC

Battery low Voltage Shutdown

20.0VDC

20.0

VDC

40.0

VDC

20.0

VDC

40.0

VDC

20.0

VDC

40.0

VDC

20.0

VDC

40.0

VDC

Protection

Over Charging, Over Temp, Over Battery voltage, Over load, short-circuit

Operating environment temperature

55℃

Cooling

Intelligent Fan

Display

Color LCD

Specification Setting

By LCD or Position Machine:

Charging Current, Battery Type, Input Voltage, Output Frequency, Wide and Narrow rang of AC Input voltage, Power-Saver Model,

AC Priority or Battery Priority

PHYSICAL

Dimension
D*W*Hmm

390*222*178

500*258*190

574*345*197

Net Weight (kgs)

25.2

24.6

34.4

33.8

37.9

38.2

41.6

40.5

ENVIRONMENT

Humidity

5~95% Relative Humidity (Non-condensing)

Operating Temperature

-10℃ to 50℃

Storage Temperature

-15℃ to 60℃

Advantages and Features:

 Pure sine wave inverter Output power factor
 Selectable high-power charging current
 Selectable input voltage range for home appliances and personal computers
 Configurable AC/Battery input priority via LCD setting
 Compatible with generator power
 Auto restart while AC is recovering
 Overload and short circuit protection
 Smart battery charger design for optimized battery performance
 Cold start function
 Color LCD display
 Supports the use of lithium batteries
 Wave-by-wave phase detection, more stable and reliable
 RS232 communication port and remote control panel optional
 Dry contact communication port is available, pls confirm with the supplier

RS series is a pure sine wave power frequency inverter that converts direct current into alternating current. The equipment is safe and efficient, energy saving and environmental protection, fully functional, easy to install, simple to operate, intelligent and friendly, etc.

DC-AC inverter module adopts full digital intelligent design and outputs pure sine wave. Suitable for household appliances, power tools, industrial equipment, electronic audio and video and other AC load.

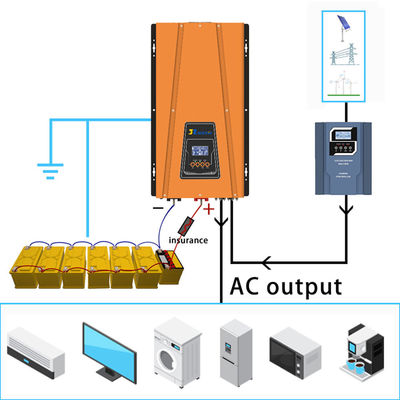

This is the common application of inverters, it also includes the following equipment can constitute a complete operating system • Generator or Utility. • PV modules Inverter can be applied to most home and office appliances, such as refrigerators, air conditioners, notebooks; Consult us for additional system architectures based on your requirements

More than 30,000 customers are attracted by our company, because we strictly control the installation and inspection of electrical products before leaving the factory and the test before delivery, so that we can do the best we can, so that our customers can use our products at ease)

We have passed Rohs certification, CE certification, BSCI, KC, FCC,Alibaba Vertified certification and design patent and other international certifications. Strictly control materials, processing, assembly, debugging, testing, packaging, transportation and other links to ensure the performance and quality of electrical products)

···········································································································································································
Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it
worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6:We provides one year warranty.

Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the
shipping cost was.
