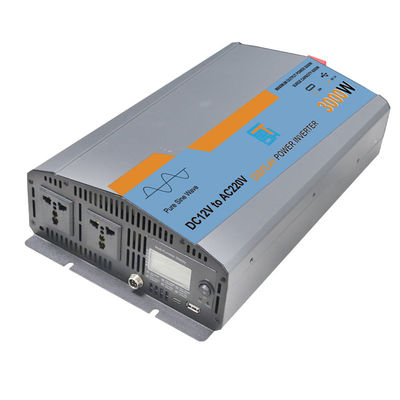

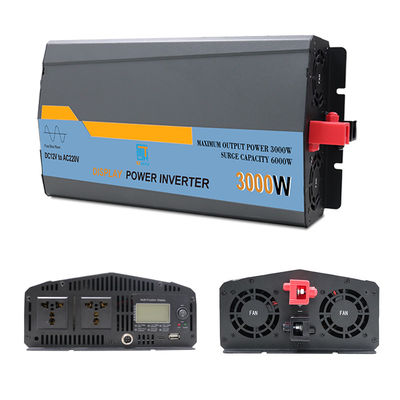

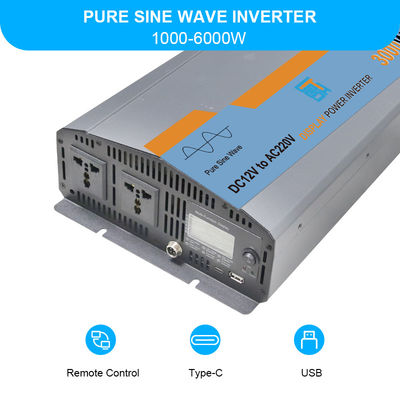

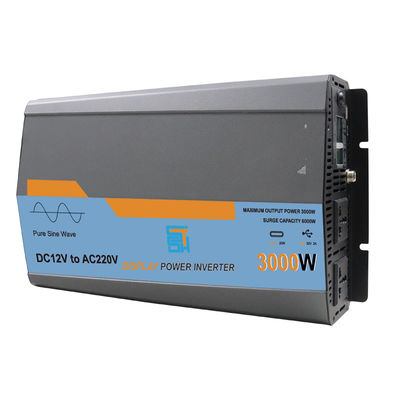

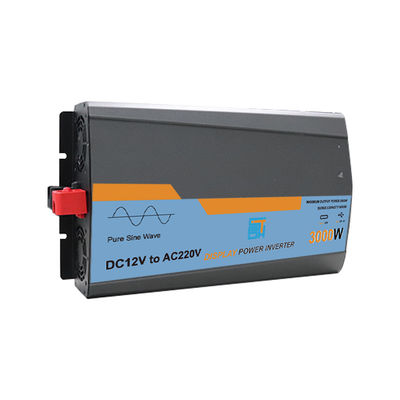

3000W High Frequency Pure Sine Wave Inverter 12V 220V Output Type Single MTS Series

Name: 3000W High Frequency Pure Sine Wave Inverter 12V 220V Output Type Single MTS Series
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: MTS-3000W
Price: 12.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: MTS-3000W

Payment & Shipping Terms

Minimum Order Quantity: 50 sets

Price: CN¥23.41-1,280.18/sets

Packaging Details: One Set into a gift box
4 Sets into one Carton

1set/box, 53*26*10cm,
NW: 7KG, GW: 8KG

Supply Ability: 10000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3000W High Frequency Pure Sine Wave Inverter, 3000W  Pure Sine Wave Inverter  220V, 12V High Frequency Pure Sine Wave Inverter


Network:	SDK, Off Grid	Type:	DC/AC Inverters
Output Type:	Single	Output Current:	27.27A(110V)/13.64A(220V)
Output Frequency:	50Hz/60Hz, 50Hz/60Hz ±4Hz	Size:	47022092mm
Weight:	8.2 KG	Product Name:	3000w Inverter Dc To Ac Converter 24V 36V 12V 220v
Output Waveform:	Pure Sine Wave	Rated Power:	3000W
Peak Power:	6000W	High Voltage Cut Off Level:	DC15+/-0.5V
Low Voltage Cut Off Level:	DC10.5 +/- 0.3V	Certificate:	KCC CE ROHS, CE, ROHS, KCC
Protection:	Short-circuit, Over-load,Over-Voltage,Over-heat,Low-Voltage	Warranty:	12 Months
Customized Support:	Software Reengineering	Port:	Shenzhen

Network:	SDK, Off Grid
Type:	DC/AC Inverters
Output Type:	Single
Output Current:	27.27A(110V)/13.64A(220V)
Output Frequency:	50Hz/60Hz, 50Hz/60Hz ±4Hz
Size:	47022092mm
Weight:	8.2 KG
Product Name:	3000w Inverter Dc To Ac Converter 24V 36V 12V 220v
Output Waveform:	Pure Sine Wave
Rated Power:	3000W
Peak Power:	6000W
High Voltage Cut Off Level:	DC15+/-0.5V
Low Voltage Cut Off Level:	DC10.5 +/- 0.3V
Certificate:	KCC CE ROHS, CE, ROHS, KCC
Protection:	Short-circuit, Over-load,Over-Voltage,Over-heat,Low-Voltage
Warranty:	12 Months
Customized Support:	Software Reengineering
Port:	Shenzhen

3000W High Frequency Pure Sine Wave Inverter 12V 220V Output Type Single MTS Series

High Frequency 12V 220V Output Type Single MTS Series 3000 Watt 24V 36V Pure Sine Wave Inverter with Over-heat Protection

Products Description

Production Specifications
Input Voltage	DC 12V(10.5-14.8V) /24V(20-28V)
Output Voltage	AC 220V, 230V 240V (100V, 110V, 120V)
Continuous Output Power	1000W	2000W	3000W
Peak Power(Max)	2000W	4000W	6000W
Waveform	Pure Sine Wave
Output Frequency	50Hz-60Hz ± 4Hz
Availability Power	90.5%
Low Voltage Alarm	10.5V+0.5V /20.5+0.5V
Low Voltage Range	＜9.6V/20.5V
High Voltage Range	＞14.8V/31V
Non-load Current	≤0.4A	≤0.4A	≤0.4A
Overheat Protection	＞1100W	＞2100W	＞3100W
Fuse(Built-in)	12*30A	12*30A	12*30A
Cooling Fan	Yes, Automatic Temperature-controlled
Charging AC Input Voltage	AC 110V-240V
Charging AC Voltage	DC14.4V /DC28.8V
Charging Current	About 10A (Automatic)
USB	5V 2.4A
Type-C(PD)	PD 20W
Remoted Control	3M remote line control /5M remote control
Reverse Protection	Yes
Short-Circuit Protection	Yes
Dimensions	34818595mm	398229110	498229119

Features:

1. Pure sine wave output waveform

2. High transform efficiency, quick start

3. High adaptability and stability

4. Automatic over-current and output short-circuit protection to avoid damage to equipment

5. Temperature-controlled fan, safe&efficient

6. Safe and reliable with a built-in fuse

7. Customized input voltage such as 36V,48V,72V,96V,etc.
Output voltage such as 120v, 130v, 200V,240v, etc
8. Different kinds of sockets are available, Universal sockets, American sockets, European sockets, Brazil sockets

Seven major upgrades, higher than the market standard
Appearance	Private mold (Alloy materials are easier to dissipate heat)
Electric Circuit	New pure copper material (the current is more stable)
Display	LCD Display (Energy efficiency & Long-Lasting)
Function	Remote control/2 Sockets
Perfomance	Output is more stable & Real rated power
Inside Structure	Modular structure (quality upgrade)
Warranty	2 year warranty & Perfect after sales service

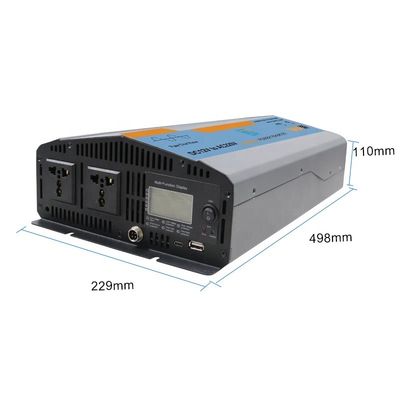

MTS 3000W Size Dimension

498*229*110MM

Remote Control System	5M remote control
Remote Control System		3M line remote control

Different kinds of sockets are available/can be chosen

Universal sockets, American sockets, European sockets, Brazil sockets

Socket model	American Socket
		Australia Socket
		UK Socket
		France Socket
		South Africa Socket
		Universal Socket
		Brazil Socket
		Italy Socket
		Japan Socket
		Germany Socket

This Is The Common Application Of Inverters, It Also Includes The Following Equipment Can Constitute A Complete Operating System

•Generator Or Utility • PV Modules

Inverter Can Be Applied To Most Home And Office Appliances, Such As Refrigerators, Air Conditioners, Notebooks; Consult Us For Additional System Architectures Based On Your Requirements

ATTENTION

The System Needs To Be Determined According To Your Battery Capacity, The Specific Use Of The Required Load And Applicable Scenarios, Otherwise It Is Prone To Excessive Waste Or Unable To Operate. If You Need, Please Refer To The Manual Recommendation Or Consult Online Customer Service

Rated Products

Certification

Certificate:

We have obtained the CE,RoHS,FCC, LVD, TUV,,UL,KC, SAA,SGS,UKCA, REACH,PAHS ,BSCI,NF,GS

Company Profile

Our factory! Welcome to our Factory!

----------------------------------------------------------------------------------------------

Production process

Exhibition

FAQ

Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?

A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it
worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from你the lithium battery parameter. Please show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3: Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6: We provides one year warranty.

Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9: Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
