LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System

LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System

Brand Name: SZSSTH
Model Number: VICTOR NMS-1500-24
Price: CN¥877.11/pieces 1-499 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Input Voltage:
24V
Output Voltage:
220V 230V
Output Current:
Load
Output Frequency:
50Hz/60Hz
Output Type:
Single
Size:
348x270x95mm
Type:
DC/AC Inverters
Inverter Efficiency:
95%
Weight:
4kg
Product Name:
Hybrid Solar Inverter 1.5Kw
Inverter Type:
Hybrid Off Grid Solar Inverter
Controller Type:
MPPT Solar Controller
Communication:
WiFi/GPRS(Optional)
Battery Type:
Lead Acid \ Lithium \ Gel
Protection:
Overload
Rated Power:
1500VA
AC Voltage:
230VAC
Display:
LCD Display
Max PV Voltage:
150V
Certificate:
CE, ROHS
Warranty:
1 Year
Highlight:

1500VA All In One Hybrid Inverter

,

1500VA All In One Solar Inverter

,

LCD Display Hybrid Solar Inverter

Product Description
Products Description
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 0
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 1
Product Features

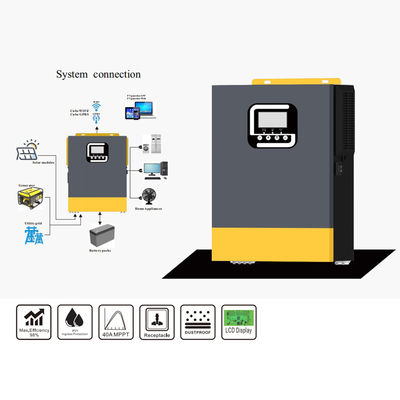

1.Pure sine wave solar inverter 2.Built-in 40A MPPT solar charger 3.PVinput voltage range20-150VDC (for 1000W),30~150VDC(for 1500W)Built-in anti-dust kit for harsh environment 4.Smart battery charge design to optimize battery life 5.meet rich customized demands 6.Solar energy is provided directly to the load first

Model
VICTOR NMS-1000-12
VICTOR NMS-1500-24
RATED POWER
1000W/1000VA
1500W/1500VA
AC Input


Voltage
230VAC

Selectable Voltage Range
170~280VAC(For Personal Computers)


90~280VAC(For Home Appliances)

Frequency Range
50Hz/60Hz(Autosensing)

AC OUTPUT


AC Voltage Regulation
230VAC±5%

Surge Power
2000VA
3000VA
Efficiency(Peak) PV to IN V
98%

Efficiency(Peak) Battery to IN V
94%

Transfer Time
10ms

BATTERY


Battery Voltage
12VDC
24VDC
Floating Charge Voltage
13.5VDC
27VDC
Overcharge Protection
16VDC
32VDC
SOLAR CHARGER&AC CHARGER


Solar Charger Type
MPPT

Maximum PV Array Power
600W
1200W
MPPT Range@Operating Voltage
20~150VDC
30-150VDC
Maximum PV Array Open Circuit
Voltage solar
150VDC

Maximum Solar Charging Current
40A

Maximum AC Charging Current
40A

Maximum Solar+AC Charging
Current
80A

PHYSICAL


Dimension, D*W*H(mm)
290*240*91

Cartoon Dimension, D“W*H(mm)
340*295*145

Net Weight(kgs)
3.5
3.6
Gross Weight(kgs}
4.0
4.2
ENVIRONMENT


Humidity
5%to 95%Relative Humidity(Non-condensing)

Operating Temperature
-10℃-50℃

STANDARD


Compliance Safety
CE

LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 2
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 3
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 4
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 5
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 6
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 7
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 8
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 9
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 10
LCD Display 1500VA All In One Hybrid Solar Inverter 24V For Off Grid System 11
