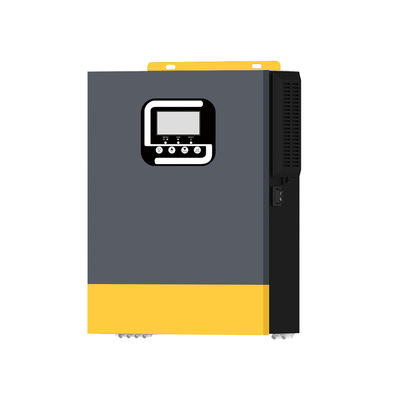

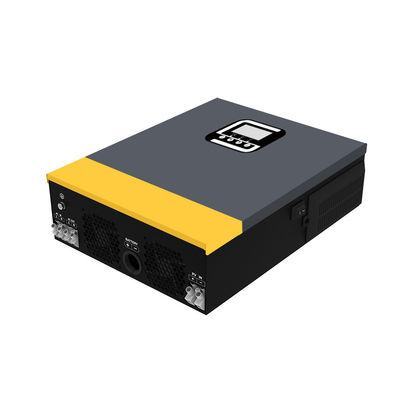

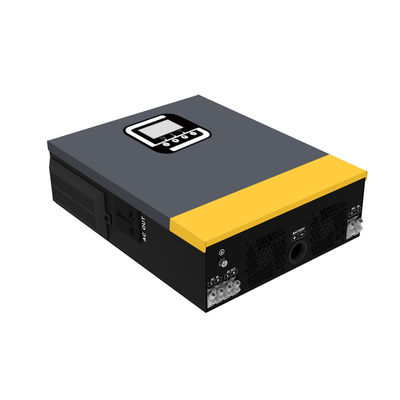

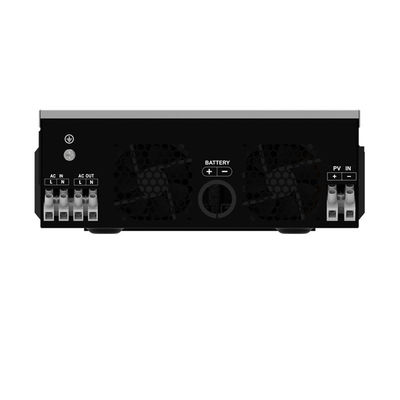

24VDC 220/230VAC Pure Sine Wave Solar Inverter 1.5kw Double MPPT Solar Inverter 1.5kva

Name: 24VDC 220/230VAC Pure Sine Wave Solar Inverter 1.5kw Double MPPT Solar Inverter 1.5kva
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: VICTOR NMS-1500-24
Price: 250.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: VICTOR NMS-1500-24

Payment & Shipping Terms

Price: CN¥877.11/pieces 1-499 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Pure Sine Wave Solar Inverter 1.5kw, 1.5kw  double mppt solar inverter, Double MPPT solar inverter 1.5kva


Input Voltage:	24V	Output Voltage:	220V 230V
Output Current:	Load	Output Frequency:	50Hz/60Hz
Output Type:	Single	Size:	348x270x95mm
Type:	DC/AC Inverters	Inverter Efficiency:	95%
Weight:	4kg	Product Name:	Hybrid Solar Inverter 1.5Kw
Inverter Type:	Hybrid Off Grid Solar Inverter	Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)	Battery Type:	Lead Acid \ Lithium \ Gel
Protection:	Overload	Rated Power:	1500VA
AC Voltage:	230VAC	Display:	LCD Display
Max PV Voltage:	150V	Certificate:	CE, ROHS
Warranty:	1 Year

Input Voltage:	24V
Output Voltage:	220V 230V
Output Current:	Load
Output Frequency:	50Hz/60Hz
Output Type:	Single
Size:	348x270x95mm
Type:	DC/AC Inverters
Inverter Efficiency:	95%
Weight:	4kg
Product Name:	Hybrid Solar Inverter 1.5Kw
Inverter Type:	Hybrid Off Grid Solar Inverter
Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)
Battery Type:	Lead Acid \ Lithium \ Gel
Protection:	Overload
Rated Power:	1500VA
AC Voltage:	230VAC
Display:	LCD Display
Max PV Voltage:	150V
Certificate:	CE, ROHS
Warranty:	1 Year

24VDC 220/230VAC Pure Sine Wave Solar Inverter 1.5kw Double MPPT Solar Inverter 1.5kva

Products Description

Product Features

1.Pure sine wave solar inverter 2.Built-in 40A MPPT solar charger 3.PVinput voltage range20-150VDC (for 1000W),30~150VDC(for 1500W)Built-in anti-dust kit for harsh environment 4.Smart battery charge design to optimize battery life 5.meet rich customized demands 6.Solar energy is provided directly to the load first

Model	VICTOR NMS-1000-12	VICTOR NMS-1500-24
RATED POWER	1000W/1000VA	1500W/1500VA
AC Input
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
Selectable Voltage Range		90~280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Autosensing)
AC OUTPUT
AC Voltage Regulation	230VAC±5%
Surge Power	2000VA	3000VA
Efficiency(Peak) PV to IN V	98%
Efficiency(Peak) Battery to IN V	94%
Transfer Time	10ms
BATTERY
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Overcharge Protection	16VDC	32VDC
SOLAR CHARGER&AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	600W	1200W
MPPT Range@Operating Voltage	20~150VDC	30-150VDC
Maximum PV Array Open Circuit Voltage solar	150VDC
Maximum Solar Charging Current	40A
Maximum AC Charging Current	40A
Maximum Solar+AC Charging Current	80A
PHYSICAL
Dimension, DWH(mm)	29024091
Cartoon Dimension, D“W*H(mm)	340295145
Net Weight(kgs)	3.5	3.6
Gross Weight(kgs}	4.0	4.2
ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10℃-50℃
STANDARD
Compliance Safety	CE
