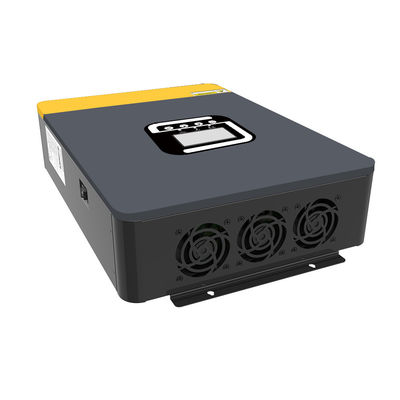

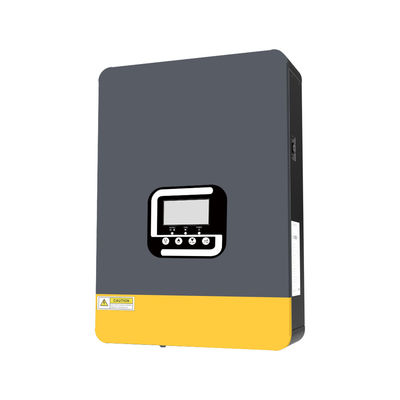

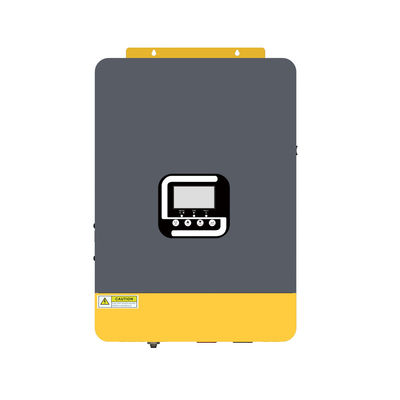

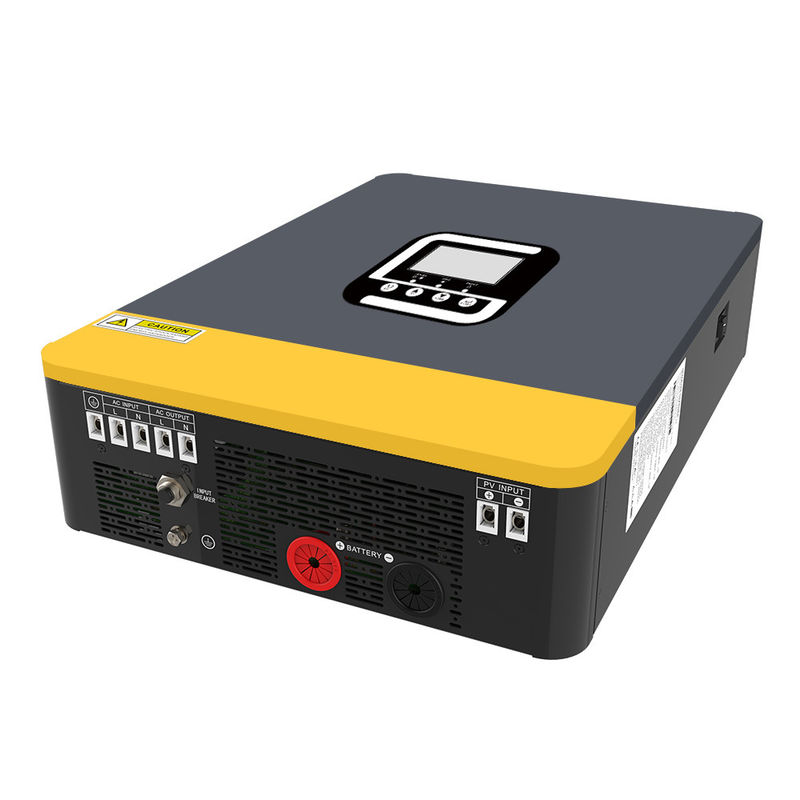

3.8kW AC DC Solar Hybrid Inverter MPPT Off Grid 4.2kVA 24V 220V Pure Sine Wave Inverter

Name: 3.8kW AC DC Solar Hybrid Inverter MPPT Off Grid 4.2kVA 24V 220V Pure Sine Wave Inverter
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SP-4200
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: SP-4200

Payment & Shipping Terms

Price: CN¥1,426.49/pieces 1-499 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3.8kW Solar Hybrid Inverter, 4.2kVA 220V Pure Sine Wave Inverter, Solar Hybrid Inverter  4.2kVA


Input Voltage:	24V	Output Voltage:	220V 230V
Output Current:	Load	Output Frequency:	50Hz/60Hz
Output Type:	Single	Size:	423290100mm
Type:	DC/AC Inverters	Inverter Efficiency:	98%
Weight:	6.8kg	Product Name:	Hybrid Solar Inverter 3.8Kw
Inverter Type:	Hybrid Off Grid Solar Inverter	Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)	Battery Type:	Lead Acid \ Lithium \ Gel
Protection:	Overload	Rated Power:	4200VA
AC Voltage:	230VAC	Display:	LCD Display
Max PV Voltage:	450V	Certificate:	CE, ROHS
Warranty:	1 Year

Input Voltage:	24V
Output Voltage:	220V 230V
Output Current:	Load
Output Frequency:	50Hz/60Hz
Output Type:	Single
Size:	423290100mm
Type:	DC/AC Inverters
Inverter Efficiency:	98%
Weight:	6.8kg
Product Name:	Hybrid Solar Inverter 3.8Kw
Inverter Type:	Hybrid Off Grid Solar Inverter
Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)
Battery Type:	Lead Acid \ Lithium \ Gel
Protection:	Overload
Rated Power:	4200VA
AC Voltage:	230VAC
Display:	LCD Display
Max PV Voltage:	450V
Certificate:	CE, ROHS
Warranty:	1 Year

3.8kW AC DC Solar Hybrid Inverter MPPT Off Grid 4.2kVA 24V 220V Pure Sine Wave Inverter

3.8kW AC DC Hybrid Solar Inverter MPPT Off Grid 4.2kVA 24V 220V Pure Sine Wave Inverter Overload Protection 423*290*100mm

Products Description

Product Features

1.Pure sine wave inverter

2.Programmable supply priority for PV,battery or Grid

3.High Pv input voltage range(55~450VDC)

4.Built-in Max 110A(3.8KW&6.2KW) MPPT solar charge

5.Compatibe with lithium-ion battery

6.Support BMS communication with Lithium battery

7.Smart battery charge design to optimize battery life

8.Overload,high temperature,inverter output short circuit protection

9.Cold start function

10.Intelligent fan speed adjustment

11.Built-in anti-dusk kit for harsh enviromen(optional)

12.WIFl&GPRS available for lOS and android

MODEL	SP-2200	8P-3200	SP-4200	8P-4200	8P-7000
Rated Power	2200VA/1800W	3200VA/3000W	4200VA/3800W	4200VA/3800W	7000VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz(Autosensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge power	4400VA	6400VA	8400VA	8400VA	14000VA
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
Waveform	Pure SineWave
BATTERY&AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC	61VDC
Maximum charge current	60A			80A	60A	80A
SOLAR CHARGER
MAX.PV Array Power	2000W	3000W	6000W
MPPT Range@Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A			110A	80A	110A
Maximum Efficiency	98%
PHYSICAL
Dimension.DWH(mm)	40528698mm			423290100mm	423290105mm
Net Weight(kgs)	4.5kg	5.0kg	6.8kg	6.9kg	7.5kg
Communication Interface	RS 232/RS 485(Standard) WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10"C to 55°C
Storage Temperature	-15"Cto60C
