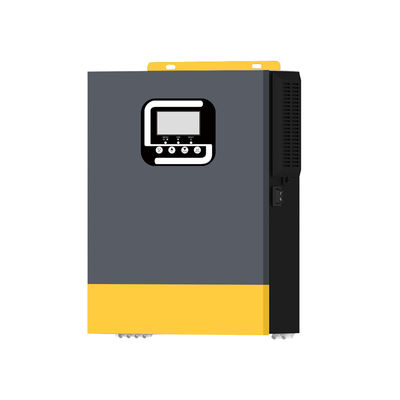

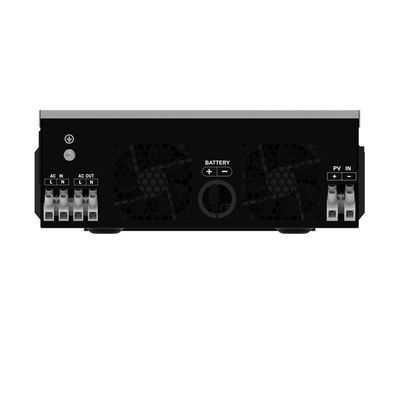

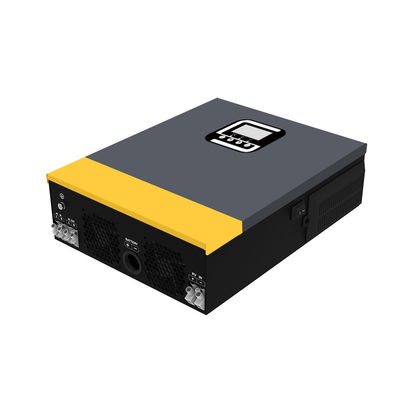

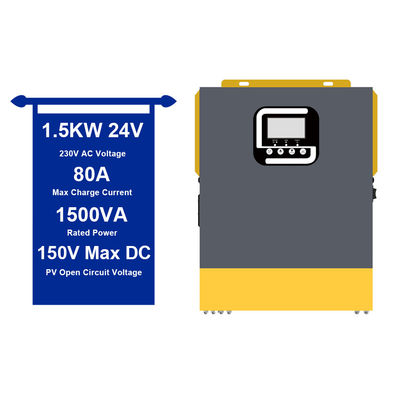

24V 1.5 Kw Pure Sine Wave Inverter For Solar Home System 50Hz/60Hz

24V 1.5 Kw Pure Sine Wave Inverter For Solar Home System 50Hz/60Hz

Brand Name:	SZSSTH
Model Number:	VICTOR NMS-1500-24
Price:	CN¥877.11/pieces 1-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

24V

Output Voltage:

220V 230V

Output Current:

Load

Output Frequency:

50Hz/60Hz

Output Type:

Single

Size:

348x270x95mm

Type:

DC/AC Inverters

Inverter Efficiency:

95%

Weight:

4kg

Product Name:

Hybrid Solar Inverter 1.5Kw

Inverter Type:

Hybrid Off Grid Solar Inverter

Controller Type:

MPPT Solar Controller

Communication:

WiFi/GPRS(Optional)

Battery Type:

Lead Acid \ Lithium \ Gel

Protection:

Overload

Rated Power:

1500VA

AC Voltage:

230VAC

Display:

LCD Display

Max PV Voltage:

150V

Certificate:

CE, ROHS

Warranty:

1 Year

Highlight:

24V 1.5 Kw Pure Sine Wave Inverter

Home Solar Inverter 50Hz

Pure Sine Wave Inverter 60Hz

Product Description

Pure Sine Wave 1.5KW 24V MPPT Hybrid Off-Gird Solar Inverter for Solar Home System Output Frequency 50Hz/60Hz ROHS Certified

Products Description

Product Features

1.Pure sine wave solar inverter 2.Built-in 40A MPPT solar charger 3.PVinput voltage range20-150VDC (for 1000W),30~150VDC(for 1500W)Built-in anti-dust kit for harsh environment 4.Smart battery charge design to optimize battery life 5.meet rich customized demands 6.Solar energy is provided directly to the load first

Model	VICTOR NMS-1000-12	VICTOR NMS-1500-24
RATED POWER	1000W/1000VA	1500W/1500VA
AC Input
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
Selectable Voltage Range		90~280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Autosensing)
AC OUTPUT
AC Voltage Regulation	230VAC±5%
Surge Power	2000VA	3000VA
Efficiency(Peak) PV to IN V	98%
Efficiency(Peak) Battery to IN V	94%
Transfer Time	10ms
BATTERY
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Overcharge Protection	16VDC	32VDC
SOLAR CHARGER&AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	600W	1200W
MPPT Range@Operating Voltage	20~150VDC	30-150VDC
Maximum PV Array Open Circuit Voltage solar	150VDC
Maximum Solar Charging Current	40A
Maximum AC Charging Current	40A
Maximum Solar+AC Charging Current	80A
PHYSICAL
Dimension, DWH(mm)	29024091
Cartoon Dimension, D“W*H(mm)	340295145
Net Weight(kgs)	3.5	3.6
Gross Weight(kgs}	4.0	4.2
ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10℃-50℃
STANDARD
Compliance Safety	CE
