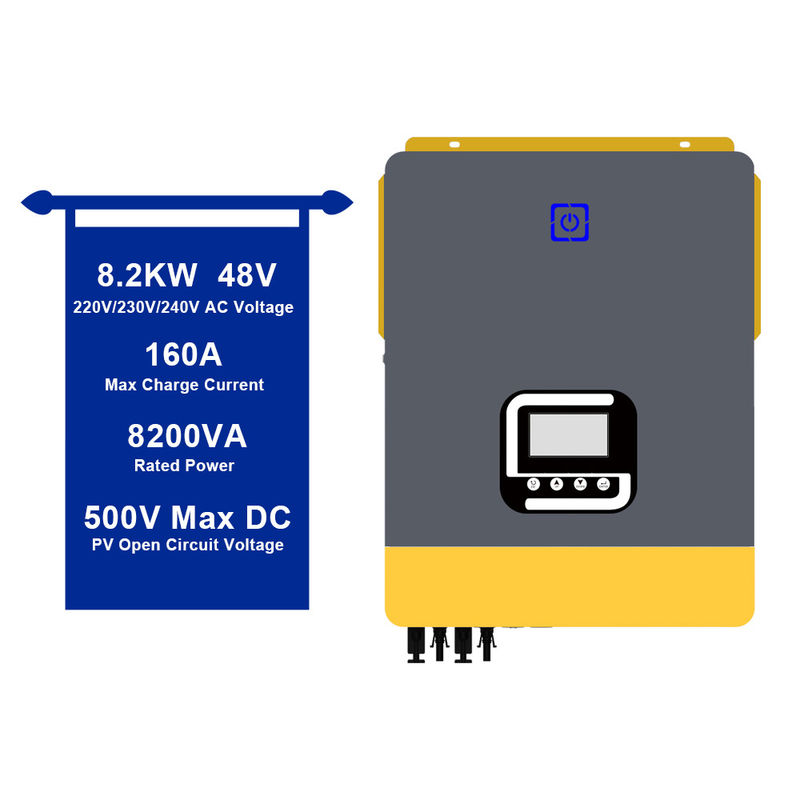

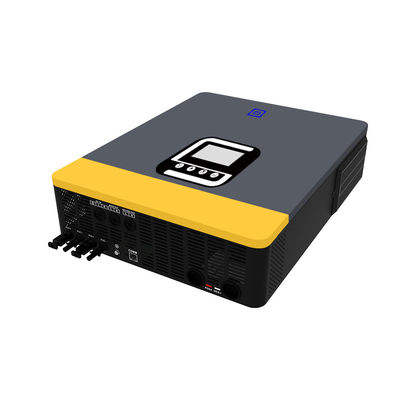

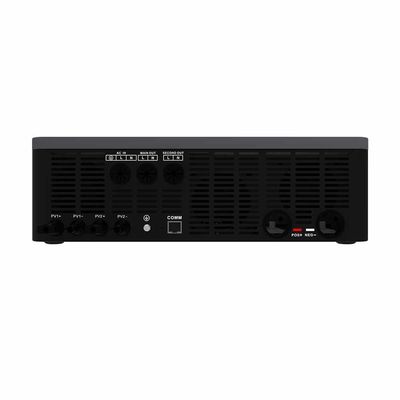

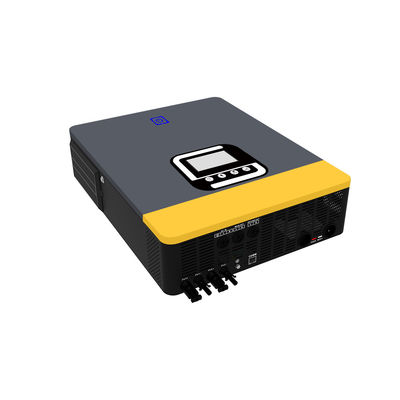

Single Output MPPT Pure Sine Wave Inverter 48V 8KVA 8000w Solar Inverter

Name: Single Output MPPT Pure Sine Wave Inverter 48V 8KVA 8000w Solar Inverter
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: VICTOR MAX-8.2KW
Price: 2.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: VICTOR MAX-8.2KW

Payment & Shipping Terms

Price: CN¥3,109.01/pieces 1-499 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                MPPT Pure Sine Wave Inverter 48V, Single Output  8000w solar inverter, 8KVA  MPPT Pure Sine Wave Inverter


Input Voltage:	48V	Output Voltage:	220V 230V
Output Current:	Load	Output Frequency:	50Hz/60Hz
Output Type:	Single	Size:	530390130mm
Type:	DC/AC Inverters	Inverter Efficiency:	98%
Weight:	15.7kg	Product Name:	Hybrid Solar Inverter 8.2Kw
Inverter Type:	Hybrid Off Grid Solar Inverter	Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)	Battery Type:	Lead Acid \ Lithium \ Gel
Protection:	Overload	Rated Power:	8200VA
AC Voltage:	230VAC	Display:	LCD Display
Max PV Voltage:	500V	Certificate:	CE, ROHS
Warranty:	1 Year

Input Voltage:	48V
Output Voltage:	220V 230V
Output Current:	Load
Output Frequency:	50Hz/60Hz
Output Type:	Single
Size:	530390130mm
Type:	DC/AC Inverters
Inverter Efficiency:	98%
Weight:	15.7kg
Product Name:	Hybrid Solar Inverter 8.2Kw
Inverter Type:	Hybrid Off Grid Solar Inverter
Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)
Battery Type:	Lead Acid \ Lithium \ Gel
Protection:	Overload
Rated Power:	8200VA
AC Voltage:	230VAC
Display:	LCD Display
Max PV Voltage:	500V
Certificate:	CE, ROHS
Warranty:	1 Year

Single Output MPPT Pure Sine Wave Inverter 48V 8KVA 8000w Solar Inverter

Products Description

Product Features

1.Pure sine wave solar inverter(on/off Grid)

2.Output power factor 1.0

3.WIFI&GPRS available for lOS and Android

4.Inverter can run without battery

5.One-key restoration to factory Settings

6.Built-in Lithium battery automatic activation

7.Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)

8.Dual communication ports for Battery communicationand Wifi communication

MODEL	VICTOR MAX-.2KW	VICTOR MAX-1.2KW
Phase	1-phase
Maximum PV Input Power	5400W+5400W
Rated Oul put Power	8200W/8200VA	10200W/10200VA
Maximum Solar Char eng Current	160A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /Initial Feeding Voltage	9OVDC/120VDC
MPPT Voltage Range	90-450VDC
Maximum Input Current	2/18A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190-253VDC
Nominal Output Current	35.6A	44.3A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	8200W	10200W
Maxium Main Load	8200W	10200W
Maxium Second Load battery mode)	2733W	3400W
Maxium Load Cut Off Voltage	52VDC
Maxium Load Return Voltage	54VDC
OFF-GRID OPERATION
AG INPUT
AC Start-up Voltage /Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VACor170-280VAC
Frequency Range	49-51±1HZ
Maximum AC Input Current	40A	50A
PV INPUT IDC
NominalDCVoltage/Maximum DC Voltage	360/500VDC
MPPT Voltage Range	90-450vDC
Maximum input Current	2/18A
BATTERY MODE OUTPUT IAC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	48VDC
Maximum Solar Charging Current	160A
Maximum AC Charging Current	140A
Maximum Solar+AC Charging Current	160A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360V/500VDC
Start-up Voltage /Initial Feeding Voltage	90VDC/1120VDC
MPPT Voltage Range	90-450VDC
Maximum Input Current	2/18A
GRID OUTPUT IAC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190-253VDC
Nominal Output Current	35.6A	44.3A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VACor 170-180VAC
Maximum AC input Current	40A	50A
Maximum AC Charging Current	140A
GENERAL
PHYSICAL
Dimension DWH(mm)	530390130
Cartoon Dimension DWH(mm)	618463205
Net Weight(kgs)	14.2	14.7
Gross Weigh(kgs)	15.7	16.2
INTERACE
Communication Port	RS232/RS485/WIFIGPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non~condensing)
Operating Temperature	-10℃-60℃
STANDARD
Compliance Safety	CE
