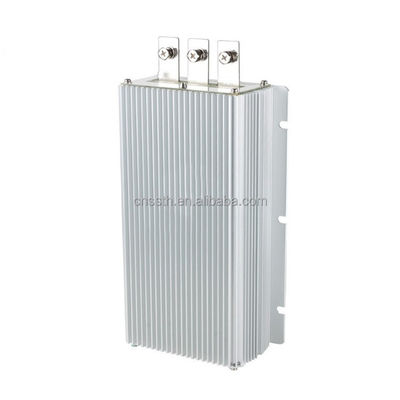

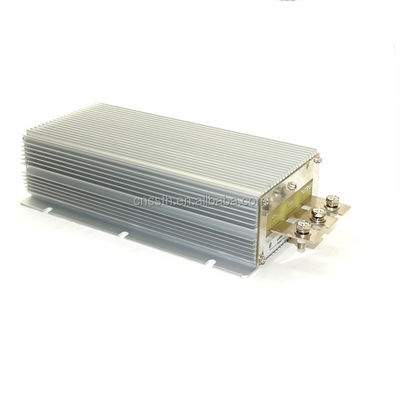

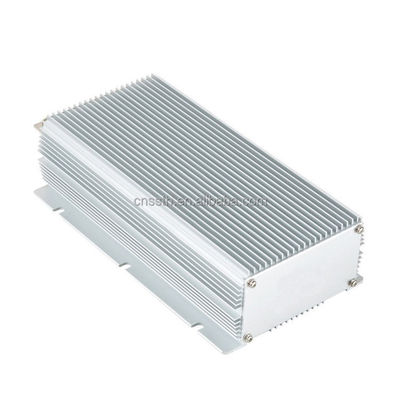

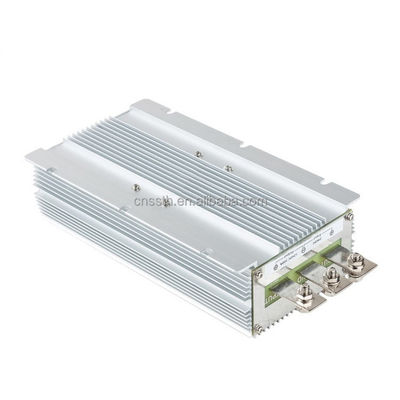

Portable DC 24V To DC 12V Converter 100A Voltage Regulator Module Lightweight

Name: Portable DC 24V To DC 12V Converter 100A Voltage Regulator Module Lightweight
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: 100A
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: 100A

Payment & Shipping Terms

Price: CN¥2,128.76/pieces 1-99 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                DC 24V to DC 12V Converter 100A, Portable DC 24V to DC 12V Converter


Network:	SDK, Nfc	Type:	DC/AC Inverters
Output Type:	Single	Output Current:	100A
Size:	22012763mm	Weight:	2.35 KG
Product Name:	100A Voltage Regulator Module 100a Converter	Input Voltage Range:	24Vdc(18-36Vdc)
Feature:	Non-isolated	Output Voltage:	12V
Working Temperature:	-35℃ ~ 80℃	Protection:	Overload/overvoltage/short Circuit Protection
Efficiency:	95%	Application:	LED Strp/Motor/truck
Advantage:	Ultra Compact Size, Light Weight , High Reliability	Customized Support:	Software Reengineering
Certificate:	CE, ROHS

Network:	SDK, Nfc
Type:	DC/AC Inverters
Output Type:	Single
Output Current:	100A
Size:	22012763mm
Weight:	2.35 KG
Product Name:	100A Voltage Regulator Module 100a Converter
Input Voltage Range:	24Vdc(18-36Vdc)
Feature:	Non-isolated
Output Voltage:	12V
Working Temperature:	-35℃ ~ 80℃
Protection:	Overload/overvoltage/short Circuit Protection
Efficiency:	95%
Application:	LED Strp/Motor/truck
Advantage:	Ultra Compact Size, Light Weight , High Reliability
Customized Support:	Software Reengineering
Certificate:	CE, ROHS

Portable DC 24V To DC 12V Converter 100A Voltage Regulator Module Lightweight

Portable DC 24V to DC 12V 100A Voltage Regulator Module Converter Lightweight and for Set Down Voltage Requirement

Products Description

High quality portable DC24V to DC12V 100A voltage regulator module 100a converter for set down voltage

Feature:

> Full power, stable voltage & current output.
> Wide input voltage range.
> Waterproof & anti-shock protection, Ultra compact size, light weight.
> Industry grade product 24v to 12v dc converter 100a, efficiency up to 96%.
> Die-cast aluminum shell, epoxy potting.
> Non-Isolated Module.
> 12 months warranty.

Product Paramenters

Product Name	24v to 12v dc converter 100a
Input rated voltage	24V DC
Input voltage range	15-30V DC
Conversion Efficiency	96%
Output voltage	12V DC
Output current	100 Amps
Output rated power	1200 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	26512763mm
Package size	300152100mm
N. Weight	2.3kg
W. Weight	2.4kg
Cooling way	Free air convection
Certifications	CE, RoHS
Other	Standard box packing

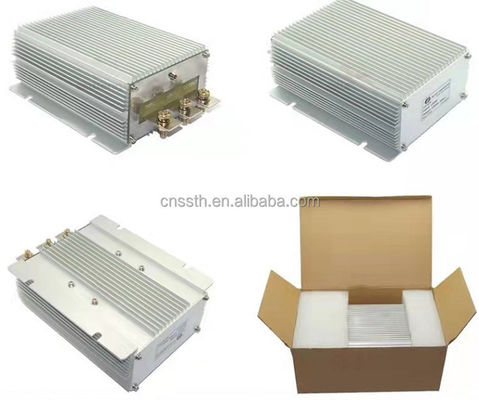

Details Images
