Power Supply Module Step Down 24vdc To 12vdc Converter 5A 10A 15A 20A 30A 40A 100A

Power Supply Module Step Down 24vdc To 12vdc Converter 5A 10A 15A 20A 30A 40A 100A

Brand Name:	SZSSTH
MOQ:	10 pieces
Price:	CN¥43.90-109.73/pieces
Supply Ability:	1000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Network:

SDK, Nfc

Type:

DC/DC Converters, DC/DC Converters

Output Type:

Single, Single

Output Current:

30A

Output Frequency:

50Hz/60Hz ±4Hz

Size:

15*10*5.2

Weight:

0.55 KG

Product Name:

Step Down Negative Booster Converters Dc 24v To Dc 12v Converter

Current:

30A

Efficiency:

>95%

Input Voltage Range:

16-35V

Output Voltage:

12V

Standby Current(mA):

<30

Temperature:

-30~+50℃

Protection:

Over Voltage,short Circuit, Over Load, Over Temperature

Customized Support:

Software Reengineering

Certificate:

CE, ROHS

Port:

Shenzhen, Guangzhou, Or Other Port In China

Highlight:

Step Down 24vdc to 12vdc converter

24vdc to 12vdc converter 5A

Product Description

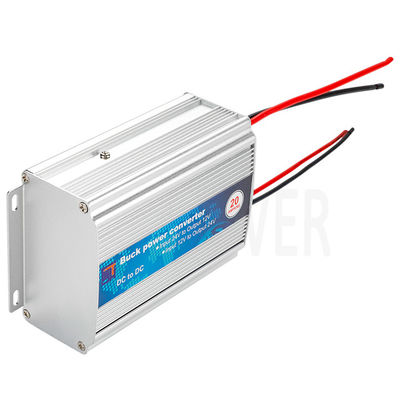

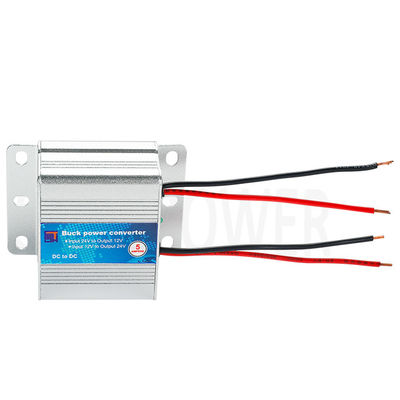

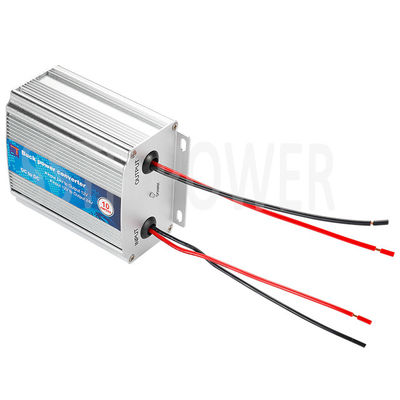

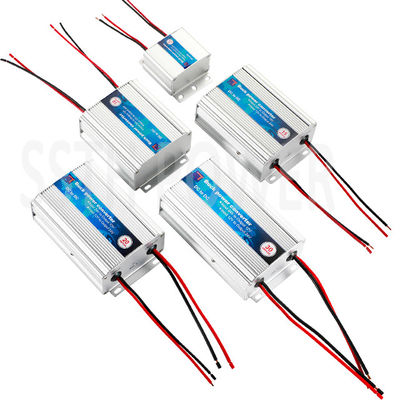

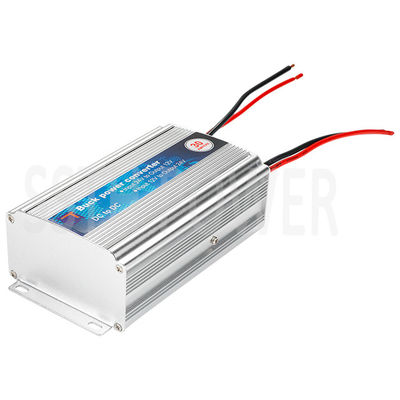

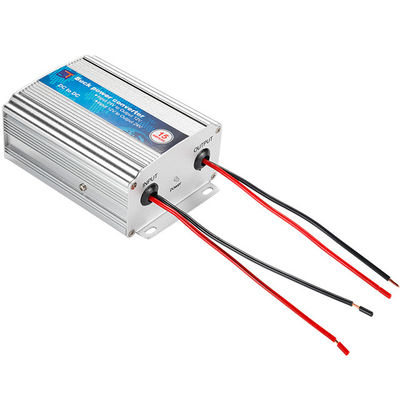

Power Supply Module Step Down Converter DC 24V to DC 12V with Over Temperature Protection 5A 10A 15A 20A 30A 40A 100A

Products Description

5A 10A 15A 20A 30A 40A 100A Power supply module step down negative booster converters dc 24v to dc 12v converter

DC 24V to 12v dc-dc set down booster converter With a wide input voltage range,high efficiency and stability, with input under voltage protection, short circuit protection, overload protection, over temperature protection.

Application:
1.Automotive and LED industry.
2.DC-DC converter.
3.Power supply module
4.Industrial field.
5.Network and telecommunications.

Product Paramenters

Item/Model	5A	10A	15A	20A	30A	40A
Input voltage(V)	16-35	16-35	16-35	16-35	16-35	16-35
Standby current(mA)	<30	<30	<30	<30	<30	<30
Output voltage(V)	12±0.2	12.2±0.2	12.2±0.2	12.3±0.2	12.3±0.2	12.3±0.2
Output current(A)	5A	10A	15A	20A	30A	40A
Efficiency(%)	>95	>95	>95	>94	>94	>94
Temperature℃	-30~+50	-30~+50	-30~+50	-30~+50	-30~+50	-20~+45
