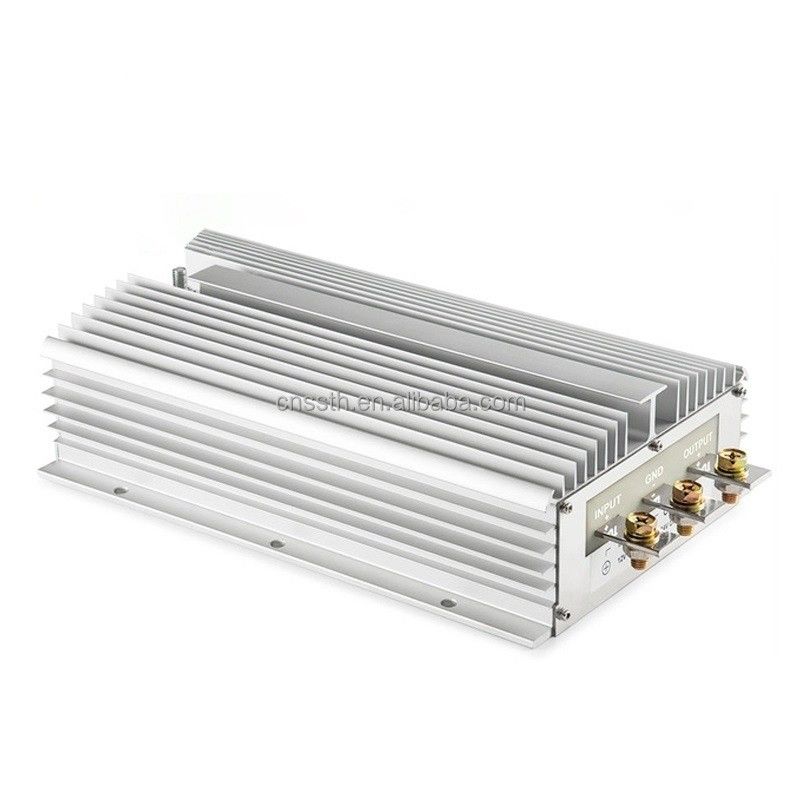

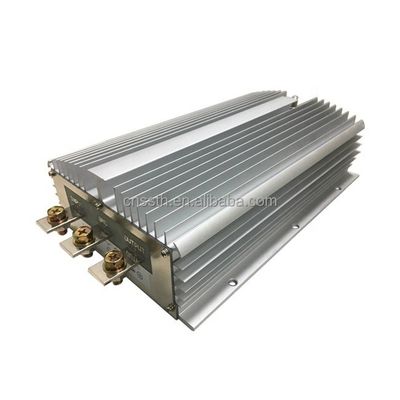

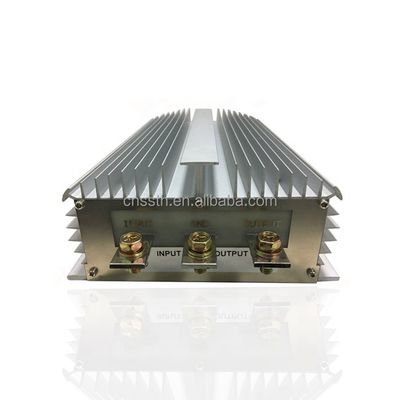

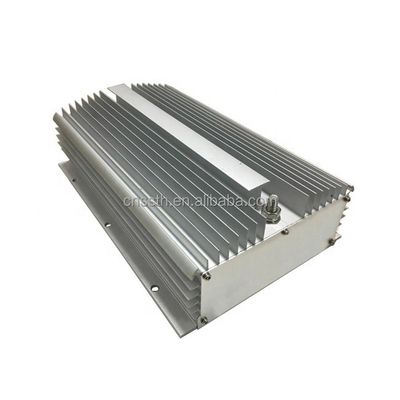

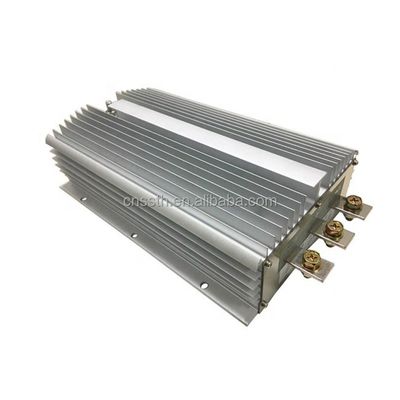

100A 2400W 12VDC To 24VDC Converter For Network SDK Single Output

Name: 100A 2400W 12VDC To 24VDC Converter For Network SDK Single Output
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: 2400W
Price: 1.00 USD
Availability: InStock

Brand Name:	SZSSTH
Model Number:	2400W
Price:	CN¥2,692.04/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Network:

SDK, Nfc

Type:

DC/AC Inverters

Output Type:

Single

Output Current:

100A

Size:

300*198*80mm

Weight:

6.5 KG

Product Name:

12vdc To 24vdc 100a Dc To Dc Converter 2400W

Input Voltage:

12Vdc

Output Voltage:

24Vdc

Waterproof:

IP68

Protection:

Overload/over-current,etc.

Efficiency:

96%

Application:

LED Strp/Motor/truck

Advantage:

Ultra Compact Size, Light Weight , High Reliability

Color:

Silver

Customized Support:

Software Reengineering

Certificate:

CE, ROHS

Highlight:

2400W 12VDC to 24VDC Converter

100A 12VDC to 24VDC Converter

Product Description

100A Output Current 2400W Full Power Boost Voltage Step Regulator 12VDC to 24VDC DC to DC Converter for Network SDK

Products Description

Factory directly sale high power 2400Watt boost voltage step regulator 12vdc to 24vdc 100a dc to dc converter 2400W

Feature:

> Full power, stable voltage & current output.
> Wide input voltage range.
> Waterproof & anti-shock protection, Ultra compact size, light weight.
> Industry grade product 12v to 24v dc converter 100a, efficiency up to 96%.
> Die-cast aluminum shell, epoxy potting.
> Non-Isolated Module.
> 12 months warranty.

Product Paramenters

Product Name	2400W dc 12v to 24v boost voltage regulator
Input rated voltage	12V DC
Input voltage range	10-15V DC
Conversion Efficiency	96%
Output voltage	24V DC
Output current	100 Amps
Output rated power	2400 Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	30019880mm
N. Weight	6.5kg
Cooling way	Free air convection

Details Images

Recommend Products

Company Profile

Our service

1. Supply OEM & ODM service. Support customer's logo & brand printing. 2. Keep you get the best & most reasonable prices. 3. Prompt reply to your inquiry: All your questions related to our products will be replied in 24 hrs. 4. Fast delivery time, good after-service. 5. Strictly quality control: 100% QC inspection Before the Shipment. 6. Product guarantee: 12 months, if there is no man-made problem we’ll replace or repair it for you freely.
