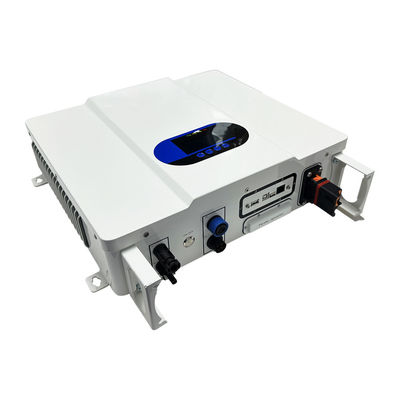

All In One Hybrid Solar Inverter 5kw High Efficiency 220vac 230vac MPPT Parallel 48volt

Name: All In One Hybrid Solar Inverter 5kw High Efficiency 220vac 230vac MPPT Parallel 48volt
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SUF5000S4A1
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: SUF5000S4A1

Payment & Shipping Terms

Price: CN¥1,747.07/pieces 1-99 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                hybrid solar inverter 48volt, MPPT Parallel  hybrid solar inverter, 5kw  solar inverter High Efficiency


Input Voltage:	48V	Output Voltage:	220V 230V
Output Current:	Load	Output Frequency:	50Hz/60Hz
Output Type:	Single	Size:	300450110.5mm
Type:	DC/AC Inverters	Inverter Efficiency:	93%
Weight:	8kg	Product Name:	5.5KW Hybrid Solar Inverter
Inverter Type:	Hybrid Off Grid Solar Inverter	Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)	Battery Type:	Lead Acid \ Lithium
Protection:	Overload	Rated Power:	5.5KW
AC Voltage:	230VAC	Display:	LCD Display
Max PV Voltage:	500V	Certificate:	CE, ROHS
Warranty:	1 Year

Input Voltage:	48V
Output Voltage:	220V 230V
Output Current:	Load
Output Frequency:	50Hz/60Hz
Output Type:	Single
Size:	300450110.5mm
Type:	DC/AC Inverters
Inverter Efficiency:	93%
Weight:	8kg
Product Name:	5.5KW Hybrid Solar Inverter
Inverter Type:	Hybrid Off Grid Solar Inverter
Controller Type:	MPPT Solar Controller
Communication:	WiFi/GPRS(Optional)
Battery Type:	Lead Acid \ Lithium
Protection:	Overload
Rated Power:	5.5KW
AC Voltage:	230VAC
Display:	LCD Display
Max PV Voltage:	500V
Certificate:	CE, ROHS
Warranty:	1 Year

All In One Hybrid Solar Inverter 5kw High Efficiency 220vac 230vac MPPT Parallel 48volt

All In One 5kw 5000w High Efficiency 220vac 230vac MPPT Parallel Inverter 48volt Hybrid Solar Inverter Converters

Products Description

Product Features

Product Features
1. Pure sine wave solarinverter

2. Built-in40AMPPT solar charger

3. PVinput voltage range 20~150VDC (for 1000W),30~150VDC(for 1500W)

4. Built-in anti-dust kit for harsh environment

5. Smart battery charge design to optimize battery lifemeet rich customizeddemands

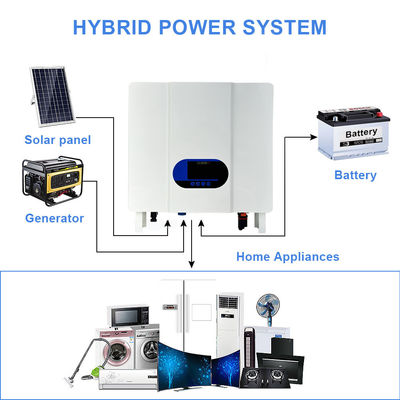

6. Solar energy is provided directly to the load first

	SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
		6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED

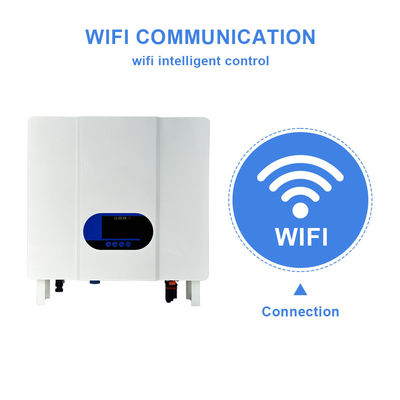

Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (WHD mm)	300450110.5	300450110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]
Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes
